Product Description

Borehole Geophone 3C Geophones for borehole tomography

Three Component Geophones

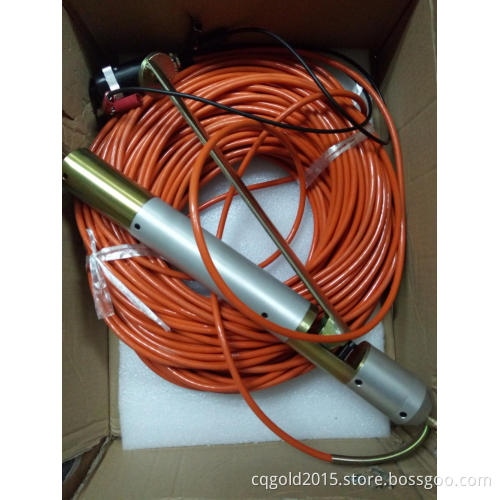

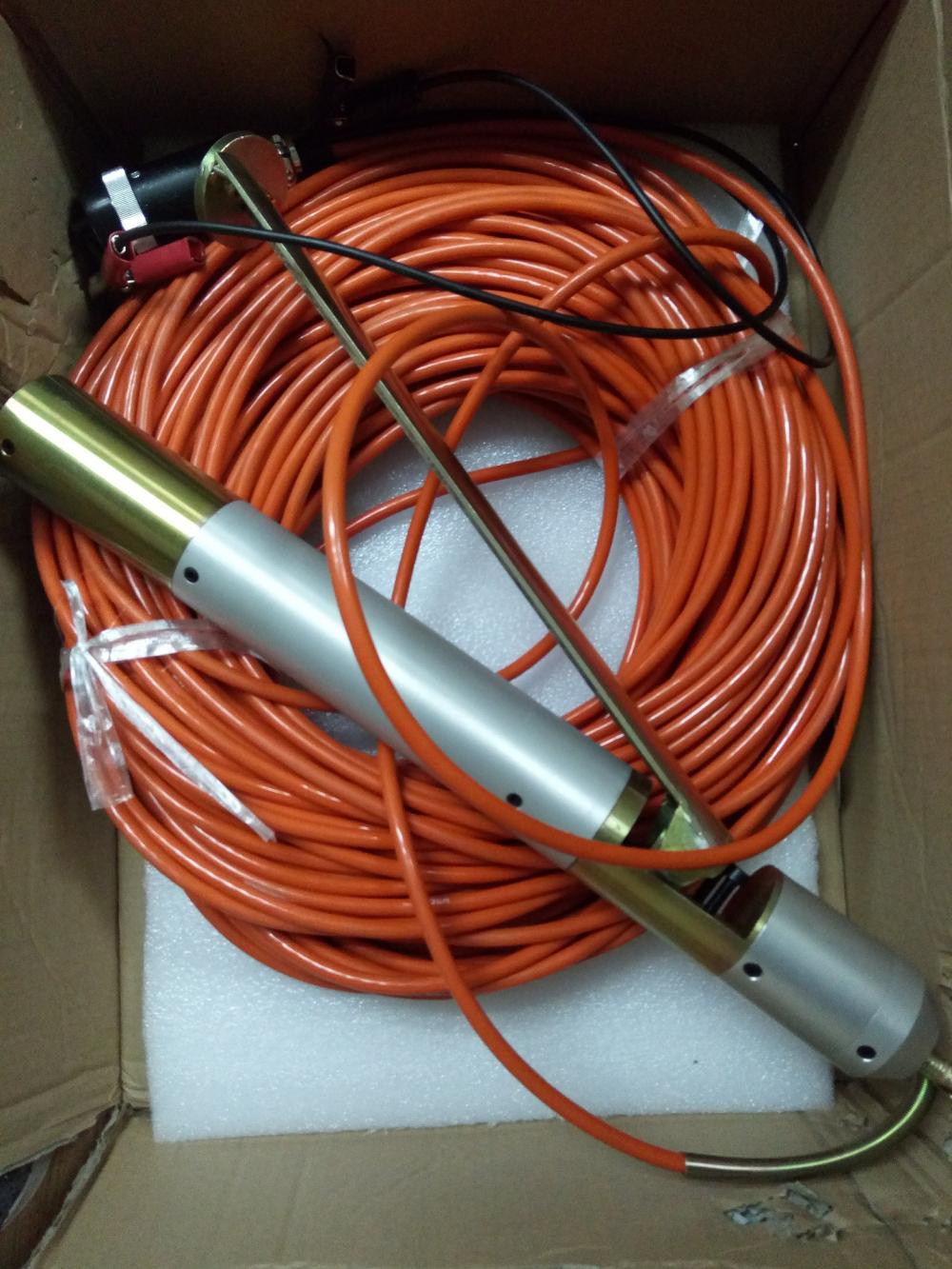

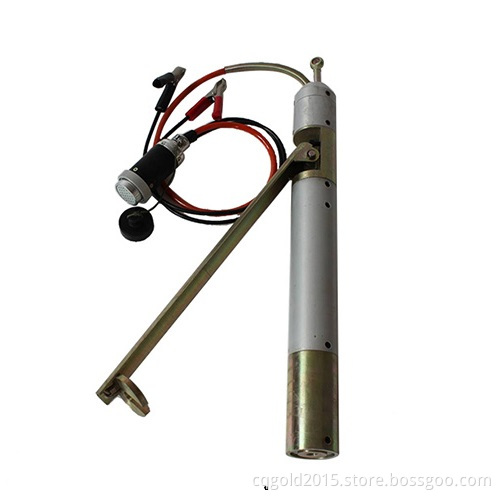

The digital borehole geophone used to receive P- and S-waves in dry and water filled boreholes. The borehole geophone consists of a downhole probe with a tri-axial geophone sensor and a surface communication unit connected to the USB port of a laptop. . The borehole geophone is designed to run on a winch equipped with a 4-conductor cable and a Gearhart Owen cable head. The geophone is coupled to the borehole wall by a mechanical clamping system (motor-driven arm). A magnetic compass is used to get the sensor orientation in the borehole. Seismic data are stored in SEG2 format by the acquisition software. A seismograph is not required.

Model	GDJ-DJ	GDJ-JG	GDJ-JF
	Electromagnetic borehole geophone series	Piston type borehole geohphone series	Non-adjacent borehole geohphone series
Frequency (Hz)	4HZ-100HZ optional	4HZ-100HZ optional	4HZ-100HZ optional
Working Mini Diameter (mm)	Φ70-φ120	Φ50-φ110
Working Temperature	25~55	25~55	25~55
Diameter(mm)	φ55	φ50	φ45
Height (mm)	465	500	300
Weight (kg)	60m-10kg, 120m-14kg	60m-12kg,120m-17kg	60m-60kg,120m-10kg
