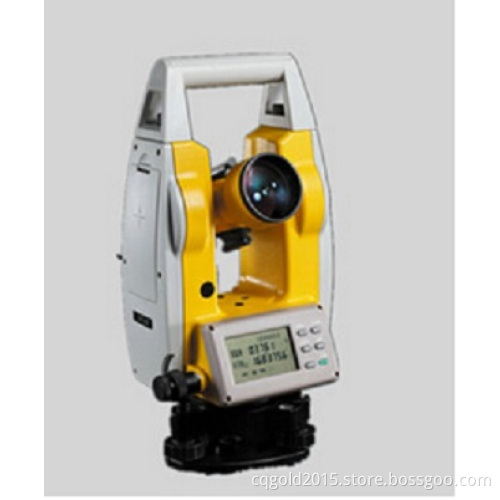

Hi-target DT-02/DT-02L Theodolite
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 100 pcs |
| Supply Ability: | 1000 pcs per month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | EXW |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description
|
||
Angle Measurement
Accuracy: 2``
Reading system: Absolute encoding
Minimum reading: 1`` /5``/10``/20``(Selectable)
Diameter of circle (VHz): 79mm
Telescope
Image: Erect
Magnification: 30x
Tube length: 150mm
Objective lens: 45mm
Field of view: 1°20′
Resolving power: 4``
Minimum focusing distance: 2m
Stadia ratio: 100
Stadia constant: 0
Laser Pointer (DT-02L Only)
Method: Focusing
Wavelength/Power: 635nm/1mW
Laser class: Class II
Laser range: 200m(day time)
Spot size: 5mm/100m
Coaxial: 5mm/70m
Display
LCD display type: Dual side back-lit LCD
Data Interface
Serial communication: RS-232
Illumination
Display: Yes
Reticle: Yes
Compensator
Tilt sensor: Liquid-electric vertical detection
Compensating range: ±3′
Accuracy:1`
Laser Plummet
Accuracy: 1mm/1.5m
Level Sensitivity
Plate level: 30``/2mm
Circular level: 8`/2mm
Power Supply
Battery type: RechargeableNi-H battery
Operating time: 10 hours
Weight
Weight: 4.6kg
Environmental
Operating temperature: -20℃~﹢50℃
Water & dust protection: IP54
