V60 GNSS RTK SYSTEM

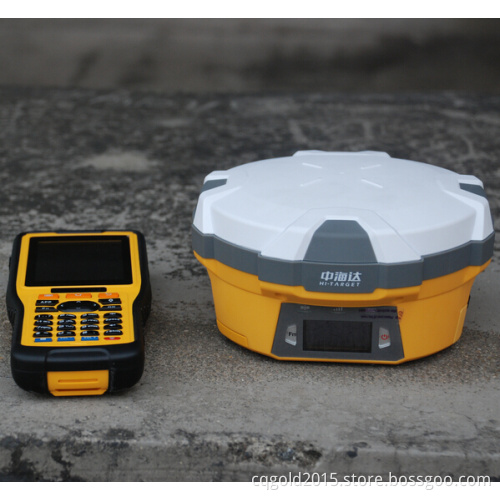

The V60 is a more compact-design and higher-performance GNSS RTK system, besides its rugged design to resist impact and vibration. It has industrial OLED display screen on its front control panel to show all information and status of the work. With the smart speaker inside the receiver, the DIY guiding voice can be customized in any language, even dialect! 1GB internal storage plus 8GB Micro SD card memory is standard, the V60 supports up to 32GB extension of memory. Be fully compatible with other GNSS RTK receivers from the world market. The static data can be saved directly in RINEX format.

System Features:

Linux Operation System

ARM 9G20 400MHz CPU, embedded Linux OS to support faster data transmission.

Intelligent Operation

Equipped with smart speaker guiding during the whole operation. Voice assistance can help you master V60 operation quickly. Language can be customized.

Industrial LED display screen on its front control panel to show all information and status of the work.

Many one-button operations make your work easily. Base setup by one button can choose base coordinate from base list automatically.

Automatic recording system log makes receiver diagnosis easy.

RINEX Storage

The static data can be saved directly in RINEX format. The V60 is fully compatible with other brands` receivers.

Quick Upgrade

Just copy the updated firmware to the V60, then restart to finish the upgrade in a few seconds.

Multi Constellation Tracking

220 tracking channels.

Supports GPS, GLONASS, GALILEO, BDS, SBAS.

Built-in NGS Approved Antenna.

High Power Transceiver UHF Radio

The transceiver UHF radio enables the working mode switchable between base and rover.

5 watts (Max.) HI-TARGET internal UHF radio and 2 watts (Max.)Pacific Crest micro XDL internal UHF radio are optional

Pacific Crest TrimTalk© internal UHF radio is compatible with other RTK.

Seamlessly Operation in CORS System

Built-in GPRS/GSM/3G module makes V60 work perfectly with network RTK positioning.

Long-life Battery

Powered by 5000mAh Li-Ion battery.

Static working time 13 - 15 hours

RTK Rover(UHF/GPRS/3G) working time 10 - 12 hours

RTK Base working time 8 - 10 hours

Rugged Design, IP67

IP67 dust/water protection.

Withstands 3 meters natural fall onto concrete.

Rapidly track and perfectly avoid or lessen obstruction and multipath effect to ensure superior positioning capability.

Technical parameters:

MEASUREMENTS

• 220 Channels

• Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology

• High precision multiple correlator for GNSS pseudo range measurements

• Unfiltered, unsmoothed pseudo range measurements data for low noise, low multipath error, low time domain correlation and high dynamic response

• Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth

• Signal-to-Noise ratios reported in dB-Hz

• Proven Pacific Crest low elevation tracking technology

Satellite signals tracked simultaneously

GPS: Simultaneous L1C/A, L2C, L2E, L5

GLONASS: Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P

SBAS: Simultaneous L1 C/A, L5

Galileo: Simultaneous L1 BOC, E5A, E5B, E5AltBOC

BDS/Compass: B1, B2

QZSS: L1 C/A, L1 SAIF, L2C, L5

POSITIONING PERFORMANCE

Static and Fast Static GNSS surveying

Horizontal: 2.5mm+0.5ppm RMS

Vertical: 5mm+0.5ppm RMS

(PPK / Stop & Go) GNSS surveying

Horizontal: 1cm+1ppm RMS

Vertical: 2.5cm+1ppm RMS

Initialization time: typically 10 minutes for base while 5 minutes for rover

Initialization reliability: typically > 99.9%

RTK surveying

Horizontal: 8mm+1ppm RMS

Vertical: 15mm+1ppm RMS

Initialization time: typically < 8 seconds

Initialization reliability: typically > 99.9%

Code Differential GNSS positioning

Horizontal: 25cm+1ppm RMS

Vertical: 50cm+1ppm RMS

SBAS: 0.50m Horizontal, 0.85m Vertical

HARDWARE

Physical

Dimensions (W x H): 18.20cm x 9.80cm (7.17 in x 3.86 in)

Weight: 1.25kg (2.76lb) without internal battery

Operating temperature: -45℃ to +65℃ (-49℉ to +149℉)

Storage temperature: -55℃ to +85℃ (-67℉ to +185℉)

Humidity: 100%, considering

Water/dustproof: IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).

Shock and Vibration: Designed to survive a 3m (9.84ft) natural fall onto concrete.

Electrical

Power 6V to 28V DC external power input

Power consumption ≤3.5W

Automatic Switching between internal power and external power

Rechargeable, removable 7.4V, 5000mAh Lithium-Ion battery in internal battery compartment

Internal battery life

Static 13 - 15 hours

RTK Rover (UHF/GPRS/3G) 10 - 12 hours

RTK Base 8 - 10 hours

I/O interface

1 x Bluetooth

1 x standard USB2.0 port

1 x TNC UHF connector

2 x RS232 serial port

2 x DC power input (8-pin & 5-pin)

1 x Micro SD card port

COMMUNICATION AND DATA STORAGE

3G Communication

Fully integrated, fully sealed internal 3G, compatible with GPRS

Network RTK (via CORS) range 20-50km

HI-TARGET internal UHF radio (standard)

Frequency: 450~470MHz with 116 channels

Transmitting Power: 1W, 2W, 5W adjustable

Transmitting Speed: 9.6Kbps, 19.2Kbps

Working Range: 5km typical, 8~10km optimal

Pacific Crest internal UHF radio(Optional)

Frequency: 403~473 MHz

Transmitting Power: 0.5W, 2W adjustable

Transmitting Speed: Up to 19.2Kbps

Support most of radio communication protocol

Working Range: 3~5km typical, 8~10km optimal

HI-TARGET External UHF radio (standard)

Frequency: 460 MHz with 116 channels

Transmitting Power: 5W, 10W, 20W, 30W adjustable

Transmitting Speed: Up to 19.2Kbps

Working Range: 8~10km typical, 15~20km optimal

Pacific Crest ADL Vantage Pro External UHF radio(Optional)

Frequency: 390~430 MHz or 430~470 MHz

Transmitting Power: 4W to 35W adjustable

Transmitting Speed: Up to 19.2Kbps

Support most of radio communication protocol

Working Range: 8~10km typical, 15~20km optimal

Support other external communication device

For example, external GSM modem.

Data storage

1GB Internal storage+ 8GB Internal Micro SD Card memory (Support up to 32GB extension)

Record GNS and Rinex format simultaneously

Data formats

(1Hz positioning output, up to 50 Hz - depends on installed option)

CMR: sCMRx, CMR, CMR+ input and output

RTCM: RTCM 2.1, 2.2, 2.3, 3.0, 3.1, 3.2 input and output

Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS

Navigation outputs Binary: GSOF

1 Pulse Per Second Output
