HI TARGET V60 GPS RTK with TNC UHF connector and Micro SD card port MADE IN CHINA
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100 pcs |
| Supply Ability: | 1000 pcs per month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |

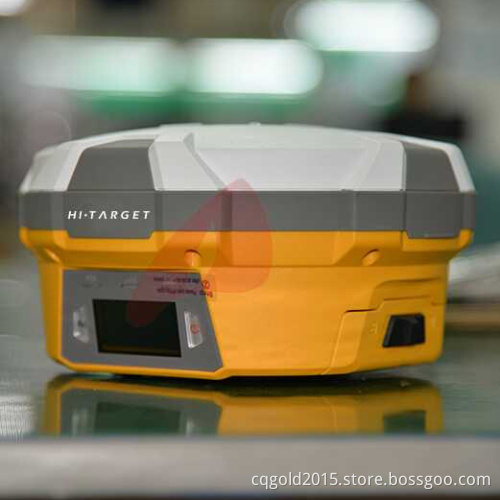

The V60 is a more compact-design and higher-performance GNSS RTK system, beside its rugged design to resist impact and vibration.
The V60 has industrial OLED display screen on its front control panel to show all information and status of the work.With the smart speaker inside the receiver, the DIY guiding voice can be customized in any language,even dialect!
1GB internal storage plus 8GB Micro SD card memory is standard, the V60 supports up to 32GB extension of memory.
The V60 is fully compatible with other GNSS RTK receivers from the world market.The static data can be saved directly in RINEX format.
KEY FEATURES
Linux oparation system ARM 9G20 400MHz CPU,embedded Linux OS to support faster data transmission.
RINEX Storage
The static data can be saved directly in RINEX format.The V60 is fully compatible with other brands`rceivers.
Quick Upgrade
Just copy the updated firmware to the V60, then restart to finish the upgrade in a few seconds.
Fully Automated Operation
The V60 is equipped with a smart speaker,which guides the user during operation. The guiding voice can be simply made in any language,even dialect!All ist functionalities are designed to make suvery jobs to be done conveniently,such as auto base setup by buttons, the rover can get fix solution once it is turned on.No need to spend time setting the parameters for every single operation.
Multi Constellation Tracking
220 channels. The V60 is fully compatible with GNSS constellations to track GLONASS,GALILEO,BDS,SBAS as well asGPS.
High Power Transceiver UHF Radio.The transceiver UHF radio enables the V60 working mode to be switchable between baseand rover in the same receiver.5watts(Max.) HITARGET internal UHF radio or 2 watts(Max.)Pacific Crest internal UHF radio optional to build in the 60.5 watts transceiver UHF radio isan excellent choice for UHF RTK operation. On the other hand, 2 watts transceiver UHF radio is to be used to have the V60 work with other brand`s receiver having UHF radiowhich support link protocols such as transparent EOT/ EOC/FST,,Packet-switched,Trimtalk,TrimMark,Satel.
Seamlessly Operation in CORS System
With internal 3G modem, the V60 works perfectly with corrections from CORS networks in any version of CMR,RTCM without needing to interpret the message but reading seamlessly.
Long-life Battery
Powered by 5000mAh Li-Ion battery.
Static working time 13-15 hours
RTK Rover(UHF/GPRS/3G) working time 10-12hours
RTK Base working time 8-10 hours
Rugged Design,IP67
The special latching technology on flexible flat
cables ensures trouble-free operation under
impact or vibration. The V60 withstands 3 meters
natural fall onto concrete.
Field Controller and Software
There are optional field controllers and software in the V60 package. The controllers with OS Microsoft Windows Mobile 6.5 are fully compatible with the third party software such as Carlson SurvCE, MicroSurvey FieldGenius,DigiTerra Explorer, Esri Arcpad 10 etc.besides standard field&GIS software made by HI-TRAGET.
HITRAGET complete with WiFi, Bluetooth, and GPRS/3G is completely wireless to connect to any devices, collect data and connect to server simultaneously and seamlessly. The software and controller, which can support Andriod OS are available from HI-Target.
| Performance Specification | ||
| Measurements | 220 channels | |
| Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology | ||
| High precision mulciple correlator for GNSS pesudo range | ||
| Unfiltered,low noice,low multipath error,low time domine correlation and high dynamic respone | ||
| Very low noise GNSS carrier phase measurements with<1mm precision in a 1 Hz bandwidth | ||
| Signal-to-Noise ratio reprted in dB-Ha | ||
| Proven Pacific Crest low elevation travking technology | ||
|
Satellite Singnals Tracked Simultaneously |
GPS: L1C/A,L2C,L2E,L5 | |
| GLONASS: L1C/A,L1P,L2C/A(GLONASS M only),l2p | ||
| SBAS: L1 C/A,L5 | ||
| Galileo: L1 BOC,E5A,E5B,E5ALtBOC | ||
| BDS/Compass: B1,B2 | ||
| QZSS: L1 C/A, L1 SAIF,L2C,L5 | ||
|
Positioning Performance |
Static and Fast Static | Horizonta:l2.5mm+0.5ppm RMS |
| GNSS surveying | Vertica:l5mm+0.5ppm RMS | |
| Post Processing Kinematic | Horizontal:1cm+1ppm RMS | |
| (PPK/Stop&Go) GNSS surveying | Vertical:2.5cm+1ppm RMS | |
| Initialization time:typically 10 minutes | ||
| for base while 5 minutes for rover | ||
| Initialization reliability:typically>99.9% | ||
| Realtime Kinematic(RTK)surveying | Horizontal.8mm+1ppm RMS | |
| Vertical.15mm+1ppm RMS | ||
| Initialization timetypically < 8seconds | ||
| Initialization reliability.typically > 99.9% | ||
| Code Differential GNSS postioning | Horizontal.25cm+1ppm RMS | |
| Vertical.50cm+1ppm RMS | ||
| SABS:0.50m Horizontal, 0.85m Vertical | ||
| Hardware | Physical | Dimensions(W × H):18.20cm×9.80cm(7.17 in.×3.86 in.) |
| Weight:1.25kgs(2.76lbs)without internal battery | ||
| Operating:-45°C to+65°C(-49°F to+149°F) | ||
| Storage temperature.-55°C to+85°C(-67°F to+185°F) | ||
| Humidity:100%,considering | ||
| Water/dustproof.IP67 dustproof,protected from | ||
| temporary immersion to depth of 1 m(3.28ft) | ||
| Shock and Vibration.Designed to survive | ||
| a 3m(9.84ft) nature fall onto contrete. | ||
| Electrical | Power 6V to 28V DC external power input | |
| Power consumption ≤3.5w | ||
| Automatic Switching between internal power and external power | ||
| Rechargeable, removable 7.4V,5000mAh Lithium-Ion | ||
| battery in internal battery compartment | ||
| Internal battery life | Static 13-15 hours | |
| RTK Rover(UHF/GPRS/3G)10-12 hours | ||
| RTK Base 8-10 hours | ||
| I/O interface | 1×Bluetooth | |
| 1×standard USB2.0 port | ||
| 1×TNC UHF connector | ||
| 2×RS232 serial port | ||
| 2×DC power input(8-pin & 5-pin) | ||
| 1×Micro SD card port | ||
|
Communication and data storage |
3G Communication | Fully integrated, fully sealed internal 3G, |
| compatabile with GPRS | ||
| Network RTK(via CORS) range 20-50km | ||
|
HI-TRAGERT internal UHF radio(standard) |
Frequency:450~470MHz with 116 channel | |
| Transmitting Power:1W,2W,5W,adjustable | ||
| Transmitting Speed:9.6Kbps,19.2Kbps | ||
| Working Range:5km typical,8-10km optimal | ||
|
Pacticic Crest XDL Micro internal UHF RADIO |
Frequency:403-473MHz | |
| Transmitting Power:0.5W,2W adjustable | ||
| Transmitting Speed:Up to 19.2Kbps | ||
| Working Range:3-5km typical,8-10km optimal | ||
|
HI-TRAGERT external UHF radio(standard) |
Frequency:460MHz with 116 channels | |
| Transmitting Power:5W,10W,20W,30W adjustable | ||
| Transmitting Speed:Up to 19.2Kbps | ||
| Working Range:8-10km typical,15-20km optimal | ||
|
Pacific Crest ADL vantage Pro External UHF radio |
Frequency:390-430MHz or 430-470MHz | |
| Transmitting Power:4W to 35W adjustable | ||
| Transmitting Speed:Up to 19.2Kbps | ||
| Working Range:8-10km typical,15-20km optimal | ||
|
Support other external communication device |
For example, external GSM moderm. | |
| Data formats | CMR:sCMRx,CMR, CMR+ input and output | |
| RTCM:RTCM2.1 2.2 2.3 3.0 3.1 3.2 input and output | ||
| Navigation outputs ASCII:NMEA-0183 | ||
| GSV,AVR,RMC,HDT,VGK,VHD,ROT,GGK,GGA, | ||
| GSA,ZDA,VTG,GST,PJT,PJK,BPQ,GLL,GRS,GBS | ||
| Navigation outputs Binary:GSOF | ||
| 1 Pules Per Second Output | ||
