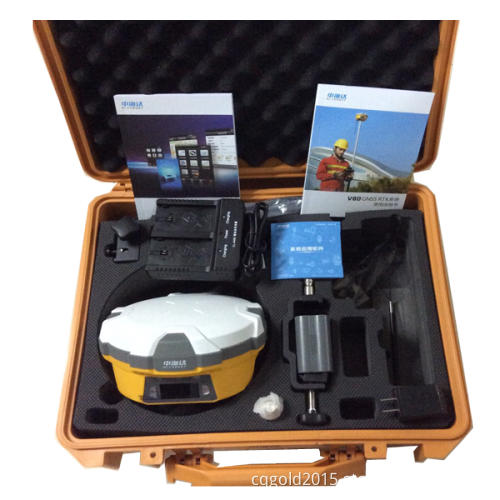

Hi-Target V60 Affiliate All World gps with 5000mAh Li-Ion battery
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100 pcs |
| Supply Ability: | 1000 pcs per month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
Hi-Target V60 multi-functional and supporting Andriod operating system RTK GPS
Multi-satellite & multi-system tracking
Adopts Trimble Maxwell (tm) advanced custom measurement GNSS technology. With the lowest noise GNSS carrier phase measurement,Accuracy within the bandwidth of 1 Hz, and mature Trimble low elevation tracking technology.
|
Performance Specification |
||
|
Measurements |
220 channels |
|
|
Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology |
||
|
High precision multiple collector for GNSS pesudo range |
||
|
Very low noise GNSS carrier phase measurements with<1mm precision in a 1 Hz bandwidth |
||
|
Proven Pacific Crest low elevation tracking technology |
||
|
Satellite Signals Tracked |
GPS: L1C/A, L2C, L2E, L5 |
|
|
GLONASS: L1C/A, L1P, L2C/A (GLONASS M only), L2P |
||
|
SBAS: WAAS, MSAS, ENGOS |
||
|
Galileo: reserve for upgrading |
||
|
BDS: B1, B2 |
||
|
Positioning |
Static and Fast Static |
Horizontal: ± (2.5mm+1x10-6 D) |
|
Vertical: ± (2.5mm+1x10-6 D) |
||
|
Real time Kinematic(RTK)surveying |
Horizontal: ± (10mm+1x10-6 D) |
|
|
Vertical: ± (20mm+1x10-6 D) |
||
|
Initialization time typically < 10seconds |
||
|
Initialization reliability typically > 99.9% |
||
|
Hardware |
Physical |
Dimensions(W × H):18.20cm×9.80cm (7.17 in.×3.86 in.) |
|
Weight:1.25kgs (2.76lbs) without internal battery |
||
|
Operating:-45°C to +65°C (-49°F to +149°F) |
||
|
Storage temperature: -55°C to +85°C (-67°F to +185°F) |
||
|
Humidity:100%, considering |
||
|
Water/dust proof: IP67 dust proof, protected from |
||
|
temporary immersion to depth of 2m |
||
|
Shock and Vibration.Designed to survive |
||
|
a 3m(9.84ft) nature fall onto concrete. |
||
|
Electrical |
Power 6V to 28V DC external power input |
|
|
Power consumption: 2.5w |
||
|
Automatic Switching between internal power and external power |
||
|
Rechargeable, removable 7.4V,5000mAh Lithium-Ion (2 blocks) |
||
|
battery in internal battery compartment |
||
|
Internal battery life |
Static 13-15 hours |
|
|
RTK Rover(UHF/GPRS/3G)11-12 hours under one battery |
||
|
RTK Base 8-10 hours |
||
|
I/O interface |
1×Bluetooth |
|
|
1×standard USB2.0 port |
||
|
2×RS232 serial port |
||
|
2×DC power input(8-pin & 5-pin) |
||
|
1×Micro SD card port for GSM or CDMA |
||
|
Communication |
3G Communication |
Fully integrated, fully sealed internal 3G, |
|
compatible with GPRS, telecom CDMA optional |
||
|
HI-TRAGERT internal |
Frequency: 450~470MHz with 116 channels |
|
|
Transmitting Power:1W, 2W, 5W adjustable |
||
|
Transmitting Speed: 9.6Kbps,19.2Kbps |
||
|
HI-TRAGERT internal importing radio(optional) |
Compatible various RTK data transmission radios like Trimble, Leica |
|
|
Transmitting Power: 0.1W, 1W, 2W adjustable |
||
|
Frequency: 403~473MHz with 32 channels adjustable |
||
|
Transmitting Speed: 9.6Kbps,19.2Kbps |
||
|
HI-TRAGERT external |
Frequency: 450 - 470MHz with 116 channels |
|
|
Transmitting Power: 5W, 10W, 20W, 35W adjustable |
||
|
Transmitting Speed: 9.6Kbps,19.2Kbps |
||
|
Data formats |
sCMRx, CMR, CMR+ input and output |
|
|
RTCM:RTCM2.1, 2.2, 2.3, 3.0, 3.1, 3.2 input and output |
||
|
Navigation outputs -- ASCII:NMEA-0183 |
||
|
Data storage: Memory -- 1G solid-state memory, 8G pluggable |
||
|
Storage card. Record GNS & Rinex format static data |
||
|
GSA,ZDA,VTG,GST,PJT,PJK,BPQ,GLL,GRS,GBS |
||
|
Navigation outputs Binary:Trimble GSOF |
||
|
Positioning output: 1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 50Hz |
||
