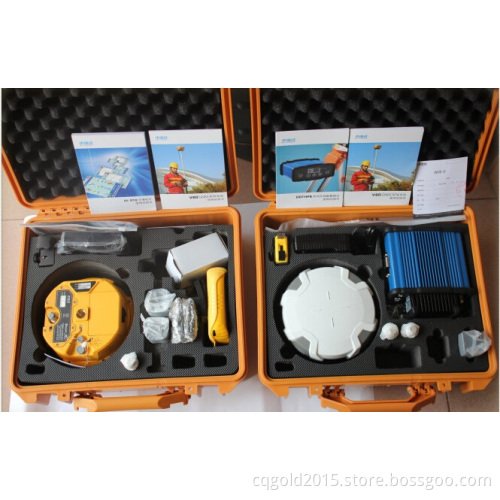

Hi-Target V60 Quick Upgrade GNSS RTK SURVEYING equipment
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100 pcs |
| Supply Ability: | 100 pcs per month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
Hot Sell Hi-target V60 GNSS with 220 Channels for Promotion 50% off
Features:
1. Fully Automated Operation
The V60 is equipped with a smart speaker, which guides the user during operation. The guiding voice can be simply made in any language, even dialect. All its functionalities are designed to make sure jobs to be done conveniently, such as auto base set up by buttons, the rover can get fix solution once it is turned on. No need to spend time setting the parameters for every single operation.
2. Multi Constellation Tracking
220 channels. The V60 is fully compatible with GNSS constellations to track GLONASS, GALILEO, BDS, SBAS as well as GPS.
3. High Power Transceiver UHF Radio
The transceiver UHF radio enables the V60's working mode to be switchable between base and rover in the same receive. 5 watts(Max.) Hi-target internal UHF radio or 2 watts(Max.) Pacific Crest internal UHF radio is optional to build in the V60. 5 watts transceiver UHF radio is an excellent choice for UHF RTK operation. On the other hand, 2 watts transceiver UHF radio is to be used to have the V60 work with other brand`s receiver having UHF radios which support link protocols such as Transparent EOT/EOC/FST, Packet-switched, TrimTalk, TrimMark, Satel.
4. Seamlessly Operation in CORS System
With internal 3G modem, the V60 works perfectly with corrections from CORS networks in any version of CMR, RTCM without needing to interpret the message but reading seamlessly.
5. Long-life Battery
Powered by 5000mAh Li-Ion battery.
Static working time 13-15 hours
RTK Rover(UHF/GPRS/3G) working time 10-12 hours
RTK Base working time 8-10 hours
6. Rugged Design, IP67
The special latching technology on flexible flat cables ensures trouble-free operation under impact or vibration. The V60 withstands 3 meters natural fall onto concrete.
7. Field Controller and Software
There are optional field controller and software in the V60 package. The controllers with OS Microsoft Windows Mobile 6.5 are fully compatible with third party software such as Carlson SurvCE, Micro Survey Field Genius, Digiterra Explorer, Esri Arc Pad 10 etc. besides standard field & GIS software made by Hi-target. Hi-target controller with Wifi, Bluetooth, and GPRS/3G is completely wireless to connect to any device, collect data and connect to server simultaneously and seamlessly. The software and controller, which can support Andriod OS are available from Hi-target.
8. Post-processing Software
Hi-target Geomatics Office (HGO) software provides total GNSS solution with a complete suite of programs to support Hi-target GNSS receivers. Standard Rinex data and Hi-target raw data can be processed flexibly and easily.
9. Linux Operation System
ARM 9G20 400MHz CPU, embedded Linux OS to support faster data transmission.
10. Rinex Storage
The static data can be saved directly in Rinex format. The V60 is fully compatible with other brands' receivers.
11. Quick Upgrade
Just copy the updated firmware to the V60, then restart to finish the upgrade in a few seconds.
Specification:
|
Model |
V60 |
|
Measurement |
|
|
220 Channels |
|
|
Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology |
|
|
High precision multiple correlator for GNSS pseudo range measurements |
|
|
Unfiltered, unsmoothed pseudo range measurements data for low noise, |
|
|
Signal-to-Noise ratios reported in dB-Hz |
|
|
Proven Pacific Crest low elevation tracking technology |
|
|
Satellite Signals Tracked Simultaneously |
|
|
GPS |
Simultaneous L1C/A, L2C, L2E, L5 |
|
GLONASS |
Simultaneous L1C/A, L1P, L2C/A |
|
SBAS |
Simultaneous L1C/A, L5 |
|
Galileo |
Simultaneous L1BOC, E5A, E5B, E5AltBOC |
|
BDS/Compass (optional) |
B1, B2 |
|
QZSS |
L1C/A, L1 SAIF, L2C, L5 |
|
Static and Fast Static GNSS Surveying |
|
|
Horizontal |
2.5mm+0.5ppm RMS |
|
Vertical |
5mm+0.5ppm RMS |
|
Post Processing Kinematic (PPK / Stop & GO) GNSS Surveying |
|
|
Horizontal |
1cm+1ppm RMS |
|
Vertical |
2.5cm+1ppm RMS |
|
Initialization time |
typically 10 minutes for base while 5 minutes for rover |
|
Initialization reliability |
typically > 99.9% |
|
Realtime Kinematic (RTK) Surveying |
|
|
Horizontal |
8mm+1ppm RMS |
|
Vertical |
15mm+1ppm RMS |
|
Initialization time |
typically < 8 seconds |
|
Initialization reliability |
typically > 99.9% |
|
Code Differential GNSS Positioning |
|
|
Horizontal |
25cm+1ppm RMS |
|
Vertical |
50cm+1ppm RMS |
|
SBAS |
0.50m Horizontal, 0.85m Vertical |
|
Electrical |
|
|
Power 6V to 28V DC external power input |
|
|
Power consumption ≤3.5W |
|
|
Rechargeable, removable 7.4V, 5000mAh |
|
|
Internal Battery Life |
|
|
Static |
13-15 hours |
|
RTK Rover (UHF/GPRS/3G) |
10-12 hours |
|
RTK Base |
8-10 hours |
|
I/O Interface |
|
|
1 * Bluetooth |
|
|
1 * standard USB2.0 port |
|
|
1 * TNC UHF connector |
|
|
2 * RS232 serial port |
|
|
2 * DC power input (8-pin & 5-pin) |
|
|
1 * Micro SD card port |
|
|
Hi-target Internal UHF Radio (standard) |
|
|
Frequency |
450~470 MHz with 116 channels |
|
Transmitting power |
1W, 2W, 5W adjustable |
|
Transmitting speed |
9.6Kbps, 19.2Kbps |
|
Working range |
5km typical, 8-10km optimal |
|
Pacific Crest XDL Micro Internal UHF Radio |
|
|
Frequency |
403-473 MHz |
|
Transmitting power |
0.5W, 2W adjustable |
|
Transmitting speed |
up to 19.2Kbps support most of |
|
Working range |
3-5km typical, 8-10km optimal |
|
Hi-target External UHF Radio (standard) |
|
|
Frequency |
460 MHz with 116 channels |
|
Transmitting power |
5W, 10W, 20W, 30W adjustable |
|
Transmitting speed |
up to 19.2Kbps |
|
Working range |
8-10km typical, 15-20km optimal |
|
Pacific Crest ADL Vantage Pro External UHF Radio |
|
|
Frequency |
390-430 MHz or 430-470 MHz |
|
Transmitting power |
4W to 35W adjustable |
|
Transmitting speed |
up to 19.2Kbps support most of |
|
Working range |
8-10km typical, 15-20km optimal |
|
Data Formats |
|
|
CMR |
sCMRx, CMR, CMR+input and output |
|
RTCM |
RTCM 2.1, 2.2, 2.3, 3.0, |
|
Navigation outputs Binary |
GSOF |
|
1 Pulse Per Second Output |
|
|
Other |
|
|
3G Communication |
Fully integrated, fully sealed internal 3G, compatible |
|
Data storage |
1GB Internal Storage + 8GB Internal Micro |
