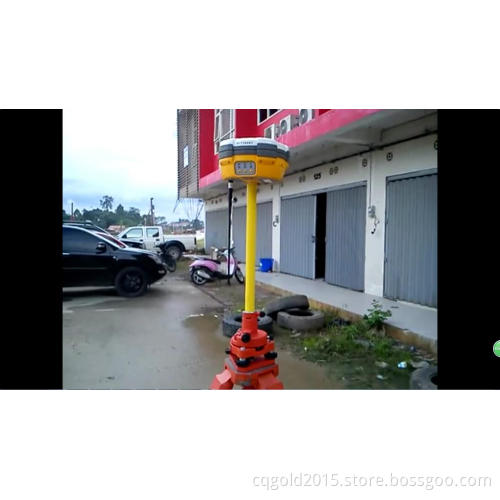

China best selling GNSS RTK GPS RECEIVER V30 HIGH ACCURACY gnss gps

Key Benefits

Built in transceiver UHF radio(Removable)

With transceiver UHF radio ,you can use V30 as rover or base by simply switching the working mode,there 2W Hi-target and 1W PCC UHF radios as options for your application .2W transceiver internal

radio is an excellent solution for UHF RTK operations.1W radio is a good choice to be used for other brand

instruments having Trim Talk compatible radio.

Multi Constellation Tracking

Fully compatible to GPS ,GLONASS,SBAS ,GALILEO satellite constellations available with onboard 220

channels.

Seamless Operation in CORS Networks

Works perfectly with corrections from CORS networks in any versions of CMR or RTCM without

needing to interpret the message but reading seamlessly.

Performance specification

Satellite signals tracked simultaneously:

GPS:L1 C/A,L2C,L2 C/A (for GLONASS M only),L2P

SBAS:WAAS,MSAS,EGNOS

GIOVE-A:L1 BOC,E5A,E5B,E5Ait BOC (optional)

GIOVE-B:L1 CBOC,E5A,E5B,E5A it BOC(optional)

GALILEO:upgrade reserves

Accuracy:

Static and Fast static GNSS Surveying:

Horizontal:2.5mm+1ppm RMS

Vertical :5mm+1ppm RMS

WAAS Differential surveying :

typically<3m

Stop and Go Surveying :

Horizontal :25cm+1ppm RMS

Vertical:50cm+1ppm RMS

Initialization time:typically 10 minutes for base while 5 minutes for rover

Initialization reliability:typically>99.9%

RTK Surveying:

Horizontal:10mm +1ppm RMS

Vertical:20cm+1ppm RMS

Initialization time :typically <10 second

Initialization reliability:typically >99.9%

Physical

Dimensions (wxh)19.5x 10.4cm

Weight :1.3kg (2.86 lb)with internal battery,internal radio,standard UHF antenna

Operation Temperature :-40to+65(-40f to + 149)

Storage Temperature :-40to +75(-40 to +167)

IP67 Anti-shock withstand 3 meters drop

Electrical

Enable to connect DC 6~36V external power

Automatic switching between internal power and external power

2 pcs rechargeable ,removable7.4v,4400mAh Li-ion battery in internal compartment

Operating times on internal battery:

Static:Minimum 13 hours

GPRS:12 hours

2w internal radio transmit option:minimum 6~8 hours

External radio transmit option :8!10 hours

Power consumption :2.5w

Communication and data storage

Data memory: 64M

UHF Radio communication

Compatible with V8,HD 6000 and other Hi-Target products which radio in 460 Mhz

With differential transmit-receive functions and transmit power adjustable among0.1w,1w,2w

The frequency range of radio is 455MHz ~465MH or440MHz ~450 MHz ,with 100 flexible switching channels

External radio with top 19.2 Kbps wireless transmit speed

PCC internal radio (optional )

Compatible with Trimble and Leica

With differential transmit-receive functions and transmit power adjustable among0.1w ,0.5w and 1w

The frequency range of radio is 430MHZ,with 32flexible switching channels,the frequency list can be customizd

With top 19.2 kbps wireless transmit speed

The radio supports below protocol:

Transparent EOT timeout/transparent EOC character /packet switched /trimtalk

450s/TRAMMARK II/IIE/TRIMTALK 3/TT450S /SATEL

External PCC radio(optional )

Input power:DC9~30v

With transmitreceive function,transmit power adjustable and the top transmit power optional between 4w and 35w.The frequency range of radio is 430 MHZ ~470MHZ ,with 32 flexible switching channels,

the frequency list can be customized With top 19.2 kbps wireless transmit speed.The radio support below protocol.Transparent EOT Trimble /transparent EOC character /packet switched/trimtalk 450s/Trimmark II/IIe /TRIMTALK 3/TT450S/SATEL

V30 GNSS RTK SYSTEM

1. Built-in transmit-receive UHF, exchangeable Base and Rover.

2. The radio power is adjustable to be 0.1w, 1w, 2w.

3. 1+X multi-module communication units.

4. PCC Radio module (optional) compatible with Trimble/Leica RTK.

5. Double battery capacity as 4400mAh, 12 hours for RTK operating.

6. The highest performance in waterproof, dustproof and anti-drop.

7. Trimble BD970 mother board, multi-satellite, multi-system kernel.

8. Supper long distance external radio(optional).

9. With the intelligentialized self-diagnosis function

10. Config Multi-function RTK controller iHand1 series. Voice navigation of RTK handheld software.
