Dynamic load testing (or dynamic loading) is a method to assess a pile's bearing capacity by applying a dynamic load to the pile head (a falling mass) while recording acceleration and strain on the pile head.

The procedure is standardized by ASTM D4945-00 Standard Test Method for High Strain Dynamic Testing of Piles.

Field of use

By using the reflected wave method, the device is used to assess the integrity of concrete pile and identify the extent and location of the pile defect. It can be used for testing bored concrete pile and hammer pile. It can also be used for testing the constructions with an exposed top surface such as pillars.

Item Specifications

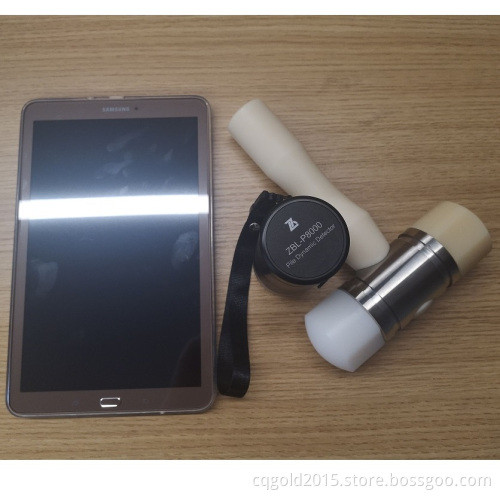

Model ZBL-P8000
Control Mode Android platform
Screen High brightness, TFT color LCD screen
Data Storage 8GB
Operation Mode touch screen
Sentinel magnify (time) 1.2.4.8.16.32 adjustable
A/D resolution (bit) 24 bits A/D
Sampling time intervals(μs) 6.4~1638.4 adjustable
Max length of sampling 2048
Trigger Signal trigger
Noise voltage of the system (mV) 2
Dynamic range(dB) 180
Amplifier frequency range(Hz) 1~10k
Max storage length 2048
Amplitude nonlinear degree 10%
Fixed point magnification 1, 2, 4, 8, 16, 32,64
Error of time indication 1%
Time resolution(us) 6.4
Gain error(dB) 1
Continuous working time(h) 5
Number of channels 1
Interference between the channels no
