High-Effective Outdoor Euro-Docsis&Docsis3.0 Cmts

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing China
Payment Type:	T/T

Product Description

All D3 CMTS series from Jinghong are developed based on DOCSIS3.0 and C-DOCSIS protocols.
There are kinds of product types such as rack mount, outdoor and D-node.
D3 series adopt channel binding technology, for downstream (DS), there are 16 QAM channels
which has 1.1Gbps data rate; for upstream, there are 4 QPSK/QAM channels which could reach
up to 160Mbps. D3's downstream can be configured to data channels or IP QAM channel. For
data port, there are GE port (RJ45) and GE optical port (SFP). With layer 3 routing function and
perfect QoS, they can meet all kinds of working conditions and requirements from different
operators.
Due to D3's high bandwidth, perfect QoS, it is very suitable for IPTV or VOD, such kind of video
service. It is cost effective for cut down cost then, add value for traditional HFC network.

There are three ways to manage D3:
1> CLI after log in via serial port or by telnet;
2> Remote log in embed web NMS;
3> External NMS server based on SNMP protocols which run windows OS.

D3 series can compatible with DOCSIS3.0/2.0 cable modem

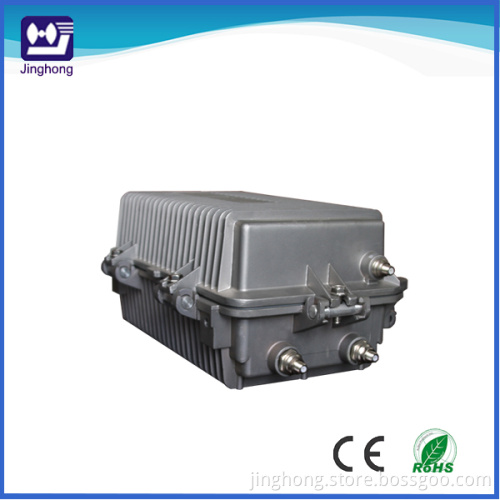

JH-F3416 is the outdoor CMTS of D3 series, it is tailor made for those networks which deploy

CMTS on optical nodes, it can be installed in simple machine room, sharing box even wall

hanging. It has all core D3 functions and high performance, added more RF port in order to

connect current optical equipment.

It is Chassis cooling mode, no fan rain-proof design, mute operation. The data port can connect

upward to Ethernet and EPON. As to RF port, there are 4 TV IN for connecting TV signals from

the optical receiver while other 4 RF OUT for connecting coaxial cable network.

The Outdoor CMTS forward lead the data signal and tv signal mixture from the machine room to

optical node, narrowed the upstream funnel and reduced the noise interference accordingly. It can

rapidly cover and connect all users without reconstructing original optical network structure.
Features
1> Compatible with DOCSIS3.0, C-DOCSIS standardwork with all cable modem based
on DOCSIS, support both EURO DOCSIS and DOCSIS.
2> 16 DS channels bounding, 64/256/1024QAM modulation mode optional. Data rate
could reach up to 1.1Gbps@1024QAM.
3> 4 US channels bounding, could be configured to QPSK, 3-8 grade QAM mode, data rate
could reach up to 160Mbps.
4> Flexible on channels bounding quantity set for operators convenient planning and use of
channel resource.
5> Layer 3 routing functions, support static route, VLAN and DHCP relay agent.
6> There are GE RJ45 port and SFP on WAN port, convenient and flexible.
7> Built-in DHCP/TFTP server, support PPPoE.
8> Load balancing based on quantity of CM either DS or US.
9> Support IPV6, IP multicast functions.
10> QoS based on service flow ensures bandwidth needs for various services.
11> Ensure network transmit safety via various kinds of methods such as BPI+, CM
identification, anti-DOS attack , user isolation and IP source checking.
12> Support US channel spectrum analysis via Web and NMS management
13> Support three management ways: CLI after log in via serial port or by telnet; Remote log
in embed web NMS; External NMS server based on SNMP protocols which run
windows OS.
Specification
Payment and delivery
Items will be shiped within 7 working days after T/T in advance via ups dhl fedex or ems etc.

Warranty
1 year for hardware reparing,5 years for software updating.
