Geographic surveying instrument RTK GNSS
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 10 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 1000set/month |
| Incoterm: | FOB |
| Certificate: | CE,USO |

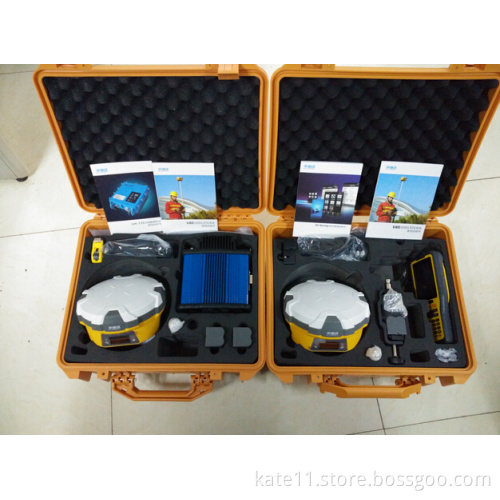

V60 GNSS RTK SYSTEM
1,The V60 is a more compact-design and higher-performance GNSS RTK SYSTEM,besides its rugged design to resist impact and vibration.
2,The V60 has industrial OLED display screen on its front control panel to show all information and status of the work. With the smart speak inside the receiver,the DIY guiding voice can be customized in any language,even dialect!
3,1GB internal storage plus 8GB Micro SD card memory is standard,the V60 supports up to 32GB extension of the memory.
4,The V60 is fully compatible with other GNSS RTK receivers from the world market.The static data can be saved directly in RINEX format.
PERFORMANCE SPECIFICATIONS
MEASUREMENTS
HARDWARE(Physical)
1.220 channels
2.Advanced pacific crest maxwell 6 custom survey GNSS technology.
3.High precision multiple correlator for GNSS pseudo range.
4.Unfiltered,unsmoothed pseudo range measurements data for low
noise,low multipath error,low time domain correlation and high dynamic
response.
5.Very low niose GNSS carrier phase measurements with less than 1mm
precision in a 1Hz bandwidth.
6.Signal-to-Noise ratios reported in dB-Hz. 7.Proven pacific crest low
elevation tracking technology.
Dimensions(W*H)-.18.20CM*9.80CM
Weight-1.25kgs without internal battery
Operating temperature-.-45celcius to +65celcius
Storage temperature-.-55celcius to +85celcius
Humidity-.100%,considering
Water/dustproof-.IP67(dustproof,protected
from temporary immersion to depth of 1m.
Shock&Vibration-.Designed to survive a 3m nature
fall onto concrete.
Electrical
Power 6v to 28v DC
external power input
power consumption less
than 3.5w (3.5w is ok)
Automatic
swithching between internal power&external power rechargable,removable
7.4v,5000mAh Lithium-Ion battery in internal battery compartment.
Satellite signals
tracked simultaneously
GPS-.Simultaneous
L1C/A,L2C,L2E,L5
GLONASS-.Simultaneous
L1C/A,L1P,L2C/A,L2P
SBASS-.Simultaneous
L1C/A,L5
I/O interface
Galileo-.Simultaneous
L1BOC,ESA,E5B,E5AltBOC
1*standard USB 2.0 port
BDS/Compass-.B1,B2
1*TNC UHF connector
QZSS-.L1C/A,L1
SAIF,L2C,L5
2*RS232 serial port
2*DC power input(8-pin&5-pin)
POSITIONING
PERFORMANCE
1*Micro SD card port
Static and fast
static GNSS surveying
Internal UHF radio(Standard)
Horizontal-.2.5MM+0.5PPM RMS
Frequency-.450~470MHz
with 116 channels
Vertical-.5MM+0.5PPM RMS
Transmitting
power-.1w,2w,5w adjustable
Transmitting
speed-.9.6Kbps,19.2Kbps
Post processing kinematic(PPK/Stop&Go)GNSS surveying
Working Range-.5km
typocal,8~10 km,optimal
Horizontal-.1CM+1PPM RMS
Vertical-.2.5CM+1PPM RMS
Extetnal UHF
radio(Standard)
Initialization time-.typically 10 minutes for base whille 5
minutes for rover
Frequency-.450~470MHz with 116 channels
Initialization reliability-.typically more than 99.9%
Transmitting
power-.5w,10w,20w,30w adjustable
Transmitting speed-.up to
19.2Kbps
Code differential
GNSS positioning
Working Range-.8~10km
typocal,15-20km optimal
Horizontal-.25CM+1PPM RMS
Vertical-.50CM+1PPM RMS
SBAS-.0.50M
Horizontal,0.85M Vertical
