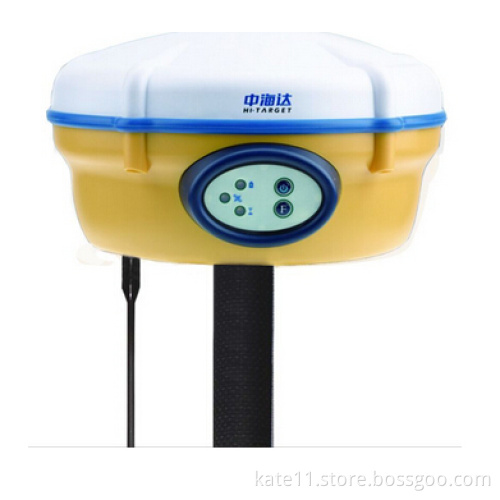

china manufacturer gnss rtk system

Get Latest Price

Payment Type:: T/T, L/C

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000
Supply Ability:	200 set/month
Payment Type:	T/T,L/C
Incoterm:	FOB
Certificate:	CE,ISO
Transportation:	Air

Product Description

PERFORMANCE SPECIFICATIONS

MEASUREMENTS

HARDWARE(Physical)

1.220 channels 2.Advanced pacific crest maxwell 6 custom survey GNSS technology. 3.High precision multiple correlator for GNSS pseudo range. 4.Unfiltered,unsmoothed pseudo range measurements data for low noise,low multipath error,low time domain correlation and high dynamic response. 5.Very low niose GNSS carrier phase measurements with less than 1mm precision in a 1Hz bandwidth. 6.Signal-to-Noise ratios reported in dB-Hz. 7.Proven pacific crest low elevation tracking technology.

Dimensions(W*H)-.18.20CM*9.80CM

Weight-1.25kgs without internal battery

Operating temperature-.-45celcius to +65celcius

Storage temperature-.-55celcius to +85celcius

Humidity-.100%,considering

Water/dustproof-.IP67(dustproof,protected from temporary immersion to depth of 1m.

Shock&Vibration-.Designed to survive a 3m nature fall onto concrete.

Electrical

Power 6v to 28v DC external power input

power consumption less than 3.5w (3.5w is ok)

Automatic swithching between internal power&external power rechargable,removable 7.4v,5000mAh Lithium-Ion battery in internal battery compartment.

Satellite signals tracked simultaneously

GPS-.Simultaneous L1C/A,L2C,L2E,L5

GLONASS-.Simultaneous L1C/A,L1P,L2C/A,L2P

SBASS-.Simultaneous L1C/A,L5

I/O interface

Galileo-.Simultaneous L1BOC,ESA,E5B,E5AltBOC

1*standard USB 2.0 port

BDS/Compass-.B1,B2

1*TNC UHF connector

QZSS-.L1C/A,L1 SAIF,L2C,L5

2*RS232 serial port

2*DC power input(8-pin&5-pin)

POSITIONING PERFORMANCE

1*Micro SD card port

Static and fast static GNSS surveying

Internal UHF radio(Standard)

Horizontal-.2.5MM+0.5PPM RMS

Frequency-.450~470MHz with 116 channels

Vertical-.5MM+0.5PPM RMS

Transmitting power-.1w,2w,5w adjustable

Transmitting speed-.9.6Kbps,19.2Kbps

Post processing kinematic(PPK/Stop&Go)GNSS surveying

Working Range-.5km typocal,8~10 km,optimal

Horizontal-.1CM+1PPM RMS

Vertical-.2.5CM+1PPM RMS

Extetnal UHF radio(Standard)

Initialization time-.typically 10 minutes for base whille 5 minutes for rover

Frequency-.450~470MHz with 116 channels

Initialization reliability-.typically more than 99.9%

Transmitting power-.5w,10w,20w,30w adjustable

Transmitting speed-.up to 19.2Kbps

Code differential GNSS positioning

Working Range-.8~10km typocal,15-20km optimal

Horizontal-.25CM+1PPM RMS

Vertical-.50CM+1PPM RMS

SBAS-.0.50M Horizontal,0.85M Vertical
