3 wheeled motorcycles rear axle mainly speed reducer assembly with 180mm diameter seam allowance

Specifications 1.the speed reducer assembly is 155mm seam allowance

2.2 speed high and low,

3.Quantity production and rigorous inspection,

Description	Tricycle Main Reducer Assembly
Ratio	High speed 2.53;Low speed 6.32
Power input spline	20*14*4
Gear material	20CrMnTi
Gear modulus	4mm
Packaging	Carton, wooden case etc.
Payment terms	T/T, L/C, D/P etc.
Incoterm	FOB, CIF etc.
Spline	Involute/rectangle
Speed	2 speed
SA	155mm

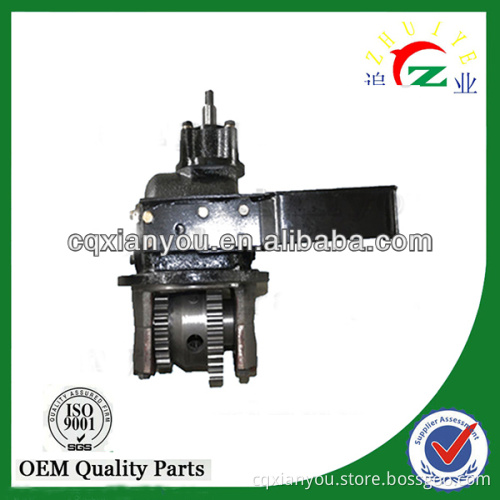

Tricycle Main Reducer Assembly is one which combines a main reducer with a transmission , novel and compact structure and reliable in performance. Tricycle Main Reducer Assembly can be installed to three-wheeled motorcycle vehicle, etc with the central drive axle seam allowance of155mm . Gearbox is divided into high-speed and low-speed two speed, of which high speed can make the car run fast when under light load and low speed provides the car with enough power when under overload. Therefore, vehicle can run under any loads and road conditions.
