Chinese cheap tricycle rear axle

Specifications 1.Chinese cheap tricycle rear axle

2.It has 2 speed ,high and low

3.Good quality and competive price

4.Best service

  Product Description

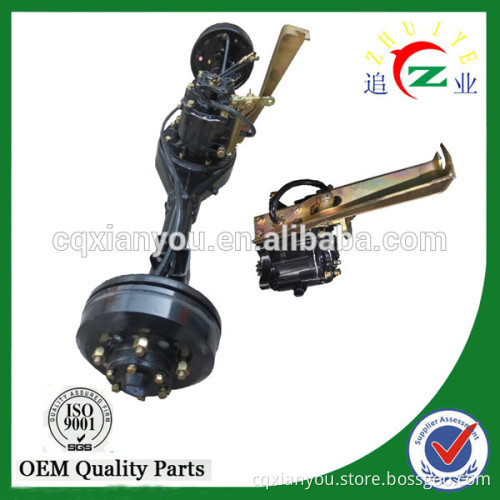

Chinese cheap tricycle  rear axle
Structure	Full /semi floating
Bearing	32009 tapered bearing
Brake	oil / mechnical brake
Length of rear axle	700-1210mm(From hub to hub)
Ratio	4.1 6.4
Input spline	20*17*4
Material	60*4(GB/T8162-1999 seamless steel tube)
Rim lock bolt	5-M14*1.5 right-and-left threaded
Rear axle tube	60mm
Speed	2 speed
Wheel hub diameter	220mm
PCD	5*140
Offset	120mm
Delivery	Within 30days
Load capacity	< 2T
Net weight	50kg
Fit engine	from 50cc--400cc



Chinese cheap tricycle  rear axle   1.Chinese cheap tricycle  rear axle  is different from other similar rear axles, because installed     the same function synchronizer as the automobile one.  2.Therefore, it’s more reliable in driving with less bumping so that the life of the gear and box    body is longer. However, when the vehicle used, load should be warned.

  Diiferent angle for rear axle         Advantages of this  floating rear axle assembly <1> the good  bearing capacity <2> easily installing <3>reduce power consumption <4> Flexible speed change and strong Traction power   other related rear axle assembly for your reference                    <1>semi-floating 180mm diameter of                      <2>   2+1shafts full-floating rear axle assembly       rear axle  assembly with Variable       speed   Advantage:1> High performance and reasonable                Advantage   1>   can realize reverse function and variable                                    price                                                                                           speed function together.                      2> high bearing with simple installing                                       2>   no need reverse device to install in tricycle                        3>no need transimiision and change torque                                    because the reverse function in rear axle                                                                        4> thick  rear axle shell tube and good material                       3> change gear flexible.           Packaging & Shipping Packaging details A. anti-rust paper, carton, and wooden case    B. custom packaging according to your specifications                   Company Information      our company

Our Company Name	Chongqing Xianyou Technology Development Co., Led.
Established Time	founded in 1998
Our Company Character	specialized in machinery research, development and manufacture , high-tech Enterprise
Our Factory Product	all kinds of gears, gear box, rear axle for tricycle
Our Award	in 2002-the gold medal of China quality “Wan Li Xing”
	in 2009-obtained the national high and new technology enterprise
	certificates issued by ministry of science and technology
	in 2008-four product standards and Chongqing key new product and excellent key new product
	certificate by Chongqing two different authority Official institutions
Patents	18 national patents
Hardware Facilities	We have 2 assembly workshop, 2 machining workshop, a district- level R&D center, 3 semi-automatic assembly lines, 60 sets of spiral bevel gear milling machine, 20 sets of Case processing.             Machine, 8 sets automatic welding machine and 100 sets CNC machining equipment
Production capacity	reverse gear annual output can reach 700,000 sets; rear axle can reach 81,000 sets; gear box can reach 827,000 sets.
