tricycle floating 2+1 oil shake rear axle assembly without using reverse gear box

Specifications 1.High low gear and reverse operation in one transmission box

2.climbing ability is strong.

3.good quality

4.full floating

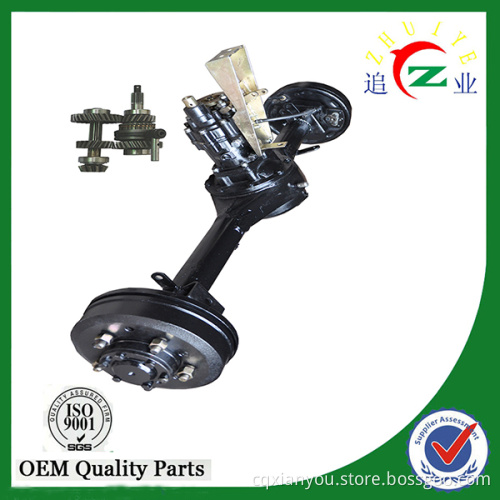

  Specification:       1.Picture this  rear axle assembly                     2. Some parameter of  floating rear axle assembly

Structure form	Full floating
Load bearing type	6009RSRolling bearing or 32009 Taper bearing
Brake specification form	220 Hydraulic brake or 220 Mechanical brake
The rear axle bridge shell	adopt stamping.welding and Bridge tube adopts 60*4*(GB/T8162-1999)mm seamless steel tube
Rear axle length specifications	Transverse distance of rear axle on both sides of the brake is 1180mm or other
gear ratio of active and driven gear	The plain type:High speed 8/36*19/27,low speed:9/34*19/27
	The mountain type:High speed 8/36*24/22,low speed:8/36*17/29
power output	flange end face's distance to the center of the bridge pipe is 234mm
Locking bolt	5-M14*1.5(Positive and negative screw thread),Center distance 140mm

       3.Advantages of this  floating rear axle assembly   <1> the good  bearing capacity   <2> easily installing   <3>reduce power consumption   <4> Flexible speed change and strong Traction power   <5> can realize  reversing and  variable speed togerther 4. other related rear axle assembly for your reference                   <1> 180mm diameter Strength                       <2> Ordinary simple rear axle assembly          rear axle assembly                                                          Advantage:1> installing easily and no need                        1> aslo no need transmission device for trikes and                           transmission device for trike                              atv                       2> high bearing ability with thick                        2>  just connection with trasmission shaft and                                    and coarse bridge shell                                        reverse gearbox                       3> cheaper than the rear axle with                    3> price is cheaper than your imaging                         transmission device                       4> can smoothly change torque by                   4> can realize The basic function                          different gears biting                  <3>semi-floating 180mm diameter of                      <4>   2+1shafts full-floating rear axle assembly         rear axle  assembly with Variable         speed     Advantage:1> High performance and reasonable                Advantage   1>   can realize reverse function and variable                                      price                                                                                           speed function together.                        2> high bearing with simple installing                                       2>   no need reverse device to install in tricycle                            3>no need transimiision and change torque                                    because the reverse function in rear axle                                                                          4> thick  rear axle shell tube and good material                       3> change gear flexible.                  <5> spore rear axle assembly                                  <6> same as the pictures at the begining             reduce speed from  the engine .                                                1.the rear axle assembly can bear weight                                                                                                                    2. high climbing ability                                                                                                                3.  our rear axle can reduce power    5.our  factory                                                                           6.our equipment             7.our certificate                 Contact imformation: Name:Catherine Chen QQ:782409613 Company website:  http://cqxianyou.en.alibaba.com/    Welcome  your visit our factory~
