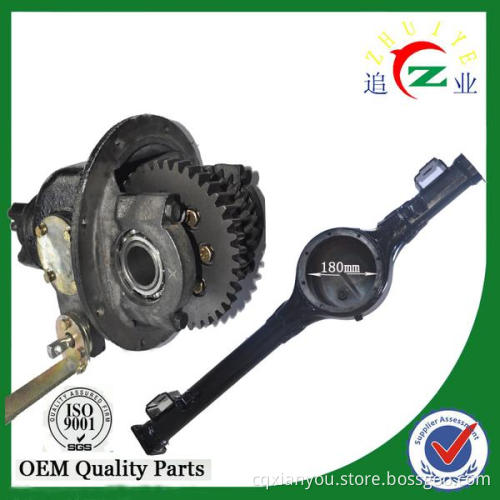

TRICYCLE FRONT AND REAR AXLE with 180mm diameter seam allowance

Specifications 1.the reducer assembly has two speed

2.high climbing ability

3 the reducer can reduce power consumption

4.good material

Specification:   1.Picture as  this  reducer assembly            2. Some parameter of  mainly reducer assembly with 180mm   diameter seam allowance

Description	Tricycle Main Reducer Assembly
Ratio	High speed 2.53;Low speed 6.32
Power input spline	20*14*4
Gear material	20CrMnTi
Gear modulus	4mm
Packaging	Carton, wooden case etc.
Payment terms	T/T, L/C, D/P etc.
Incoterm	FOB, CIF etc.
Spline	Involute/rectangle
Speed	2 speed
SA	180mm

Tricycle Main Reducer Assembly is one which combines a main reducer with a transmission , novel and compact structure and reliable in performance. Tricycle Main Reducer Assembly can be installed to three-wheeled motorcycle vehicle, etc with the central drive axle seam allowance of 180mm . Gearbox is divided into high-speed and low-speed two speed, of which high speed can make the car run fast when under light load and low speed provides the car with enough power when under overload. Therefore, vehicle can run under any loads and road conditions.

<1> the good  bearing capacity <2> easily installing <3>reduce power consumption <4> Flexible speed change and strong Traction power 4. other related rear axle assembly for your reference         <1> 180mm diameter Strength                       <2> Ordinary simple rear axle assembly        rear axle assembly                                                      Advantage:1> installing easily and no need                        1> aslo no need transmission device for trikes and                         transmission device for trike                              atv                     2> high bearing ability with thick                        2>  just connection with trasmission shaft and                                  and coarse bridge shell                                        reverse gearbox                     3> cheaper than the rear axle with                    3> price is cheaper than your imaging                       transmission device                     4> can smoothly change torque by                   4> can realize The basic function                        different gears biting              <3>semi-floating 180mm diameter of                      <4>   2+1shafts full-floating rear axle assembly       rear axle  assembly with Variable       speed   Advantage:1> High performance and reasonable                Advantage   1>   can realize reverse function and variable                                    price                                                                                           speed function together.                      2> high bearing with simple installing                                       2>   no need reverse device to install in tricycle                      3>no need transimiision and change torque                                    because the reverse function in rear axle                                                                        4> thick  rear axle shell tube and good material                       3> change gear flexible.            <5> spore rear axle assembly                                  <6> same as the pictures at the begining         reduce speed from  the engine .                                                1.the rear axle assembly can bear weight                                                                                                                2. high climbing ability                                                                                                              3.  our rear axle can reduce power  5.our  factory                                                                     6.our equipment     7.our certificate         Contact imformation: Name:Catherine Chen QQ:782409613 Company website:  http://cqxianyou.en.alibaba.com/    Welcome  your visit our factory~
