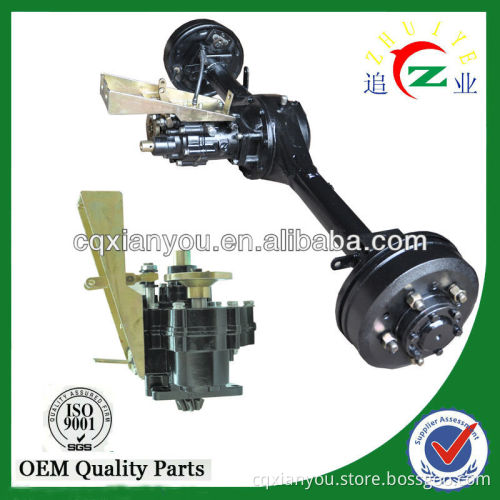

motor tricycle rear axle handbrake rear axle with PCD 114

Get Latest Price

Delivery Time:: 15 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing, China (Mainland)

Product Description

Specifications 1.Hand brake full floating rear axle,

2.Taperd roller bearing,

3.Seamless steel tube,

4.Three speed rear axle.

motor tricycle rear axle handbrake rear axle with PCD 114

Description	motor tricycle rear axle handbrake rear axle with PCD 114
Structure	Full floating
Bearing	32009 tapered bearing
Brake	handbrake
Length of rear axle	1148mm, 1180mm,1270mm etc. (From hub to hub)
Ratio	Forward 3.16 , 6.39 reverse 6.6
Input spline	20174
Material	60*4(GB/T8162-1999 seamless steel tube
Rim lock bolt	5-M14*1.5 right-and-left threaded
Rear axle tube	60mm/65mm/70mm
Speed	3 speed
Incoterm	FOB etc
Offset	120mm, 110mm, 115mm etc.
Delivery	Within 30days
Load capacity	<=2T
Wheel hub diameter	180mm, 200mm, 220mm
Net weight	50kg
Fit engine	from 50cc--400cc

Tricycle handbrake full floating rear axle with three speed, has the characteristic of shifting high-speed, lowspeed and reverse gear in the same transmission, which is a separate transmission assembly attached to rear axle and equipped with control cable bracket. The shaft is connected to the flange, inputting the dynamic and there are two kinds of speeds through different transmission ratio. When at low speed, it will reduce power consumption and increase the vehicle traction and gradeability; when at high speed, it will be able to meet the need of raising the speed of the vehicle. This product manipulated by two handles : when operating one handle, the other one must be neutral.

Tricycle handbrake full floating rear axle with three speed, has the characteristic of shifting high-speed, lowspeed and reverse gear in the same transmission, which is a separate transmission assembly attached

to rear axle and equipped with control cable bracket. The shaft is connected to the flange, inputting the

dynamic and there are two kinds of speeds through different transmission ratio. When at low speed, it

will reduce power consumption and increase the vehicle traction and gradeability; when at high speed, it

will be able to meet the need of raising the speed of the vehicle. This product manipulated by two handles

: when operating one handle, the other one must be neutral.

Packaging details 1. Anti-rust paper, box, carton, wooden case 2.Custom packaging according to your specifications

our shipment we adopt the container to ship by sea. the picture is as below:

OUR COMPANY detail information

Our Company Name	Chongqing Xianyou Technology Development Co., Led.
Established Time	founded in 1998
Our Company Character	specialized in machinery research, development and manufacture , high-tech Enterprise
Our Factory Produce	all kinds of gears, gear box, rear axle for tricycle
Our Award	in 2002-the gold medal of China quality “Wan Li Xing” in 2009-obtained the national high and new technology enterprise certificates issued by ministry of science and technology in 2008-four product standards and Chongqing key new product and excellent key new product certificate by Chongqing two different authority Official institutions
Patents	18 national patents
Hardware Facilities	We have 2 assembly workshop, 2 machining workshop, a district- level R&D center, 3 semi-automatic assembly lines, 60 sets of spiral bevel gear milling machine, 20 sets of Case processing Machine, 8 sets automatic welding machine and 100 sets CNC machining equipment
Production capacity	reverse gear annual output can reach 700,000 sets; rear axle can reach 81,000 sets; gear box can reach 827,000 sets.
