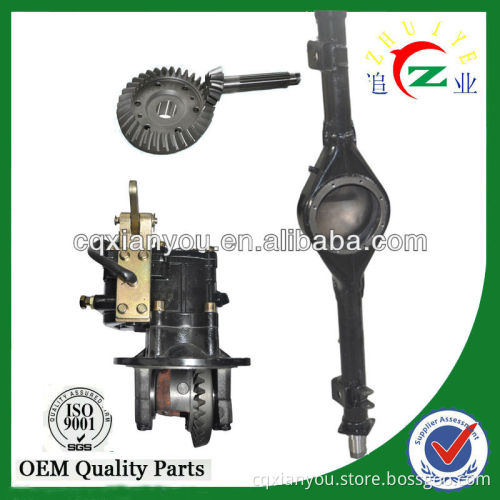

3 wheel motorcycle mechanical brake rear axle with 65*4 shaft housing

Get Latest Price

Delivery Time:: 15 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing, China (Mainland)

Product Description

Specifications 1.mechanical brake full floating rear axle,

2.Taperd roller bearing,

3.Seamless steel tube,

4.Rear axle with two

3 wheel motorcycle mechanical brake rear axle with 65*4 shaft housing

Description	3 wheel motorcycle mechanical brake rear axle with 65*4 shaft housing
Structure	Full-floating
Tapered bearing	32009
Brake	mechanical brake
Length of rear axle	1180mm etc.
Ratio	4.1;6.4
Input spline	20174
Material	65*4(GB/T8162-1999) seamless steel tube
Rim lock bolt	5-M14*1.5
Rear axle tube	65mm
Speed	2 speed

Tricycle mechanical brake full floating rear axle with two speed tricycle transmission has the characteristic of shifting high and low speed in the same gearbox, which is a separate transmission assembly attached to rear axle and equipped with control cable bracket.The shaft is connected to the flange, inputting the dynamic and there are two kinds of speeds through different transmission ratio. When at low speed, it will reduce power consumption and increase the vehicle traction and gradeability; when at high speed, it will be able to meet the need of raising the speed of the vehicle. Rear axle manipulated by handle and gearbox adopting synchronizer shift structure, when driving, gear shifting need the cooperation of clutch.

Tricycle mechanical brake full floating rear axle with two speed tricycle

transmission has the characteristic of shifting high and low speed in the

same gearbox, which is a separate transmission assembly attached to rear

axle and equipped with control cable bracket.The shaft is connected to

the flange, inputting the dynamic and there are two kinds of speeds

through different transmission ratio. When at low speed, it will reduce

power consumption and increase the vehicle traction and gradeability;

when at high speed, it will be able to meet the need of raising the speed

of the vehicle. Rear axle manipulated by handle and gearbox adopting

synchronizer shift structure, when driving, gear shifting need the

cooperation of clutch.

Packaging details 1. Anti-rust paper, box, carton, wooden case 2.Custom packaging according to your specifications

our shipment we adopt the container to ship by sea. the picture is as below:

OUR COMPANY detail information

Our Company Name	Chongqing Xianyou Technology Development Co., Led.
Established Time	founded in 1998
Our Company Character	specialized in machinery research, development and manufacture , high-tech Enterprise
Our Factory Produce	all kinds of gears, gear box, rear axle for tricycle
Our Award	in 2002-the gold medal of China quality “Wan Li Xing” in 2009-obtained the national high and new technology enterprise certificates issued by ministry of science and technology in 2008-four product standards and Chongqing key new product and excellent key new product certificate by Chongqing two different authority Official institutions
Patents	18 national patents
Hardware Facilities	We have 2 assembly workshop, 2 machining workshop, a district- level R&D center, 3 semi-automatic assembly lines, 60 sets of spiral bevel gear milling machine, 20 sets of Case processing Machine, 8 sets automatic welding machine and 100 sets CNC machining equipment
Production capacity	reverse gear annual output can reach 700,000 sets; rear axle can reach 81,000 sets; gear box can reach 827,000 sets.
