Electric small high speed winch for ship

Specifications Electric winch

1.Reliable operation

2.High efficiency

Electric winch
Introduction of starblaze electric winch  The winch is mainly applied in water conservancy project, construction industry, forestry, mining industry, marine field, etc.It has many functions such as drift, support, locate, in loading and unloading work.  The electric winch is used widely in the place with heavy work and big traction. The motor of single drum which drive the drum by reducer box, the brake is installed between the motor and input shaft. The winch could be set up to double and multiple drum for adapting the need of hoisting traction and rotary work. Usually, winch with the rated load less than 10T could be set up to electric winch. Features of starblaze winch 1.Good stability 2.High efficiency 3.Low noise 4.Compact structure 5.Nice appearance Specification of starblaze electric winch

Series	Rated pull (KN)	Rated speed (m/min)	Drum capacity (mm×m)	Braking force (KN)	Motor power (KW)	Weight (Ton)
SB20	20	12	15×200	60	11	2.5
SB30	30	12	16×200	90	15	3
SB50	50	12	22×200	120	22	3.5
SB80	80	12	28×220	240	37	4
SB100	100	12	30×220	300	45	4.5
SB125	125	12	32×220	375	55	5
SS150	150	12	36×220	450	75	6
SB200	200	10	39×720	600	75	9
SB250	250	10	43×350	750	90	12

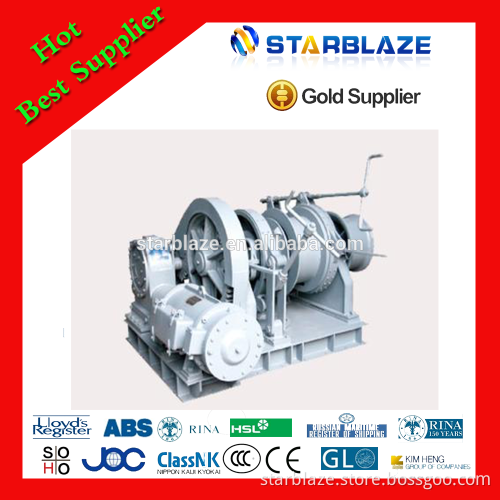

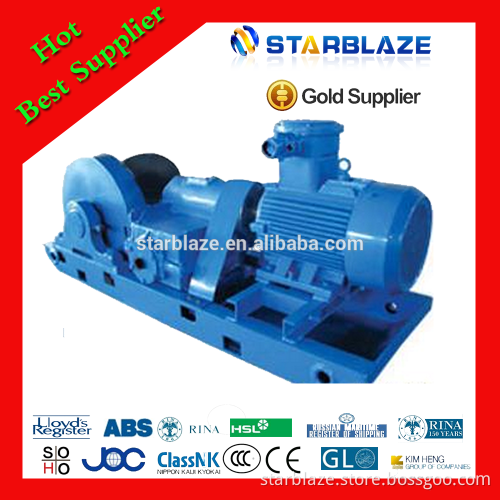

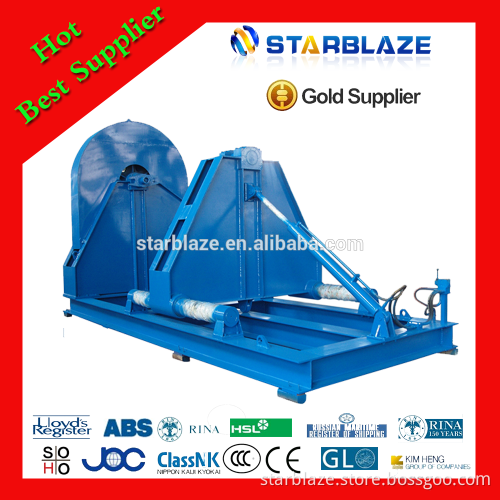

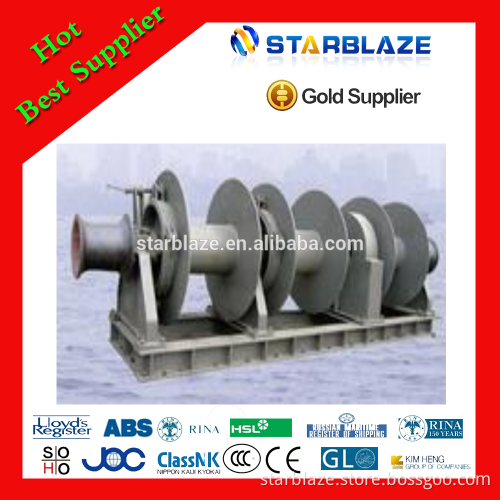

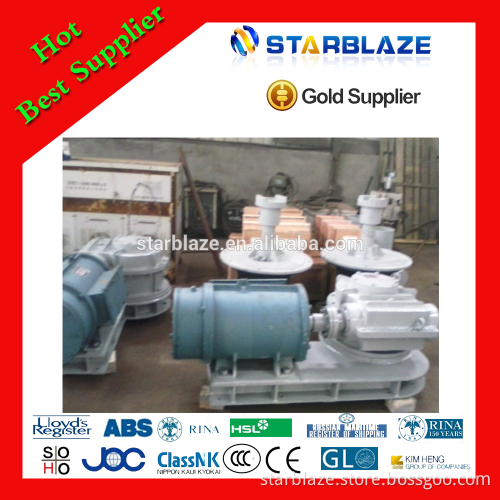

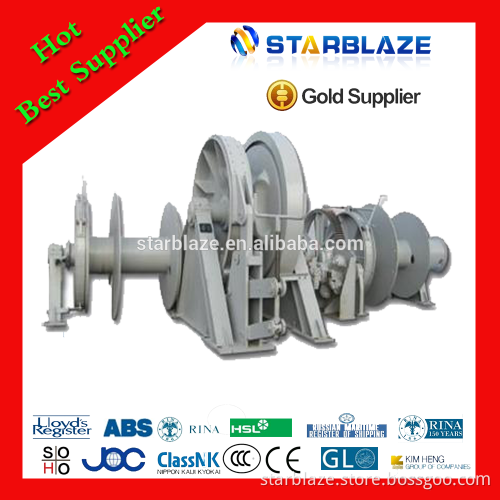

The date sheet is only for reference, the concrete specification can be designed according to your demands. Images of  starblaze electric winch
              Starblaze winch service&certificate: We are quite flexiable on order qty, always offer our customer best price with the fastest shipment,the third party inspection like SGS,BV,TUV and accept customize standard and nonstandard products can be supplied. All of working staffs here are with year experience and expertise in winch industrial.we can controal quality throughout manufacturing,qaulity control,packing,delivery and transportation.
