Design top sell stick boom marine crane

Specifications stick boom marine crane

1.Electric marine crane

2.Flexible to operate

3.API-2C,ABS,BV,CCS,GL

Design top sell stick boom marine crane     Product Description 1.Introduction of stick boom marine crane: 1. We are one of the suppliers of marine equipments in China. Located in Chongqing, which is among the largest industrial and commerical cities in China.  2. We operate as the import and export branch of Chongqing STARBLAZE Group. 3. We are Alibaba Excellent Supplier & Alibaba Recommended Supplier! 4. With the aim of "to establish a close strategic partnership and develop together with customers", we will work whole-heartedly to improve our products and service . We welcome customers to visit. Looking forward to be your long term business partner with  our good quality and satisfying service.   2.Description of stick boom marine crane: The marine ordinary crane  adopts wire cable amplitude variation, planetary reducer lift winch, and rotation driving mechanism, and has reliable operation, durability, convenient maintenance and other characteristics. Taling landing working condition as design basis, marine crane is specially designed for various cargo ships. The crane can be installed in the middle of ships or bow sides. Marine crane which is executed in the Marine environment is a kind of special crane transport operations, mainly used in ship transport of goods between ships,launch and recovery of underwater operation equipment and other important tasks. The characteristic of our product 1.Safe and reliable design, beautiful appearance 2.Small installation space,light weight,large lifting quality 3. Planet type hoisting winch,effectively reduce the temperature of the system and work faster, higher reliability   3.Specification of stick boom marine crane:

Series	Rated weight (Ton)	Range (M)	Max.lifting height (M)	Speed hook (m/min)	Luffing speed (m/min)	Slewing speed (m/min)	Capacity (KW)
SB05-12	5	5-12	12	27	15	1.4	38
SB08-12	8	5-12	15	36	15	1.4	120
SB10-14	10	6-14	18	36	15	1.4	116
SB16-15	15	6-16	21	36	15	1.3	138
SB20-20	20	8-16	24	40	15	1.2	210
SB40-24	40	8-20	27	30	15	1.1	168
SB50-28	50	10-25	30	33	15	1	220



Type	Safety Working Load (kN)	Max Working Rad.(m)	Min Working Rad.(m)	Hoisting Speed (m/min)	Slewing Speed (r/min)	Luffing Time (s)	Hoisting Height (m)	Slewing Angle (°)	Trim/Heel (°)	Power (kW)
SB1	10	6~12	1.3~2.6	15	1	60	30	360°	2°/5°	7.5
SB2	15	8~14	1.7~3	15	1	60	30	360°	2°/5°	11
SB3	20	5~15	1.1~3.2	15	1	60	30	360°	2°/5°	15
SB4	30	8~18	1.7~3.8	15	0.9	70	30	360°	2°/5°	22
SB5	50	12~20	2.5~4.2	15	0.75	80	30	360°	2°/5°	37
SB8	80	12~20	2.5~4.2	15	0.75	100	30	360°	2°/5°	55
SB10	100	12~20	2.5~4.2	15	0.75	110	30	360°	2°/5°	75
SB15	150	12~20	2.5~4.2	15	0.6	110	30	360°	2°/5°	90
SB20	200	16~25	3.2~5.3	15	0.6	120	35	270°	2°/5°	75*2
SB25	250	20~30	3.2~6.3	15	0.5	130	40	270°	2°/5°	90*2
SB30	300	30	3.2~6.3	15	0.4	140	40	270°	2°/5°	90*2
SB35	350	20~35	4.2~7.4	15	0.5	150	45	360°	2°/5°	110*2
SB40	400	20~35	4.2~7.4	15	0.5	150	45	360°	2°/5°	140*2
SB45	450	25~40	5.3~8.5	15	0.45	160	50	360°	2°/5°	140*2
SB50	500	25~40	5.3~8.5	15	0.45	170	50	360°	2°/5°	165*2



Model	Drum Load (KN)	Normal Speed (m/min)	Holding Load (KN)	Dia. Of Rope (mm)	Capacityof rope(m)
eSB-30	30	15	90	16	150
SB-40	40	15	120	18	150
SB-50	50	15	150	20	150
SB-75	75	15	220	26	150
SB-80	80	15	240	26	150
SB-100	100	15	300	28	150
SB-125	125	15	310	30	150
SB-150	150	15	375	32	150
SB-160	160	15	400	32	150
SB-200	200	9.6	500	40	150
SB-250	250	9.6	625	44	150
SB-315	315	7.8	788	52	150
SB-350	350	7.8	875	54	150
SB-400	400	7.8	1000	56	150

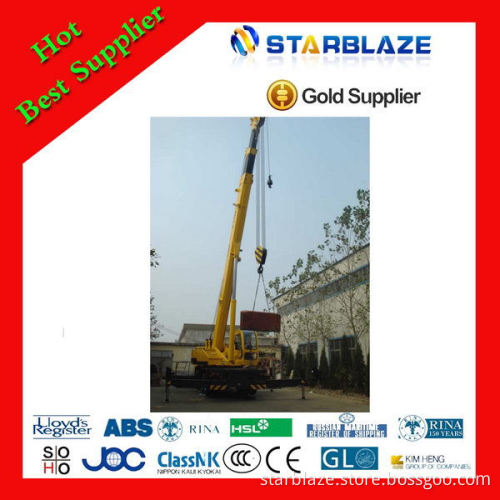

The date sheet is only for reference, the concrete specification can be designed according to your demands.   4.Picture of stick boom marine crane:
                Company Information Service&Certificate of stick boom marine crane: We are quite flexiable on order qty, always offer our customer best price with the fastest shipment,the third party inspection like SGS,BV,TUV and accept customize standard and nonstandard products can be supplied. All of working staffs here are with year experience and expertise in steel industrial.we can controal quality throughout manufacturing,qaulity control,packing,delivery and transportation     stick boom marine crane
