Super quality latest 50t electric capstan winches

Specifications 50t electric capstan winches

1.Electric hand or hydraulic capstan

2.High quality with competitive price

Super quality latest 50t electric capstan winches       Product Description 1.Introduction of 50t electric capstan winches: The capstan has hand electric type and hydraulic type, suitable for ship mooring, anchoring and warping hawser. The capstan is mainly made up of motor, reducer, capstan, brake and so on. The capstan is mainly used on boat. Marine electric capstan can apply force to ropes, cables, and hawsers. The principle is similar to that of the windlass, which owns a horizontal axle. Typically, it uses a gearbox which trades reduced speed, relative to the prime mover, for increased torque. Charicteristics of capstan 1. This capstan can adopt hand electric or hydraulic drive.
2. Rated pull of the 1st layer can reach from 5KN to 250KN. 3. Max wire speed of this capstan winch is 20m/min.    2.Specification of 50t electric capstan winches:

Type	Load (KN)	Speed (m/min)	Wire radius (mm)	Motor power (KW)
SB01	5	≥18	Φ11	5.5
SB02	10	≥18	Φ11	7.5
SB03	15	≥18	Φ13	11
SB04	20	≥18	Φ15	1.5
SB05	30	≥18	Φ17.5	18.5
SB06	50	≥18	Φ20.5	30
SB07	70	≥15	Φ26	45
SB08	100	≥15	Φ28	55
SB09	120	≥15	Φ32.5	75
SB10	150	≥15	Φ36.5	90
SB11	200	≥15	Φ40	110
SB12	250	≥12	Φ46	110

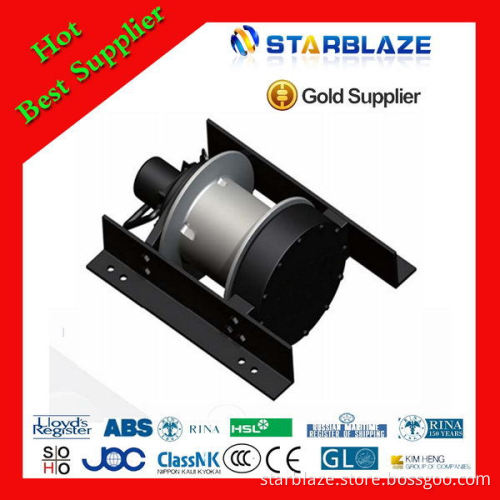

        3.Picture of 50t electric capstan winches:                 Company Information Service&Certificate of 50t electric capstan winches:  We are quite flexiable on order qty, always offer our customer best price with the fastest shipment,the third party inspection like SGS,BV,TUV and accept customize standard and nonstandard products can be supplied. All of working staffs here are with year experience and expertise in steel industrial.we can controal quality throughout manufacturing,qaulity control,packing,delivery and transportation.       50t electric capstan winches
