Cheapest most popular selling hydraulic mooring drum winch

Specifications selling hydraulic mooring drum winch

1.Impetus is electric or hydraulic

2.The function is to support and locate

Cheapest most popular selling hydraulic mooring drum winch     Product Description 1.Introduction of selling hydraulic mooring drum winch: The mooring winch can make ship run effectively when stopping. It has many functions such as drift, support, locate, in loading and unloading work. The mooring winch is widely used in marine field. The electric mooring winch is used widely in the place with heavy work and big traction. The motor of single drum which drive the drum by reducer box, the brake is installed between the motor and input shaft. The winch could be set up to double and multiple drum for adapting the need of hoisting traction and rotary work. Usually, winch with the rated load less than 10T could be set up to electric mooring winch. The hydraulic mooring winch is the winch with large load from 10T to 5000T hydraulic motor have high mechanical efficiency and large torque, can drive different distributor as per different working conditions. It has the following features: compact structure, small size, light, nice appearance, safety, high efficiency, law torque, good stability, low noise, reliable operation and so on.   1. We are one of the suppliers of marine equipments in China. Located in Chongqing, which is among the largest industrial and commerical cities in China.  2. We operate as the import and export branch of Chongqing STARBLAZE Group. 3. We are Alibaba Excellent Supplier & Alibaba Recommended Supplier. 4. With the aim of "to establish a close strategic partnership and develop together with customers", we will work whole-heartedly to improve our products and service . We welcome customers to visit. Looking forward to be your long term business partner with our good quality and satisfying service.    2.Specification of selling hydraulic mooring drum winch:

Series	Rated pull (KN)	Rated speed (m/min)	Drum capacity (mm×m)	Braking force (KN)	Motor power (KW)	Weight (Ton)
SBS20	20	12	15×200	60	11	2.5
SBS30	30	12	16×200	90	15	3
SBS50	50	12	22×200	120	22	3.5
SBS80	80	12	28×220	240	37	4
SBS100	100	12	30×220	300	45	4.5
SBS125	125	12	32×220	375	55	5
SBS150	150	12	36×220	450	75	6
SBS200	200	10	39×720	600	75	9
SBS250	250	10	43×350	750	90	12



Basic parameters Model	Rated Rally KN	The average speed rope m/min	Capacity of rope m	Rope diameter	Motor Model	Electrical power KW	Size appearance mm	Machinery weight KG
SB0.5	5	22	110	7.5	Y100L2-4	3	710*690*490	200
SB1	10	22	80	9.3	Y112M-4	4	710*610*410	300
SB1.5	16	24	115	12.5	Y132S-4	5.5	940*900*570	500
SB2	20	24	110	13	Y132M-4	7.5	940*900*570	550
SB3.2	32	30	250	15.5	YZR180L-6	15	1640*1430*820	1150
SB5	50	30	240	21.5	YZR225M-6	30	1900*1738*985	2500
SB8	80	30	210	26	YZR280S-8	45	1980*1790*1100	3500
SB10	100	30	300	30	YZR315S-8	55	2250*2500*1300	5100

Model No.	Drum Capacity       (SWR)     (mxmm)	Brake Holding     (T)	Rate Pull (Txm/min)	Slack speed   (Txm/min)	Power (Kw)
SB/SD-20/48	500Xφ28	48	20x10	3.5x45	60
SB/SD-25/60	500Xφ32	60	25x10	6.0x35	75
	1000xφ32
SB/SD-32/76	1000xφ38	76	32x10	8.0x34	90
SB/SD-40/96	1000x φ38	96	40x10	10.0x31	110
	1200x φ44
SB/SD-50/120	1200x φ48	120	50x8	12.0x28	110
SB/SD-60/140	1500x φ52	140	60x8	14.0x31	150
SB/SD-75/180	1500x φ60	180	75x8	17.0x31	180
SB/SD-85/200	1500x φ63	200	85x8	20.0x30	220

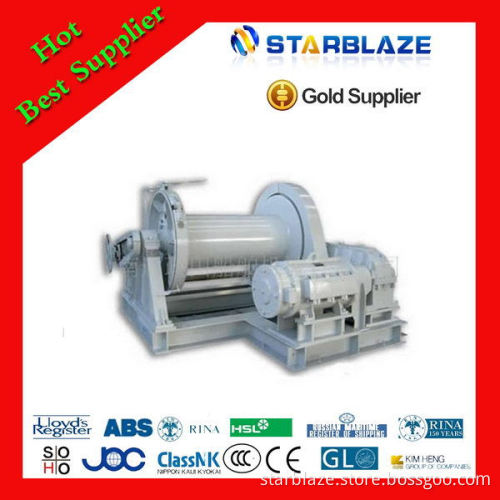

The date sheet is only for reference, the concrete specification can be designed according to your demands.       3.Picture of selling hydraulic mooring drum winch:                 Company Information Service&Certificate of selling hydraulic mooring drum winch: We are quite flexiable on order qty, always offer our customer best price with the fastest shipment,the third party inspection like SGS,BV,TUV and accept customize standard and nonstandard products can be supplied. All of working staffs here are with year experience and expertise in steel industrial.we can controal quality throughout manufacturing,qaulity control,packing,delivery and transportation       selling hydraulic mooring drum winch
