Class 130,155,180 200 Grade1, enameled copper wire coil,Polyester enameled copper wire for motor winding,Transformer

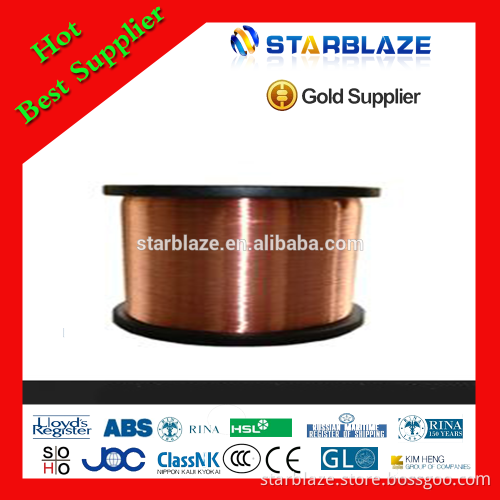

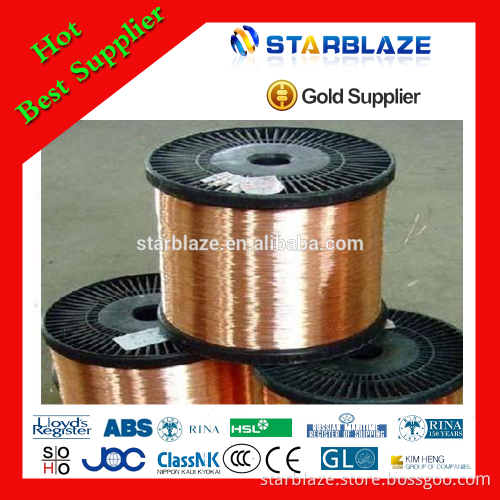

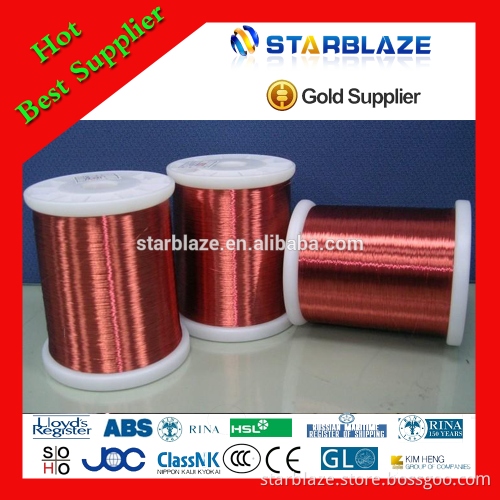

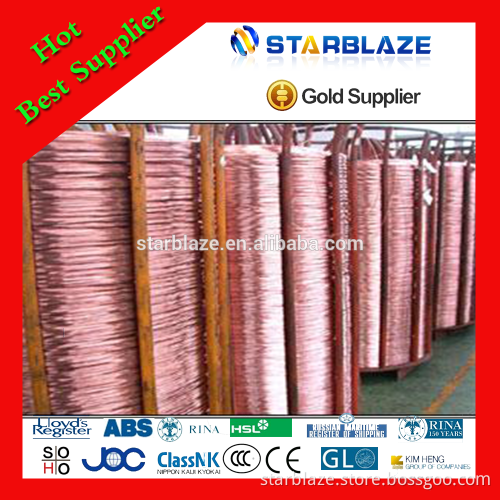

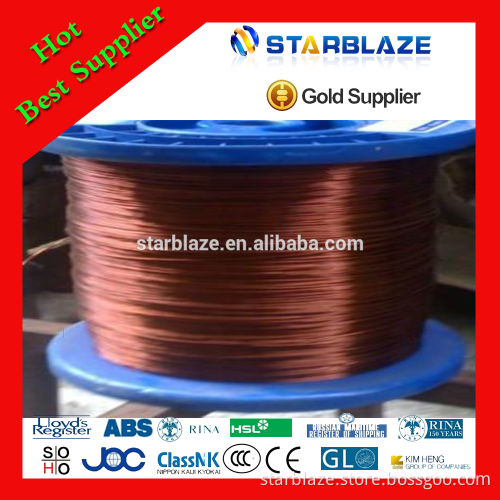

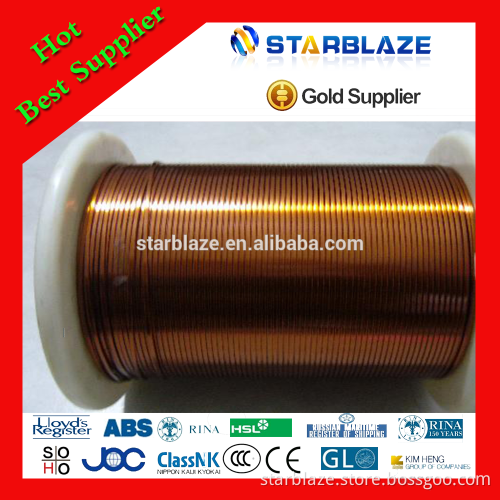

Class 130,155,180 200 Grade1, enameled copper wire coil,Polyester enameled copper wire for motor winding,Transformer     1.Introduction of Starblaze Copper Wires : Our company is specialized in producing copper wires with many years experience. Our copper wires are popular with masses of customers for high quality and good price. We have our own sales network in both domestic  and worldwide markets.     2.Pictures of Starblaze Copper Wires :               3.Specifiction of Starblaze Class 130,155,180 200 Grade1, enameled copper wire coil,Polyester enameled copper wire for motor winding,Transformer :

Enameled Type	Polyester	Modified Polyester	polyester-imide	Polyamide-imide	polyester-imide /Polyamide-imide
Product Type	PEW/130	PEW(G)/155	EIW/180	EI/AIW/200	EIW(EI/AIW)220
Temp Class	130	155	180	200	220
Conductor	Copper	Copper	Copper	Copper	Copper
Size(mm)	0.025-4.5	0.025-4.5	0.025-4.5	0.025-4.5	0.025-4.5
Insulation Grade	Grade1 Grade2 Grade3	Grade1 Grade2 Grade3	Grade1 Grade2 Grade3	Grade1 Grade2 Grade3	Grade1 Grade2 Grade3
Standard	IEC60317-0-2 IEC60317-29 MW36-A	IEC60317-0-2 IEC60317-29MW36-A	IEC60317-0-2 IEC60317-29 MW36-A	IEC60317-0-2 IEC60317-29 MW36-A	IEC60317-0-2 IEC60317-29 MW36-A

     Application:   1Small transformers, linear motors, relays, solenoids, small motors, clock   coils, watch coils, magnetic heads. 2)Automotive sensors and coils as relais and ignition coils.
3)Generators,dry-type or oil-immersed.
4)Anti-explosion motor,air-conditioner compressor,washing machines.
5)Military and space applications.
Feature:
Anti-corrosion ability: Marine atmospheric corrosion slow speed of 0 0011/mm a-1 High intensity: the highest tensile strength ≥ 1100MPA Elastic great: elastic modulus ≥ 150GPA Good shape, the processing rate of up to 80%. The welding performance  Advantages: excellent corrosion-resistance,elasticity,welding performance and high strength. Usage:suitable to be made into spectade fittings,electric and electronic components,craft omaments,optical instruments and ohmic conductor         4.Market and Services of Starblaze  copper Wires :

Main Markets:	South Asia Western Europe Eastern Asia Mid East Oceania Africa Southeast Asia Eastern Europe South America North America
	Total Annual Sales Volume:	US Million - US Million
	Export Percentage:	80% - 90%

      1. Good after sales service: Any small problem happening will be solved at the most prompt time; 2.We have many years of experience, we have specializing in fastener; 3. Specifications list is available upon your request 4. Welcome to send enquiry, we will reply soon. If you want to know more, pls feel free to contact us. 5. Prompt shipment with professional documents  6. Packing as your request, with photo before shipment  7. High quality and competitive price 8. All the product quality are under strict control and offer good service. 9. Our products now are known by lots of our domestic customers and oversea clients. .    We are STARBLAZE Group, Welcome to visit us. We are always here waiting for you
