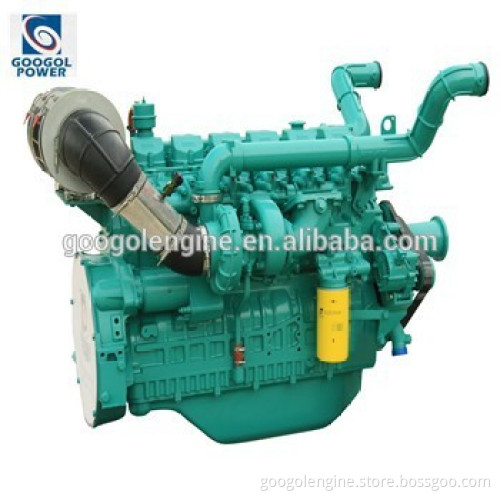

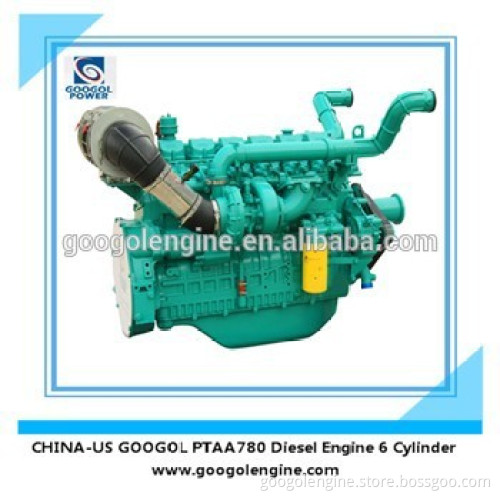

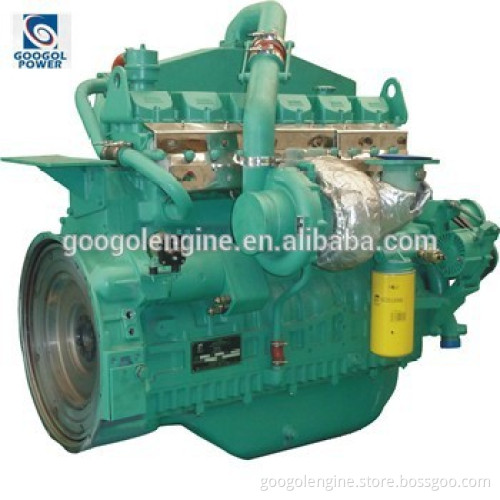

Googol PTAA780-SG1 Diesel Engine 250kW 1000rpm

1000rpm Googol PTAA780-SG1 Engine 250kW   Datasheet of PTAA780-SG1 Diesel Engine

Engine Model		PTAA780-SG1
Speed	rpm	1000
Frequency	Hz	50
Rating Output
Engine Standby Output	kW	282
Engine Prime Output	kW	258
Engine Continuous Output	kW	206
Basic Performance Datasheet
Aspiration Type		Turbocharger, air-air aftercooler
Injection Type		Direct Injection
Configuration		In line
No. of Cylinders		6
Displacement	l	12.8
Bore	mm	128
Stroke	mm	166
Compression Ratio		15.5:1
Lubrication System
Lube Oil Specification		API-CF4
Oil Capacity	l	40
Max. Permissible Oil Temperature	°C	110
Oil consumption (as % of fuel consumption)	max	0.5
Cooling System
Coolant Capacity for Engine	l	18
Max. Coolant Shutdown Temperature	°C	105
Radiator Cooling Flow	m³/min	266.5
Flow of Coolant pump	m³/h	13.13
Fuel System
Governor Type		Electrical
Engine Output at generator set prime output	kW	258
Fuel Consumption at 100% of PRP	l/h	60.99
Lowest Fuel Consumption Ratio	g/kW.hr	196.47
Intake & Exhaust System(on standby power)
Combustion Air Consumption	m³/min	30.55
Max. Intake Restriction	KPa	5
Exhaust Temperature (After Turbo)	°C	480
Max. Exhaust Back Pressure	KPa	5
Exhaust Gas Flow	m³/min	76.85
Engine Dimension
Length	mm	1745
Width	mm	970
Height	mm	1250
Engine Dry Weight w/o Cooling System	kg	1025

  1. All engine parameters are in accordance with ISO3046, ISO8528. 2. All engine parameters are based on 25°C / 100kPa environment condition.             Note: 1. All engine parameters are in accordance with ISO3046, ISO8528. 2. All engine parameters are based on 25°C / 100kPa environment condition. 3. Application for Power Generation, Marine, Pump Driving, CHP power plant.   Warranty:  All equipment is guaranteed for a period of 1000 hours running or 18 months from the date when the generator set has been delivered from the factory.   Company Profile:    GOOGOL Engine-Tech Co., Ltd. is a Leading manufacturer of US based latest technology. GOOGOL also set up Chongqing GOOGOL Engine-Tech Co., Ltd based in China.    Our Product Range is 230 KW to 2722 KW Diesel Engines, 160 KW to 1800 KW Gas Engines, 200 KW to 2400 KW Dual Fuel Engines with middle speed at 1000rpm, 1200rpm, and high speed at 1500rpm, 1800rpm
