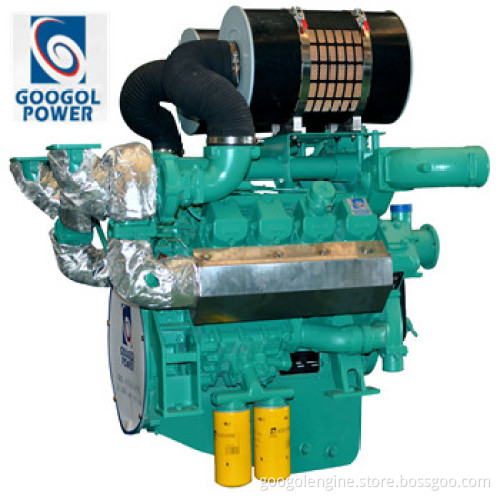

Googol Diesel Engine PTAA890-SG1 300kW 1000RPM

1000RPM Googol PTAA890-SG1 Diesel Engine  300kW   Datasheet of PTAA890-SG1 diesel engine

Engine Model		PTAA890-SG1
Speed	rpm	1000
Frequency	Hz	50
Rating Output
Engine Standby Output	kW	338
Engine Prime Output	kW	305
Engine Continuous Output	kW	229
Basic Performance Datasheet
Aspiration Type		Turbocharger, air-air aftercooler
Injection Type		Direct Injection
Configuration		Vee
No. of Cylinders		8
Displacement	l	14.6
Bore	mm	128
Stroke	mm	142
Compression Ratio		14.6:1
Lubrication System
Lube Oil Specification		API-CF4
Oil Capacity	l	32
Max. Permissible Oil Temperature	°C	110
Oil consumption (as % of fuel consumption)	max	0.5
Cooling System
Coolant Capacity for Engine	l	20
Max. Coolant Shutdown Temperature	°C	105
Radiator Cooling Flow	m³/min	246
Flow of Coolant pump	m³/h	17.32
Fuel System
Governor Type		Electrical
Engine Output at generator set prime output	kW	305
Fuel Consumption at 100% of PRP	l/h	75.25
Intake & Exhaust System(on standby power)
Combustion Air Consumption	m³/min	36.66
Max. Intake Restriction	KPa	5
Exhaust Temperature (After Turbo)	°C	480
Max. Exhaust Back Pressure	KPa	5
Exhaust Gas Flow	m³/min	92.22
Engine Dimension
Length	mm	1484
Width	mm	1389
Height	mm	1162
Engine Dry Weight w/o Cooling System	kg	1125

          Note:   1. All engine parameters are in accordance with ISO3046, ISO8528.   2. All engine parameters are based on 25°C / 100kPa environment condition.   3. Application for Power Generation, Marine, Pump Driving, CHP power plant.   Warranty:      All equipment is guaranteed for a period of 1000 hours running or 18 months from the date when the generator set has been delivered from the factory.   Company Profile:        GOOGOL EngineTech Co., Ltd.  is a Leading manufacturer of US based latest technology Diesel, Natural gas, biogas, Dual fuel, Middle Speed and high speed Engines within the range of 200 KW to 2500 KW. GOOGOL also set up Chongqing Googol Engine-Tech Co., Ltd. Engine manufacturing facility based in China.    GOOGOL has dedicated to the diesel and gas engine development since 2003, we developed P & Q Series diesel, gas and dual fuel Engines for power generator, pumping and marine applications. Our Product Range is 230 KW to 2722 KW Diesel Engines,  160 KW to 1800 KW Gas Engines, 200 KW to 2400 KW Dual Fuel Engines with middle speed at 1000rpm, 1200rpm, and high speed at 1500rpm, 1800rpm
