1800rpm Small Electric Diesel Engine 60Hz

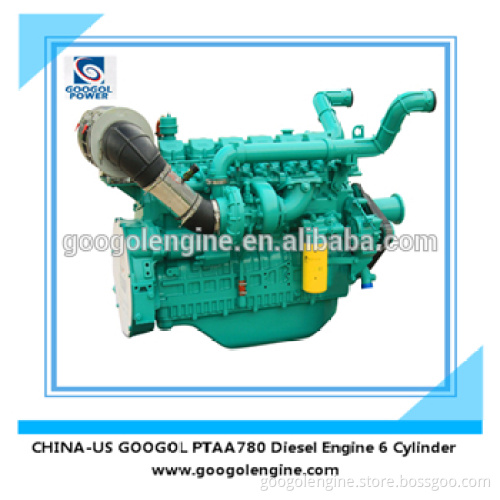

1800rpm Googol PTAA780G4 Diesel Engine 445kW 60Hz                Promotion

Engine Model		PTAA780-G4
Speed	rpm	1800
Frequency	Hz	60
Rating Output
Engine Standby Output (LTP)	kW	488
Engine Prime Output (PRP)	kW	445
Engine Continuous Power (COP)	kW	359
Fan Reduction	kW	17
Basic Performance Datasheet
Configuration		In line
No. of Cylinders		6
Displacement	l	12.8
Bore	mm	128
Stroke	mm	166
Compression Ratio		15.5:1
Piston Speed	m/s	9.96
Number of Flywheel Teeth		160
Cooling System
Coolant Capacity for Engine	l	18
Max. Permissible Temperature	°C	90
Max. Coolant Warning Temperature	°C	95
Max. Coolant Shutdown Temperature	°C	105
Thermostat Open Temperature	°C	82
Radiator Cooling Flow	m³/min	450
Flow of Coolant pump	m³/h	23.6
Fuel System
Governor Type		Electrical
Engine Output at genset prime output	kW	445
Fuel Consumption at 100% of PRP	l/h	114.57
Intake & Exhaust System
Combustion Air Consumption	m³/min	47.26
Max. Intake Restriction	KPa	2.5
Max. Exhaust Temperature (Before Turbo)	°C	675
Max. Exhaust Temperature (After Turbo)	°C	520
Max. Exhaust Back Pressure	Kpa	2.5
Exhaust Gas Flow	m³/min	119.59
Exhaust Flange Diameter	mm	125

    1. All engine parameters are in accordance with ISO3046, ISO8528.   2. All engine parameters are based on 25°C / 100kPa environment condition.                Note:     1. All engine parameters are in accordance with ISO3046, ISO8528.     2. All engine parameters are based on 25°C / 100kPa environment condition.     3. Application for Power Generation, Marine, Pump Driving, CHP power plant.   Warranty:     All equipment is guaranteed for a period of 1000 hours running or 18 months from the date when the generator set has been delivered from the factory.   Company Profile:     GOOGOL Engine-Tech Co., Ltd. is a Leading manufacturer of US based latest technology. GOOGOL also set up Chongqing GOOGOL Engine-Tech Co., Ltd based in China.     Our Product Range is 230 KW to 2722 KW Diesel Engines, 160 KW to 1800 KW Gas Engines, 200 KW to 2400 KW Dual Fuel Engines with middle speed at 1000rpm, 1200rpm, and high speed at 1500rpm, 1800rpm            Welcome to Our Website: www.googolengine.com
