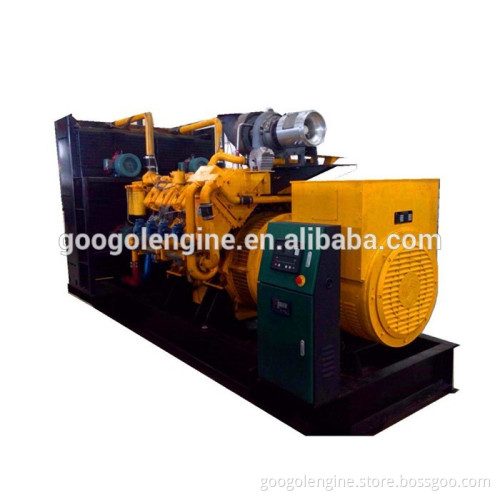

Googol GPAC900 Biogas Gas Turbine Generator for Sale

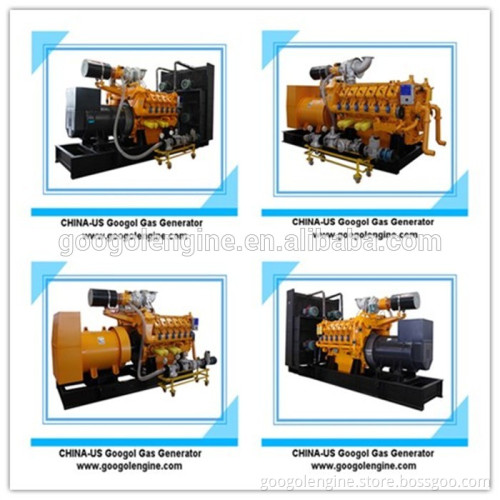

50Hz 1500RPM Googol Gas Generator

Genset Model	Engine Model	Alternator Model	Continuous Power	Cylinder Configuration	Bore*Stroke (mm*mm)	Total Efficiency
GPAC200	RTA780G1	MP-180-4A	160 kW	6 In line	128*166	82.8%
GPAC250	RTA780G3	MP-217-4A	200 kW	6 In line	128*166	84.1%
GPAC315	RTA890G1	MP-280-4A	252 kW	8 V	128*142	81.7%
GPAC400	RTA1120G1	MP-400-4	320 kW	10 V	128*142	81.5%
GPAC500	RTA1340G1	MP-480-4	400 kW	12 V	128*142	81.7%
GPAC750	JTA2160G1	MX-700-4	600 kW	8 V	170*195	82.3%
GPAC900	JTA2160G3	MX-850-4	720 kW	8 V	170*195	83.1%
GPAC1200	JTA3240G1	MX-1030-4	960 kW	12 V	170*195	82.7%
GPAC1350	JTA3240G3	MX-1240-4	1080 kW	12 V	170*195	83.9%
GPAC1550	JTA4320G1	MX-1350-4	1240 kW	16 V	170*195	83.0%
GPAC1788	JTA4320G3	MX-1600-4	1430 kW	16 V	170*195	84.4%

    60Hz 1200RPM Googol Gas Generator

Genset Model	Engine Model	Alternator Model	Continuous Power	Cylinder Configuration	Bore*Stroke (mm*mm)	Total Efficiency
GPAC208/6	RTA780G2	MP-140-4A	166 kW	6 In line	128*166	82.3%
GPAC260/6	RTA780G4	MP-180-4A	208 kW	6 In line	128*166	83.5%
GPAC325/6	RTA890G2	MP-240-4A	260 kW	8 V	128*142	82.7%
GPAC410/6	RTA1120G2	MP-300-4A	328 kW	10 V	128*142	82.3%
GPAC510/6	RTA1340G2	MP-260-4A	408 kW	12 V	128*142	82.9%
GPAC650/6	JTA2160SG2	MX-500-6	540 kW	8 V	170*195	81.2%
GPAC1000/6	JTA3240SG2	MX-800-6	800 kW	12 V	170*195	82.2%
GPAC1285/6	JTA4320SG2	MX-1000-6	1080 kW	16 V	170*195	82.4%
GPAC1650/6	JTA5400SG2	MX-1000-6	1320 kW	16 V	170*195	82.6%

    Googol GPAC900 Gas Generator Datesheet

Genset Model		GPAC900
Engine Model		JTA2160G3
Rating Speed	rpm	1500
Frequency	Hz	50
Generator Output (COP)	kW	720
Power Factor		0.8
Gas Engine Parameter
Engine Output  (COP)	kW	771
Air Ratio	λ	1.7
Configuration		8 Vee
Displacement	l	35.4
Bore	mm	170
Stroke	mm	195
Compression Ratio		12:1
Piston Speed	m/s	9.75
Number of Flywheel Teeth		218
Flywheel House Size		SAE00-18
System Parameter
Oil Capacity	l	160
Max. Allowed Oil Temperature	°C	110
Oil Pressure Warning	kPa	300
Oil Pressure Shutdown	kPa	200
Coolant Capacity for Engine	l	70
Max. Coolant Warning Temperature	°C	95
Max. Coolant Shutdown Temperature	°C	100
Max. Intercooler Outlet Temperature	°C	40.5
Flow of Coolant pump (JW)	m³/h	48
Flow of Coolant pump (LT)	m³/h	45
Max. Exhaust Temperature	°C	500
Exhaust Flow	kg/h	3896
Exhaust Flange Diameter	mm	1*250
Charging Alternator Capacity	A	55
Starting Voltage	V	24
Thermal Balance
Energy Input	kW	1870
Thermal Efficiency	%	44.6
Total Efficiency	%	83.1
Gas Consumption	MJ/kWh	9.35
Genset Dimension
Genset Size- L * W *H	mm	3800*1600*2400
Vertical Radiator- L * W *H	mm	3500*2200*2400
Genset Weight	kg	7650

  Standard Supply Scope: 1. Gas engine with alternator 2. Ignition coil, spark plug, high pressure wires by Germany Heinzmann/Motortech 3. Ignition control module by Germany Heinzmann/Motortech 4. Electronic Governor and Actuator   5. Gas filter, Gas/Air Mixer, Intake air filter   6. Cut off valve, Pressure regulator, Flame arrester   7. Generator control module by UK Deepsea 7320   8. MCCB breaker for below 500kW model   9. Radiator is standard , Strat battery and charger                             Welcome to our website: www.googolengine.com
