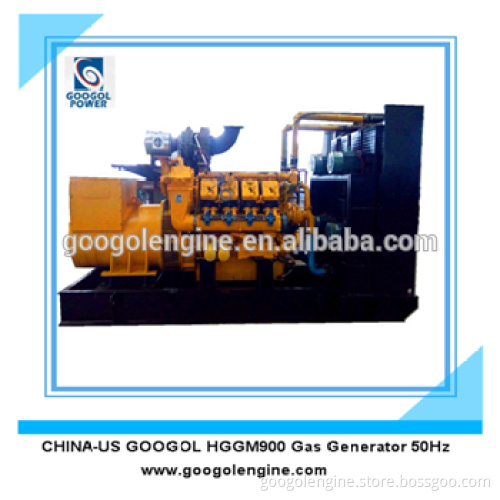

Googol HGGM900 Gas Generator Supplier

50Hz 1500RPM Googol Gas Generator

Genset Model	Engine Model	Generator Model	Generator Output(kW)	ELectrical Efficiency
HGGM200	RTA780G1	ECO38-3SN/4	160	36.5%
HGGM250	RTA780G3	ECO38-2LN/4	200	38.2%
HGGM313	RTA890G1	ECO38-3LN/4	250	38.3%
HGGM400	RTA1120G1	ECO40-2S/4	320	37.6%
HGGM500	RTA1340G1	ECO40-1L/4	400	39.5%
HGGM625	RTA1780G1	ECO40-2L/4	500	38.9%
HGGM750	JTA2160G1	ECO43-2SN/4	600	38.9%
HGGM900	JTA2160G3	ECO43-1LN/4	720	40.5%
HGGM1285	JTA3240G3	ECO43-VL/4	1024	42.6%
HGGM1600	JTA4320G1	ECO46-2S/4	1280	41.2%
HGGM1815	JTA4320G3	ECO46-1L/4	1452	42.5%

  60Hz 1200RPM Googol Gas Generator

Genset Model	Engine Model	Generator Model	Generator Output(kW)	ELectrical Efficiency
HGGM650/6	JTA2160-SG2	MP-500-6	520	39.4%
HGGM1000/6	JTA3240-SG2	MP-750-6	800	40.9%
HGGM1285/6	JTA4320-SG2	MP-1000-6	1028	41.0%

  Googol JTA2160G3 Gas Engine Date Sheet

Engine Model		JTA2160-G3
Speed	rpm	1500
Frequency	Hz	50
Rating Output
Ramda Value	λ	1.70
Continuous Output	kW	751
BMEP for Continuous Output	bar	16.96
Fan Reduction	kW	7.5
Single Fan Reduction	kW	5.80
Fan Quantity	rpm	1470
Fan Motor’s Pole		4
All Fans Reduction	Sets	4
Engine Net Continuous Output	kW	23.2
Typical Continuous Generation Output	kVA	900
Typical Continuous Generation Output	kW	720
Generator Brand		MECC ALTE
Generator Model		ECO43-1LN/4
Generator Prime Output	kW	880
Typical  Alternator Efficiency		95.9%
Power Factor		0.8
Speed droop (static) elect. Gov.		0-5%
Governing standards to ISO 8528 Parts 1 and 5		G3
Basic Performance Datasheet
Aspiration Type		Turbocharger air-water aftercooler
Turbocharger Type		1*TPS48F32
Configuration		V
No. of Cylinders		8
Displacement	l	35.4
Bore	mm	170
Stroke	mm	195
Compression Ratio		12:1
Piston Speed	m/s	9.75
Rotation Direction (from flywheel)		Counter Clockwise
Number of Flywheel Teeth		218
Flywheel House Size		SAE00-18
Lubrication System
Lube Oil Specification		API-CF4
Oil Capacity	l	160
Max. Permissible Oil Temperature	°C	110
Oil Pressure Warning	kPa	300
Oil Pressure Shutdown	kPa	200
Oil Consumption	g/kWh	0.25
Cooling System
Coolant Capacity for Engine	l	70
Max. permissible Temperature  of Cylinder Inlet	°C	80
Max. permissible Temperature  of Cylinder Outlet	°C	90
Max. Coolant Warning Temperature	°C	95
Max. Coolant Shutdown Temperature	°C	100
Thermostat Open Temperature	°C	71
Radiator Cooling Flow	m³/s	28
Flow of Cylinder Block Coolant	m³/h	48
Max. permissible Temperature  of Aftercooler Inlet	°C	38
Max. permissible Temperature  of  Aftercooler Outlet	°C	40.5
Flow of Aftercooler Coolant	m³/h	45
Energy Blanace
Heat dissipation (engine cylinder liner)± 8 %	kW	371
Heat dissipation (CAC)± 8 %	kW	60
Heat dissipation (Exhaust cooled to 120°C)± 8 %	kW	358
Gas Consumption + 5 %	kW	1779
ELectrical Efficiency		40.48%
mechanical Efficiency		42.21%
Thermal Efficiency		40.95%
Total Efficiency		83.16%
Engine Output at genset prime output	kW	751
Fuel Consumption at 100% ofgenset prime output+ 5 %	Nm3/hr	177.85
Intake & Exhaust System(On Continuous Output)
Total Air Consumption	kg/hr	18019
Combustion Air Consumption	kg/hr	3772
Max. Intake Restriction	mbar	5.0
Gas Inlet Pressure Value	mbar	20-200
Gas Inlet Pressure		± 10 %
Cylinder  Exhaust Temperature (before turbo)	°C	630
Cylinder Exhaust Temperature (after turbo)	°C	460
Min. Exhaust Back Pressure	mbar	30.0
Max. Exhaust Back Pressure	mbar	50.0
Exhaust Gas Flow	kg/hr	3896
Exhaust Flange Diameter	mm	1*250
Emissions NOx	mg/Nm3	< 500
Electrical System
Charging Alternator Voltage	V	28
Charging Alternator Capacity	A	55
Starting Voltage	V	24
Starting Motor Capacity	kW	9
Minimum Battery Capacity	Ah	4*150
Genset's Bearing		Single
Quantity of generator set's Bearing ((For 400-660VAC generator)		1
Quantity of generator set's Bearing ((For Above 3300VAC generator)		2
Ignition system		MIC5
Spark plug type		GL3-3
Engine Dimension
Length	mm	2596
Width	mm	1459
Height	mm	1820
Engine Dry Weight w/o Cooling System	kg	3500

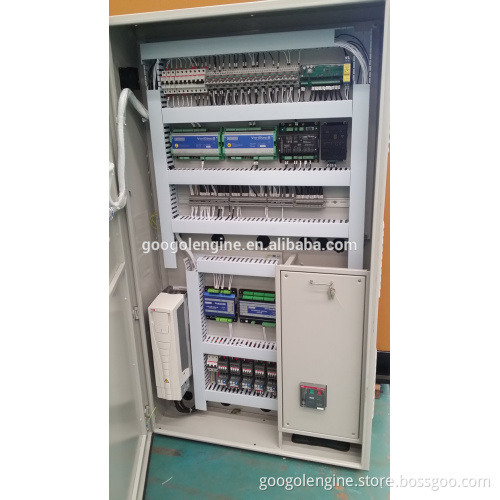

Standard Supply Scope: 1. Gas engine with alternator 2. Ignition coil, spark plug, high pressure wires by Germany Heinzmann/Motortech 3. Ignition control module by Germany Heinzmann/Motortech 4. Electronic Governor and Actuator   5. Gas filter, Gas/Air Mixer, Intake air filter   6. Cut off valve, Pressure regulator, Flame arrester   7. Generator control module by UK Deepsea 7320   8. MCCB breaker for below 500kW model   9. Radiator is standard , Strat battery and charger
