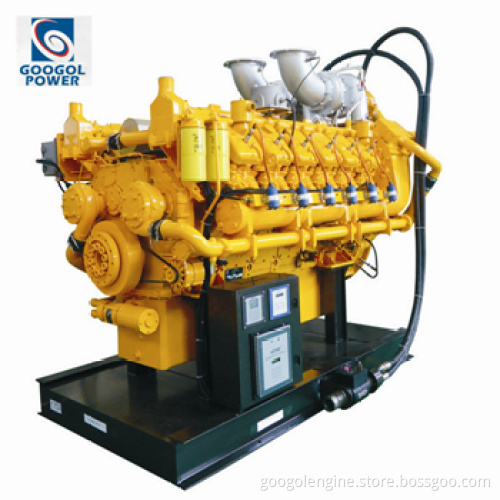

Googol JTA3240G3 Natural Gas Engine

China-US Googol Natural Gas Engine JTA3240G3 50Hz 1000kW

Engine Model		JTA3240G3
Speed	rpm	1500
Frequency	Hz	50
Rating Output
Engine Continuous Power (COP)	kW	1000
Typical Generator Output (COP)	kW	960
Basic Performance Datasheet
Aspiration Type		Turbocharged, air-air aftercooled
Ignition System		Spark Plug Igniton
Configuration		Vee
No. of Cylinders		12
Displacement	l	53.1
Bore	mm	170
Stroke	mm	195
Compression Ratio		12:1
Cooling System
Coolant Capacity for Engine	l	100
Max. Prenissiable Temperature	°C	90
Max. Coolant Warning Temperature	°C	93
Max. Coolant Shutdown Temperature	°C	97
Radiator Cooling Flow	m³/min	1650
Fuel System
Governor Type		Electrical
Engine Output at genset prime output	kW	847
Fuel Consumption at 100% of genset prime output	l/h	201.67
Intake & Exhaust System
Combustion Air Consumption	m³/min	92.49
Max. Intake Restriction	KPa	2
Max. Exhaust Temperature	°C	698
Max. Exhaust Back Pressure	Kpa	2
Exhaust Gas Flow	m³/min	234.06
Exhaust Flange Diameter	mm	150
Engine Dimension
Length	mm	1950
Width	mm	1389
Height	mm	1162
Engine Dry Weight w/o Cooling System	kg	2250

   Note: 1. All engine parameters are in accordance with ISO3046, ISO8528. 2. All engine parameters are based on 25°C / 100kPa environment condition. 3. Application for Power Generation, Marine, Pump Driving, CHP power plant.     Applied gas:    Natural Gas, Biogas, City Sewage Gas, Landfill gas, Oil gas, farm biogas, Coal mine gas,etc   Acceptable fuel gas pressure: 5~12kPa   CH4 content: for natural gas≥85% CH4 ,content:for biogas≥40%   Gas heat value≥5500kcal/Nm3 (23MJ/Nm3 ). Genset output power will increase as the gas heat value increase, if use low heat value gas for fuel (Heat value<5500kcal/Nm3, it will lower the power efficiency.   Gas doesn’t include free water or free materials (the size of impurities should be less than 5μm.)   H2S content≤200mg/Nm³   NH3 content≤20mg/Nm³   Impurities content≤30mg/Nm³;size≤5μm   Water content≤40g/Nm³, no free water.     Acceptable working conditions:   Ambient temperature : -10°C~+40°C    (antifreeze or preheater needed for below 0°C)   Relative humidity:<90%(20°C)   Altitude:≤1000m   Normal working conditions:   Genset can run at rated power on the conditions:   Atmospheric Pressure: 100kPa, Ambient Temp: 20°C, Relative Humidity: 30%.   Standard scope of supply:  1,Gas Engine   2,AC Generator   3,Common Frame   4,Control Panel   5,Ignition System: Ignition Controller, Ignition Coils, Output harness, Pickup magnetic, Trigger disc, PolyMot high tension lead, Spark Plug   6,Detonation Controller System: DetCon20 control unit, Detonation sensor, Cable & knock sensor   7,Electronic Speed Controller System: Integrated Throttle body, Vari-Step stepper motor card, Harness VariFuel, Electronic speed controller - ECON-4, pickup magnetic   8,Gas Mixer System: VariFuel air/fuel ratio mixer, VF Flange, VariStep stepper motor card, Harness VariFuel, VariFuel2 flow body   9.Emission Control System: EmCon5 control unit, EmCon5 sensor harness, knock sensor   10,Valve: Gas Pressure Valve , Solenoid Valve, Cutoff Valve   11,Exhaust Bellows & Muffler   12,Radiator for optional   Warranty:  All equipment is guaranteed for a period of 1000 hours running or 18 months from the date when the generator set has been delivered from the factory.   Company Profile:  GOOGOL EngineTech Co., Ltd.  is a Leading manufacturer of US based latest technology Diesel, Natural gas, biogas, Dual fuel, Middle Speed and high speed Engines within the range of 200 KW to 2500 KW. GOOGOL also set up Chongqing Googol Engine-Tech Co., Ltd. Engine manufacturing facility based in China.
