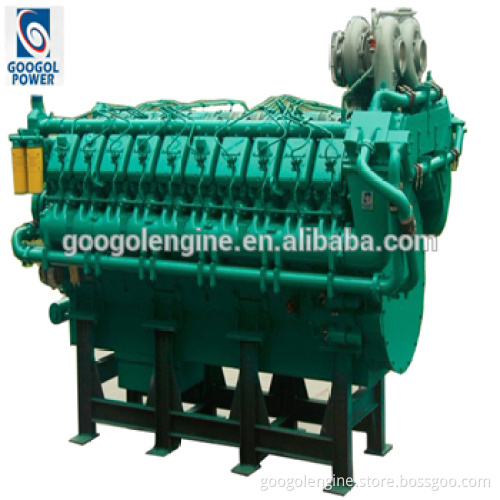

Googol QTA5400M3 Diesel Engine for Boat

  1500rpm 2200kW Googol QTA5400M3 Diesel Engine for Marine

Engine Model		QTA5400-M3
Speed	rpm	1500
Frequency	Hz	50
Rating Output
Engine Standby Output (LTP)	kW	2420
Engine Prime Output (PRP)	kW	2200
Engine Continuous Power (COP)	kW	2000
Standby Output's Torque	N.M	15407
Prime Output's Torque	N.M	14007
Continuous Output's Torque	N.M	12733
BMEP for Standby Output	bar	21.87
BMEP for Prime Output	bar	19.88
BMEP for Continuous Output	bar	18.07
Speed droop (static) elect. Gov.		0-5%
Max. step load acceptance, 1st step(% Prime Output)		40%
Basic Performance Datasheet
Aspiration Type		Turbocharger, air-water aftercooler
Injection Type		Direct Injection
Configuration		Vee
No. of Cylinders		20
Displacement	l	88.5
Bore	mm	170
Stroke	mm	195
Compression Ratio		13.5:1
Piston Speed	m/s	9.75
Rotation Direction (from flywheel)		Counter Clockwise
Number of Flywheel Teeth		218
Flywheel House Size		SAE00-21
Cooling System
Coolant Capacity for Engine	l	200
Max. Prenissiable Temperature	°C	82
Max. Coolant Warning Temperature	°C	85
Max. Coolant Shutdown Temperature	°C	90
Thermostat Open Temperature	°C	71
Flow of Coolant pump	m³/h	80+75
Heat dissipation (engine radiator)	kW	890
Heat dissipation (CAC)	kW	422
Heat dissipation (convection)	kW	134
Fuel System
Governor Type		Electrical
Engine Output at prime output	kW	2200
Fuel Consumption at 100% of prime output	l/h	505.21
Lowest Fuel Consumption Ratio	g/kW.hr	191.75
Intake & Exhaust System(on standby power)
Combustion Air Consumption	m³/min	232.27
Max. Intake Restriction	KPa	2
Max. Exhaust Temperature (Before Turbo)	°C	635
Max. Exhaust Temperature (After Turbo)	°C	515
Max. Exhaust Back Pressure	KPa	2
Exhaust Gas Flow	m³/min	587.85
Exhaust Flange Diameter	mm	2*250
Engine Dimension
Length	mm	4110
Width	mm	1459
Height	mm	1820
Engine Dry Weight w/o Cooling System	kg	7600

    1. All engine parameters are in accordance with ISO3046, ISO8528.   2. All engine parameters are based on 25°C / 100kPa environment condition.       Note: 1. All engine parameters are in accordance with ISO3046, ISO8528. 2. All engine parameters are based on 25°C / 100kPa environment condition. 3. Application for Power Generation, Marine, Pump Driving, CHP power plant.     Warranty:    All equipment is guaranteed for a period of 1000 hours running or 18 months from the date when the generator set has been delivered from the factory.   Company Profile:    GOOGOL Engine-Tech Co., Ltd. is a Leading manufacturer of US based latest technology. GOOGOL also set up Chongqing GOOGOL Engine-Tech Co., Ltd based in China.    Our Product Range is 230 KW to 2722 KW Diesel Engines, 160 KW to 1800 KW Gas Engines, 200 KW to 2400 KW Dual Fuel Engines with middle speed at 1000rpm, 1200rpm, and high speed at 1500rpm, 1800rpm
