670kW 837KVA Turbocharged Silent Diesel Engine

  1260rpm Googol QTA2160DM2 Diesel Engine for Drilling Machine

Engine Model		QTA2160-DM2
Speed	rpm	1260
Rating Output
Engine Prime Output	kW	669
Engine Prime Output	Hp	910
Engine Continuous Output	kW	601
Engine Continuous Output	Hp	818
BMEP for Prime Output	bar	18
BMEP for Continuous Output	bar	16.17
Fan Reduction	kW	36
Fan Reduction	Hp	49
Basic Performance Datasheet

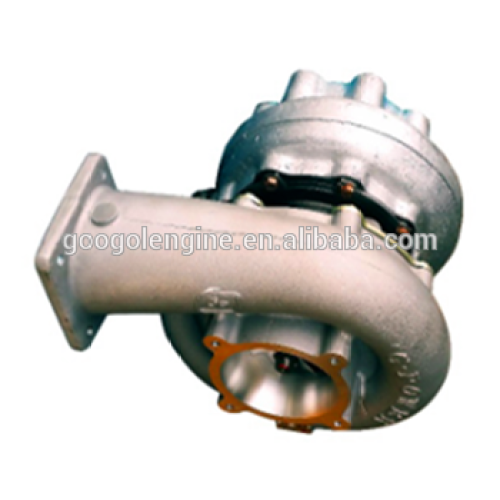

Aspiration Type		Turbocharger, air-water aftercooler
Injection Type		Direct Injection
Configuration		Vee
No. of Cylinders		8
Displacement	l	35.4
Bore	mm	170
Stroke	mm	195
Compression Ratio		13.5:1
Piston Speed	m/s	8.19
Rotation Direction (from flywheel)		Counter Clockwise
Number of Flywheel Teeth		218
Flywheel House Size		SAE00-18
Cooling System
Coolant Capacity for Engine	l	70
Max. Permissible Temperature	°C	82
Max. Coolant Warning Temperature	°C	85
Max. Coolant Shutdown Temperature	°C	90
Thermostat Open Temperature	°C	71
Radiator Cooling Flow	(m³/min)	1596
Flow of Coolant pump	m³/h	40+38

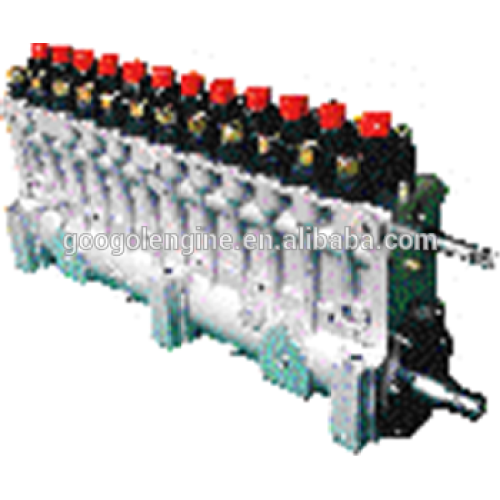

Fuel System
Governor Type		Electrical
Engine Output at engine prime output	kW	669
Fuel Consumption at 100% of engine prime output	l/h	154.98
Lowest Fuel Consumption Ratio	g/kW.hr	188.65
Intake & Exhaust System
Combustion Air Consumption	m³/min	47.28
Max. Intake Restriction	KPa	2.5
Exhaust Temperature (Before Turbo)	°C	555
Exhaust Temperature (After Turbo)	°C	420
Max. Exhaust Back Pressure	KPa	2.5
Exhaust Gas Flow	m³/min	119.56
Exhaust Flange Diameter	mm	1*250
Engine Dimension
Length	mm	2596
Width	mm	1459
Height	mm	1820
Engine Dry Weight w/o Cooling System	kg	3800

    1. All engine parameters are in accordance with ISO3046, ISO8528.   2. All engine parameters are based on 25°C / 100kPa environment condition.           Note: 1. All engine parameters are in accordance with ISO3046, ISO8528. 2. All engine parameters are based on 25°C / 100kPa environment condition. 3. Application for Power Generation, Marine, Pump Driving, CHP power plant.     Warranty:    All equipment is guaranteed for a period of 1000 hours running or 18 months from the date when the generator set has been delivered from the factory.   Company Profile:    GOOGOL Engine-Tech Co., Ltd. is a Leading manufacturer of US based latest technology. GOOGOL also set up Chongqing GOOGOL Engine-Tech Co., Ltd based in China.    Our Product Range is 230 KW to 2722 KW Diesel Engines, 160 KW to 1800 KW Gas Engines, 200 KW to 2400 KW Dual Fuel Engines with middle speed at 1000rpm, 1200rpm, and high speed at 1500rpm, 1800rpm       Welcome to our Website: www.googolengine.com
