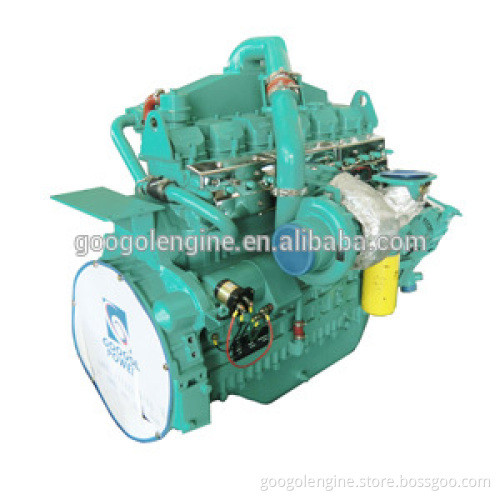

300kW 1500rpm Googol PTA780-G3 Small Diesel Engine

  1500rpm Googol P780-G3 Engine 325kW

Engine Model		PTA780-G3
Speed	rpm	1500
Frequency	Hz	50
Rating Output
Engine Standby Output (LTP)	kW	358
Engine Prime Output (PRP)	kW	325
Engine Continuous Power (COP)	kW	258
Fan Reduction	kW	16
Basic Performance Datasheet
Aspiration Type		Turbocharger, air-water aftercooler
Injection Type		Direct Injection
Configuration		In line
No. of Cylinders		6
Displacement	l	12.8
Bore	mm	128
Stroke	mm	166
Compression Ratio		15.5:1
Cooling System
Coolant Capacity for Engine	l	18
Max. Permissible Temperature	°C	90
Max. Coolant Warning Temperature	°C	95
Max. Coolant Shutdown Temperature	°C	105
Thermostat Open Temperature	°C	79
Radiator Cooling Flow	m³/min	410
Flow of Coolant pump	m³/h	19.7
Fuel System
Governor Type		Electrical
Engine Output at genset prime output	kW	325
Fuel Consumption at 100% of PRP	l/h	78.49
Intake & Exhaust System(on standby power)
Combustion Air Consumption	m³/min	26.85
Max. Intake Restriction	KPa	5
Max. Exhaust Temperature (Before Turbo)	°C	660
Max. Exhaust Temperature (After Turbo)	°C	510
Max. Exhaust Back Pressure	Kpa	5
Exhaust Gas Flow	m³/min	32.82
Exhaust Flange Diameter	mm	150
Engine Dimension
Length	mm	1745
Width	mm	900
Height	mm	1196
Engine Dry Weight w/o Cooling System	kg	1025

    Note: 1. All engine parameters are in accordance with ISO3046, ISO8528. 2. All engine parameters are based on 25°C / 100kPa environment condition. 3. Application for Power Generation, Marine, Pump Driving, CHP power plant.         Warranty:  All equipment is guaranteed for a period of 1000 hours running or 18 months from the date when the generator set has been delivered from the factory.   Company Profile:    GOOGOL Engine-Tech Co., Ltd. is a Leading manufacturer of US based latest technology. GOOGOL also set up Chongqing GOOGOL Engine-Tech Co., Ltd based in China.    Our Product Range is 230 KW to 2722 KW Diesel Engines, 160 KW to 1800 KW Gas Engines, 200 KW to 2400 KW Dual Fuel Engines with middle speed at 1000rpm, 1200rpm, and high speed at 1500rpm, 1800rpm
