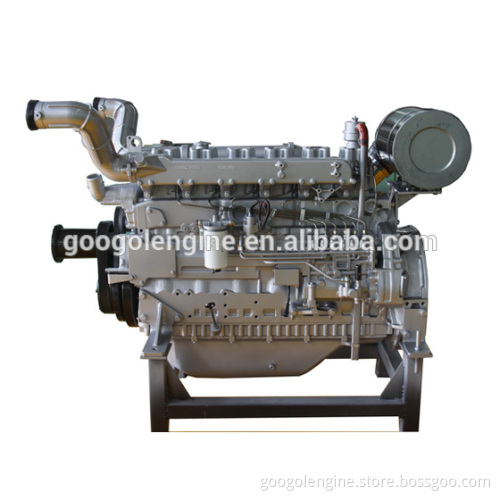

Googol 250kW Diesel Engine For Generator , Pump ,Boat
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing, China (Mainland) |
|---|
bore 128mm, stroke 166mm, 12.8liter
diesel save ,high efficiency
Googol 250kW Diesel Engine For Generator , Pump ,Boat
Engine Model | PTA780G1A | |
Rating Speed | rpm | 1500 |
Standby Output (LTP) | kW | 252 |
Prime Output (PRP) | kW | 230 |
Fan Reduction | kW | 14 |
Typical Generation Standby Output | kW/kVA | 220/275 |
Typical Generation Prime Output | kW/kVA | 200/250 |
Power Factor | 0.8 | |
Aspiration Type | Turbocharger, air-water after-cooler | |
Injection Type | Direct Injection | |
Configuration | In line | |
No. of Cylinders | 6 | |
Displacement | l | 12.8 |
Bore | mm | 128 |
Stroke | mm | 166 |
Compression Ratio | 15.5:1 | |
Piston Speed | m/s | 8.3 |
Rotation Direction (from flywheel) | Counter Clockwise | |
Cooling System | ||
Coolant Capacity for Engine | l | 18 |
Max. Coolant Warning Temperature | °C | 95 |
Max. Coolant Shutdown Temperature | °C | 105 |
Radiator Cooling Flow | m³/min | 410 |
Flow of Coolant pump | m³/h | 19.7 |
Fuel System | ||
Fuel Consumption at 100% of PRP | l/h | 56 |
Intake & Exhaust System | ||
Combustion Air Consumption | m³/min | 24 |
Max. Intake Restriction | kPa | 2 |
Max. Exhaust Temperature | °C | 445 |
Max. Exhaust Back Pressure | Kpa | 2 |
Exhaust Gas Flow | m³/min | 62 |
Exhaust Flange Diameter | mm | 125 |
Engine Dimension | ||
Length | mm | 1745 |
Width | mm | 900 |
Height | mm | 1196 |
Engine Dry Weight w/o Cooling System | kg | 1025 |
Warranty: All equipment is guaranteed for a period of 1000 hours running or 18 months from the date when the generator set has been delivered from the factory. Company Profile : GOOGOL EngineTech Co., Ltd. is a Leading manufacturer of US based latest technology. GOOGOL also set up Chongqing Googol Engine-Tech Co., Ltd based in China. Our Product Range is 230 KW to 2722 KW Diesel Engines, 160 KW to 1800 KW Gas Engines, 200 KW to 2400 KW Dual Fuel Engines with middle speed at 1000rpm, 1200rpm, and high speed at 1500rpm, 1800rpm
Offical Website : www.googolengine.com
