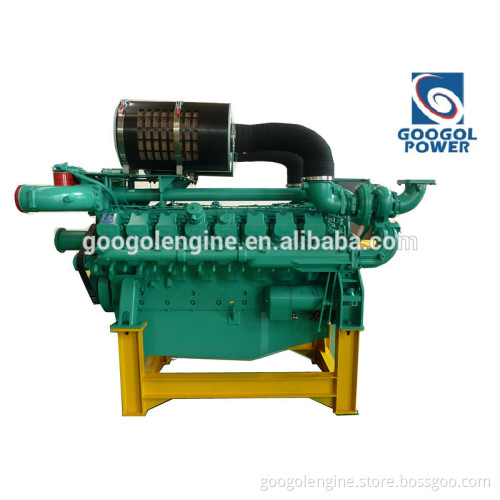

60Hz Googol PTAA1780G2 Small Cylinder V16 Diesel Engine 889kW

Specifications 60Hz Googol PTAA1780G2 Small Cylinder V16 Diesel Engine 889kW

889kW, 1800rpm,60Hz

Generation , Pumping , Marine using

60Hz Googol PTAA1780G2 Small Cylinder V16 Diesel Engine 889kW

Engine Model		PTAA1780-G2
Speed	rpm	1800
Frequency	Hz	60
Rating Output
Standby Output (LTP)	kW	973
Prime Output (PRP)	kW	889
Engine Continuous Power (COP)	kW	719
Fan Reduction	kW	42
Basic Performance Datasheet
Aspiration Type		Turbocharged, air-air aftercooled
Injection Type		Direct Injection
Configuration		Vee
No. of Cylinders		16
Displacement	l	29.2
Bore	mm	128
Stroke	mm	142
Compression Ratio		14.6:1
Cooling System
Coolant Capacity for Engine	l	26
Max. Prenissiable Temperature	°C	90
Max. Coolant Warning Temperature	°C	95
Max. Coolant Shutdown Temperature	°C	105
Thermostat Open Temperature	°C	71
Radiator Cooling Flow	m³/min	1800
Flow of Coolant pump	m³/h	62.35
Fuel System
Governor Type		Electrical
Engine Output at genset prime output	kW	889
Fuel Consumption at 100% of genset prime output	l/h	221.56
Intake & Exhaust System
Combustion Air Consumption	m³/min	94.32
Max. Intake Restriction	KPa	2.5
Max. Exhaust Temperature	°C	695
Max. Exhaust Back Pressure	Kpa	2.5
Exhaust Gas Flow	m³/min	238.69
Exhaust Flange Diameter	mm	150
Engine Dimension
Length	mm	1950
Width	mm	1389
Height	mm	1162
Engine Dry Weight w/o Cooling System	kg	2250

    1. All engine parameters are in accordance with ISO3046, ISO8528.   2. All engine parameters are based on 25°C / 100kPa environment condition.       Standard scope of supply      Note: 1. All engine parameters are in accordance with ISO3046, ISO8528. 2. All engine parameters are based on 25°C / 100kPa environment condition. 3. Application for Power Generation, Marine, Pump Driving, CHP power plant.   Warranty:  All equipment is guaranteed for a period of 1000 hours running or 18 months from the date when the generator set has been delivered from the factory.   Company Profile:    GOOGOL Engine-Tech Co., Ltd. is a Leading manufacturer of US based latest technology. GOOGOL also set up Chongqing GOOGOL Engine-Tech Co., Ltd based in China.    Our Product Range is 230 KW to 2722 KW Diesel Engines, 160 KW to 1800 KW Gas Engines, 200 KW to 2400 KW Dual Fuel Engines with middle speed at 1000rpm, 1200rpm, and high speed at 1500rpm, 1800rpm       Offical Website : www.googolengine.com
