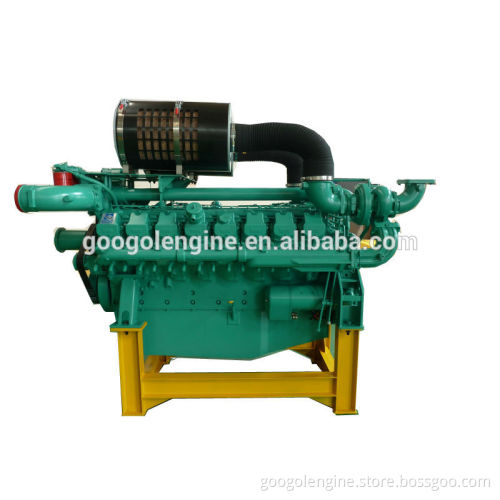

847kW Googol 128*142mm Cylinder Diesel V16 Engine

Specifications 847kW Googol 128*142mm Cylinder Diesel V16 Engine

847kW, 1500rpm,50Hz

Generation , Pumping , Marine using

847kW Googol 128*142mm Cylinder Diesel V16 Engine

Engine Model		PTAA1780-G7
Speed	rpm	1500
Frequency	Hz	50
Rating Output
Standby Output (LTP)	kW	931
Prime Output (PRP)	kW	847
Engine Continuous Power (COP)	kW	677
Fan Reduction	kW	7.5
Basic Performance Datasheet
Aspiration Type		Turbocharged, air-air aftercooled
Injection Type		Direct Injection
Configuration		Vee
No. of Cylinders		16
Displacement	l	29.2
Bore	mm	128
Stroke	mm	142
Compression Ratio		14.6:1
Cooling System
Coolant Capacity for Engine	l	26
Max. Prenissiable Temperature	°C	90
Max. Coolant Warning Temperature	°C	95
Max. Coolant Shutdown Temperature	°C	105
Thermostat Open Temperature	°C	71
Radiator Cooling Flow	m³/min	1650
Flow of Coolant pump	m³/h	51.96
Fuel System
Governor Type		Electrical
Engine Output at genset prime output	kW	847
Fuel Consumption at 100% of genset prime output	l/h	201.67
Intake & Exhaust System
Combustion Air Consumption	m³/min	92.49
Max. Intake Restriction	KPa	2
Max. Exhaust Temperature	°C	698
Max. Exhaust Back Pressure	Kpa	2
Exhaust Gas Flow	m³/min	234.06
Exhaust Flange Diameter	mm	150
Engine Dimension
Length	mm	1950
Width	mm	1389
Height	mm	1162
Engine Dry Weight w/o Cooling System	kg	2250

      1. All engine parameters are in accordance with ISO3046, ISO8528.   2. All engine parameters are based on 25°C / 100kPa environment condition.       Standard scope of supply

Standard engine	Basic engine with 16 cylinder in vertical type
Flywheel	Flywheel for 14” connection
	Teeth of flywheel: 204
	J = 2.2 kgm²
Adaptor housing	SAE 1
Governor	Electronic governor
Cooling system	Air-to-water intercooler
	Fan blade
	Separate mounted radiator (optional)
Exhaust system	1 Turbocharger with counter flange Without exhaust silencer
Filter	1 Air cleaner with restriction indicator
	1 Fuel cartridge filter
	1 Lube oil filter
Electrics system	Electric starter motor 6.6kW, 24VDC
	Starting relay, 24V
	Charging alternator 35A, 28VDC
	Oil pressure sensor with switch
	Coolant temperature sensor with switch
	Speed sensor for governor
Miscellaneous	Green painting as standard
	1 operation manual & Parts Catalogue
	Without tool box

        Note: 1. All engine parameters are in accordance with ISO3046, ISO8528. 2. All engine parameters are based on 25°C / 100kPa environment condition. 3. Application for Power Generation, Marine, Pump Driving, CHP power plant.   Warranty:  All equipment is guaranteed for a period of 1000 hours running or 18 months from the date when the generator set has been delivered from the factory.   Company Profile:    GOOGOL Engine-Tech Co., Ltd. is a Leading manufacturer of US based latest technology. GOOGOL also set up Chongqing GOOGOL Engine-Tech Co., Ltd based in China.    Our Product Range is 230 KW to 2722 KW Diesel Engines, 160 KW to 1800 KW Gas Engines, 200 KW to 2400 KW Dual Fuel Engines with middle speed at 1000rpm, 1200rpm, and high speed at 1500rpm, 1800rpm       Offical Website : www.googolengine.com
