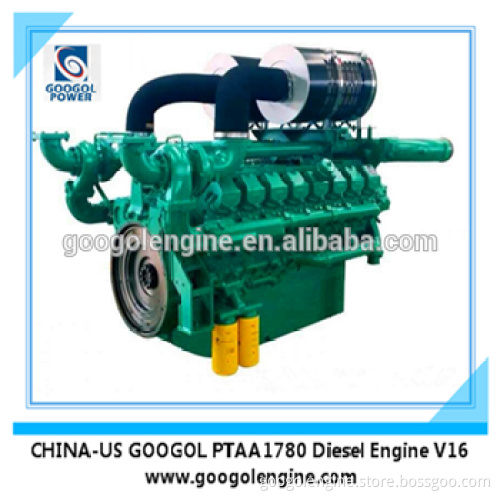

Diesel Engine V16 Air Cooled 798kW 50Hz Engine for Sale

1500rpm Googol PTAA1780G5 Diesel Engine 798kW 50Hz                       HOT SALE

Engine Model		PTAA1780-G5
Speed	rpm	1500
Frequency	Hz	50
Rating Output
Standby Output (LTP)	kW	883
Prime Output (PRP)	kW	798
Engine Continuous Power (COP)	kW	607
Fan Reduction	kW	36
Basic Performance Datasheet
Aspiration Type		Turbocharged, air-air aftercooled
Injection Type		Direct Injection
Configuration		Vee
No. of Cylinders		16
Displacement	l	29.2
Bore	mm	128
Stroke	mm	142
Compression Ratio		14.6:1
Cooling System
Coolant Capacity for Engine	l	26
Max. Prenissiable Temperature	°C	90
Max. Coolant Warning Temperature	°C	95
Max. Coolant Shutdown Temperature	°C	105
Thermostat Open Temperature	°C	71
Radiator Cooling Flow	m³/min	1650
Flow of Coolant pump	m³/h	51.96
Fuel System
Governor Type		Electrical
Engine Output at genset prime output	kW	798
Fuel Consumption at 100% of genset prime output	l/h	190.25
Intake & Exhaust System
Combustion Air Consumption	m³/min	85.54
Max. Intake Restriction	KPa	2
Max. Exhaust Temperature	°C	688
Max. Exhaust Back Pressure	Kpa	2
Exhaust Gas Flow	m³/min	216.46
Exhaust Flange Diameter	mm	150
Engine Dimension
Length	mm	1950
Width	mm	1389
Height	mm	1162
Engine Dry Weight w/o Cooling System	kg	2250

  Note: 1. All engine parameters are in accordance with ISO3046, ISO8528. 2. All engine parameters are based on 25°C / 100kPa environment condition. 3. Application for Power Generation, Marine, Pump Driving, CHP power plant.        Warranty:    All equipment is guaranteed for a period of 1000 hours running or 18 months from the date when the generator set has been delivered from the factory.   Company Profile:    GOOGOL Engine-Tech Co., Ltd. is a Leading manufacturer of US based latest technology. GOOGOL also set up Chongqing GOOGOL Engine-Tech Co., Ltd based in China.    Our Product Range is 230 KW to 2722 KW Diesel Engines, 160 KW to 1800 KW Gas Engines, 200 KW to 2400 KW Dual Fuel Engines with middle speed at 1000rpm, 1200rpm, and high speed at 1500rpm, 1800rpm
