1000kW Hot Sale Multi-Cylinder Diesel Engine

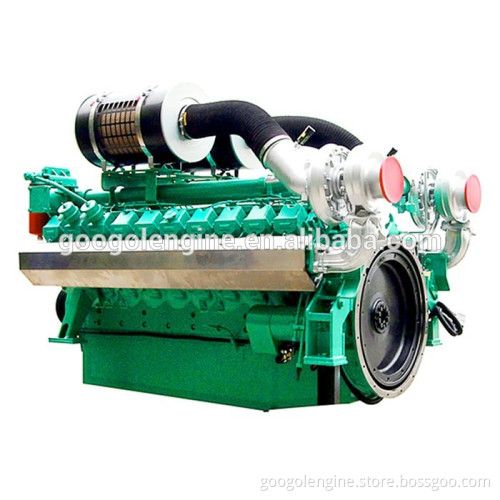

1500rpm Googol PTAA2230G1 Diesel Engine 1000kW 50Hz

Engine Model		PTAA2230G1
Speed	rpm	1500
Frequency	Hz	50
Rating Output
Engine Standby Output (LTP)	kW	1110
Engine Prime Output (PRP)	kW	1000
Engine Continuous Power (COP)	kW	810
Typical Generation Standby Output	kW	1000
Typical Generation Prime Output	kW	900
Typical Generation Continuous Output	kW	720
Basic Performance Datasheet
Aspiration Type		Turbocharger, air-air aftercooler
Injection Type		Direct Injection
Configuration		Vee
No. of Cylinders		20
Displacement	l	36.5
Bore	mm	128
Stroke	mm	142
Compression Ratio		15:1
Piston Speed	m/s	7.1
Number of Flywheel Teeth		204
Cooling System
Coolant Capacity for Engine	l	40
Max. Permissible Temperature	°C	90
Max. Coolant Warning Temperature	°C	95
Max. Coolant Shutdown Temperature	°C	105
Thermostat Open Temperature	°C	71
Fuel System
Governor Type		Electrical
Engine Output at genset prime output	kW	1000
Fuel Consumption at 25% of  genset prime output	l/h	73.70
Fuel Consumption at 50% of genset prime output	l/h	122.83
Fuel Consumption at 75% of genset prime output	l/h	175.56
Fuel Consumption at 100% ofgenset prime output	l/h	231.76
Lowest Fuel Consumption Ratio	g/kW.hr	193.52
Intake & Exhaust System(On Standby Output)
Combustion Air Consumption	m³/min	83.25
Max. Intake Restriction	KPa	5
Exhaust Temperature (Before Turbo)	°C	675
Exhaust Temperature (After Turbo)	°C	505
Max. Exhaust Back Pressure	Kpa	5
Engine Dimension
Length	mm	2250
Width	mm	1389
Height	mm	1162
Engine Dry Weight w/o Cooling System	kg	2750

  Note: 1. All engine parameters are in accordance with ISO3046, ISO8528. 2. All engine parameters are based on 25°C / 100kPa environment condition. 3. Application for Power Generation, Marine, Pump Driving, CHP power plant.     Warranty:    All equipment is guaranteed for a period of 1000 hours running or 18 months from the date when the generator set has been delivered from the factory.   Company Profile:    GOOGOL Engine-Tech Co., Ltd. is a Leading manufacturer of US based latest technology. GOOGOL also set up Chongqing GOOGOL Engine-Tech Co., Ltd based in China.    Our Product Range is 230 KW to 2722 KW Diesel Engines, 160 KW to 1800 KW Gas Engines, 200 KW to 2400 KW Dual Fuel Engines with middle speed at 1000rpm, 1200rpm, and high speed at 1500rpm, 1800rpm        Welcome to our website: googolengine.com   Our Company Video:  https://www.youtube.com/watch?v=ZiOmhkKbq-g
