Turbocharged Small Diesel Engine for Generator 1100kW

1800rpm Googol PTAA2230G2 Diesel Engine 1100kW 60Hz

Engine Model		PTAA2230G2
Speed	rpm	1800
Frequency	Hz	60
Rating Output
Engine Standby Output (LTP)	kW	1238
Engine Prime Output (PRP)	kW	1111
Engine Continuous Power (COP)	kW	956
Typical Generation Standby Output	kW	1120
Typical Generation Prime Output	kW	1000
Typical Generation Continuous Output	kW	850
Typical  Alternator Efficiency	≥	95.0%
Basic Performance Datasheet
Aspiration Type		Turbocharger, air-air aftercooler
Injection Type		Direct Injection
Configuration		Vee
No. of Cylinders		20
Displacement	l	36.5
Bore	mm	128
Stroke	mm	142
Compression Ratio		15:1
Number of Flywheel Teeth		204
Cooling System
Coolant Capacity for Engine	l	40
Max. Permissible Temperature	°C	90
Max. Coolant Warning Temperature	°C	95
Max. Coolant Shutdown Temperature	°C	105
Thermostat Open Temperature	°C	71
Fuel System
Governor Type		Electrical
Engine Output at genset prime output	kW	1111
Fuel Consumption at 25% of  genset prime output	l/h	85.51
Fuel Consumption at 50% of genset prime output	l/h	142.52
Fuel Consumption at 75% of genset prime output	l/h	203.69
Fuel Consumption at 100% ofgenset prime output	l/h	268.90
Lowest Fuel Consumption Ratio	g/kW.hr	202.10
Intake & Exhaust System(On Standby Output)
Combustion Air Consumption	m³/min	103.17
Max. Intake Restriction	KPa	5
Exhaust Temperature (Before Turbo)	°C	700
Exhaust Temperature (After Turbo)	°C	540
Max. Exhaust Back Pressure	Kpa	5
Electrical System
Charging Alternator Voltage	V	28
Charging Alternator Capacity	A	35
Starting Voltage	V	24
Engine Dimension
Length	mm	2250
Width	mm	1389
Height	mm	1162
Engine Dry Weight w/o Cooling System	kg	2750

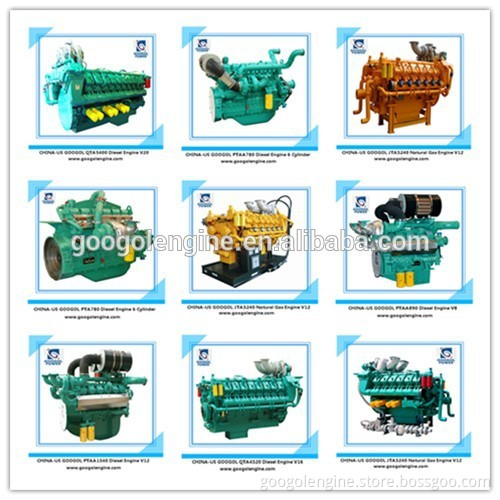

    Note: 1. All engine parameters are in accordance with ISO3046, ISO8528. 2. All engine parameters are based on 25°C / 100kPa environment condition. 3. Application for Power Generation, Marine, Pump Driving, CHP power plant.     Warranty:    All equipment is guaranteed for a period of 1000 hours running or 18 months from the date when the generator set has been delivered from the factory.   Company Profile:    GOOGOL Engine-Tech Co., Ltd. is a Leading manufacturer of US based latest technology. GOOGOL also set up Chongqing GOOGOL Engine-Tech Co., Ltd based in China.    Our Product Range is 230 KW to 2722 KW Diesel Engines, 160 KW to 1800 KW Gas Engines, 200 KW to 2400 KW Dual Fuel Engines with middle speed at 1000rpm, 1200rpm, and high speed at 1500rpm, 1800rpm       Welcome to Our Website: www.googolengine.com Our Company Video:  https://www.youtube.com/watch?v=ZiOmhkKbq-g
