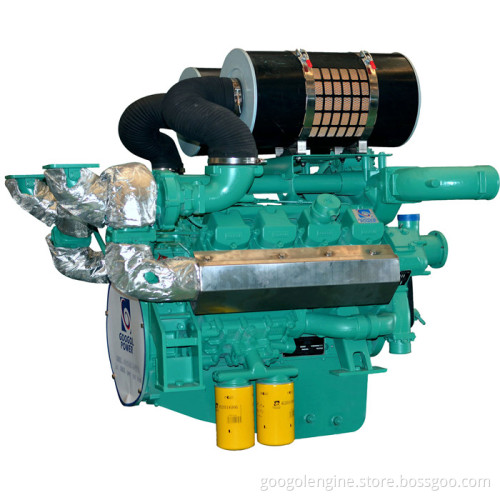

Googol Engine PTA890 Series 491KW 1500RPM 50Hz

Specifications Googol Engine PTA890 Series 491KW 1500RPM 50Hz

50Hz ,Diesel save ,high electric efficiency

suit for generator ,pump

Googol Engine PTA890 Series 491KW 1500RPM 50Hz   Prime Power: 448kW-504kW Standby Power: 491kW-557kW   1,Engine Data Sheet:

Engine Model		PTAA890-G1
Speed	rpm	1500
Frequency	Hz	50
Rating Output
Standby Output (LTP)	kW	491
Prime Output (PRP)	kW	448
Engine Continuous Power (COP)	kW	366
Fan Reduction	kW	20
Basic Performance Datasheet
Aspiration Type		Turbocharged, air-air aftercooled
Injection Type		Direct Injection
Configuration		Vee
No. of Cylinders		8
Displacement	l	14.6
Bore	mm	128
Stroke	mm	142
Compression Ratio		14.6:1
Cooling System
Coolant Capacity for Engine	l	20
Max. Prenissiable Temperature	°C	90
Max. Coolant Warning Temperature	°C	95
Max. Coolant Shutdown Temperature	°C	105
Thermostat Open Temperature	°C	71
Radiator Cooling Flow	m³/min	410
Flow of Coolant pump	m³/h	25.98
Fuel System
Governor Type		Electrical
Engine Output at genset prime output	kW	448
Fuel Consumption at 100% ofgenset prime output	l/h	111.60
Intake & Exhaust System
Combustion Air Consumption	m³/min	30.30
Max. Intake Restriction	KPa	2
Max. Exhaust Temperature	°C	585
Max. Exhaust Back Pressure	Kpa	2
Exhaust Gas Flow	m³/min	83.50
Exhaust Flange Diameter	mm	2*100
Engine Dimension
Length	mm	1484
Width	mm	1389
Height	mm	1162
Engine Dry Weight w/o Cooling System	kg	980

  Note:     1. All engine parameters are in accordance with ISO3046, ISO8528.     2. All engine parameters are based on 25°C / 100kPa environment condition.     3. Application for Power Generation, Marine, Pump Driving, CHP power plant.     2,Supply Scope :   3,Warranty:              All equipment is guaranteed for a period of 1000 hours running or 18 months from the date when the generator set has been delivered from the factory.     4,Company Profile :                 GOOGOL Engine-Tech Co., Ltd. is a Leading manufacturer of US based latest technology. GOOGOL also set up Chongqing Googol Engine-Tech Co., Ltd based in China.        Our Product Range is 230 KW to 2722 KW Diesel Engines, 160 KW to 1800 KW Gas Engines, 200 KW to 2400 KW Dual Fuel Engines with middle speed at 1000rpm, 1200rpm, and high speed at 1500rpm, 1800rpm       Offical Website : www.googolengine.com
