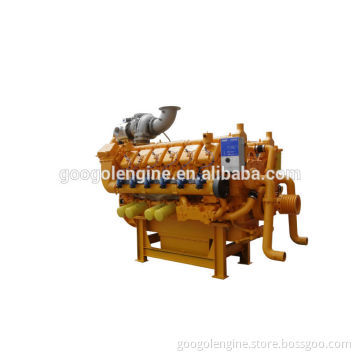

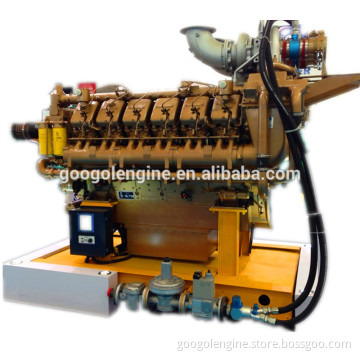

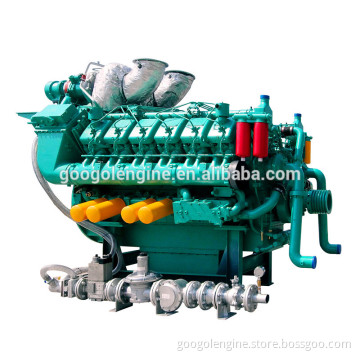

V12 Cylinder Googol QTA3240BG5 Dual Fuel Engine

Googol QTA3240-BG5 Dual Fuel  Engine 1422kW 1500rpm

Engine Model		QTA3240-BG5
Speed	rpm	1500
Frequency	Hz	50
Rating Output
Engine Standby Output (LTP)	kW	1563
Engine Prime Output (PRP)	kW	1422
Engine Continuous Power (COP)	kW	1229
Basic Performance Datasheet
Aspiration Type		Turbocharger, air-water aftercooler
Turbo Type		TPS
Piston Type		special material
Injection Type		Direct Injection
Configuration		Vee
No. of Cylinders		12
Displacement	l	53.1
Bore	mm	170
Stroke	mm	195
Compression Ratio		13.5:1/14:1
Cooling System
Coolant Capacity for Engine	l	100
Radiator Cooling Flow	m³/min	2400
Flow of Coolant pump	m³/h	48+45
Heat dissipation (engine radiator)	kW	506
Heat dissipation (CAC)	kW	321
Heat dissipation (convection)	kW	84
Heat Rejection to Exhaust	kW	506
Fuel &Gas System
Governor Type		Electrical
Engine Output at genset prime output	kW	1422
Fuel &gas Consumption at 100% of genset prime output	l/h	97.60
Intake & Exhaust System
Combustion Air Consumption	m³/min	143.62
Max. Intake Restriction	KPa	2
Max. Exhaust Temperature (After Turbo)	°C	480
Max. Exhaust Back Pressure	KPa	2
Exhaust Gas Flow	m³/min	363.43
Engine Dimension
Length	mm	3096
Width	mm	1459
Height	mm	1820
Engine Dry Weight w/o Cooling System	kg	5300

    1. All engine parameters are in accordance with ISO3046, ISO8528.   2. All engine parameters are based on 25°C / 100kPa environment condition.       Note: 1. All engine parameters are in accordance with ISO3046, ISO8528. 2. All engine parameters are based on 25°C / 100kPa environment condition. 3. Application for Power Generation, Marine, Pump Driving, CHP power plant.     Warranty:  All equipment is guaranteed for a period of 1000 hours running or 18 months from the date when the generator set has been delivered from the factory.   Company Profile:    GOOGOL Engine-Tech Co., Ltd. is a Leading manufacturer of US based latest technology. GOOGOL also set up Chongqing GOOGOL Engine-Tech Co., Ltd based in China.    Our Product Range is 230 KW to 2722 KW Diesel Engines, 160 KW to 1800 KW Gas Engines, 200 KW to 2400 KW Dual Fuel Engines with middle speed at 1000rpm, 1200rpm, and high speed at 1500rpm, 1800rpm
