1050kW 1300KVA 1800RPM Diesel Engine for Generator

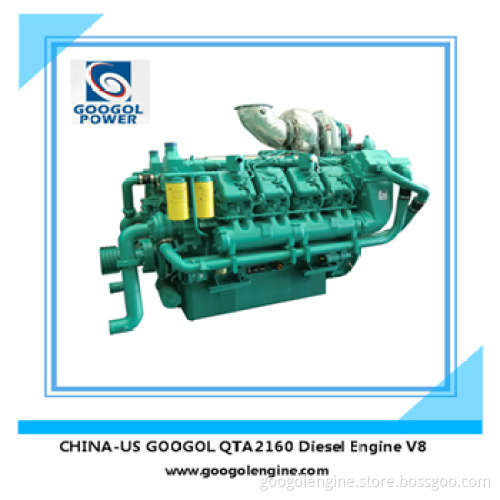

1800rpm 60Hz Googol QTA2160G4 Diesel Engine 1053kW                            Promotion

Engine Model		QTA2160-G4
Speed	rpm	1800
Frequency	Hz	60
Rating Output
Standby Output (LTP)	kW	1158
Prime Output (PRP)	kW	1053
Engine Continuous Power (COP)	kW	926
Fan Quantity		4
Fan Reduction	kW	9.0
Basic Performance Datasheet
Aspiration Type		Turbocharger, air-water aftercooler
Injection Type		Direct Injection
Configuration		Vee
No. of Cylinders		8
Displacement	l	35.4
Bore	mm	170
Stroke	mm	195
Compression Ratio		13.5:1/14:1
Cooling System
Coolant Capacity for Engine	l	70
Max. Permissible Temperature	°C	82
Max. Coolant Warning Temperature	°C	85
Max. Coolant Shutdown Temperature	°C	90
Radiator Cooling Flow	m³/min	2200
Fuel System
Governor Type		Electrical
Engine Output at genset prime output	kW	1053
Fuel Consumption at 100% of PRP	l/h	253.70
Intake & Exhaust System(on standby power)
Combustion Air Consumption	m³/min	116.85
Max. Intake Restriction	KPa	2
Max. Exhaust Temperature (Before Turbo)	°C	680
Max. Exhaust Temperature (After Turbo)	°C	550
Max. Exhaust Back Pressure	KPa	2
Engine Dimension
Length	mm	2596
Width	mm	1459
Height	mm	1820
Engine Dry Weight w/o Cooling System	kg	3600

  Note: 1. All engine parameters are in accordance with ISO3046, ISO8528. 2. All engine parameters are based on 25°C / 100kPa environment condition. 3. Application for Power Generation, Marine, Pump Driving, CHP power plant.                 Warranty:    All equipment is guaranteed for a period of 1000 hours running or 18 months from the date when the generator set has been delivered from the factory.   Company Profile:    GOOGOL Engine-Tech Co., Ltd. is a Leading manufacturer of US based latest technology. GOOGOL also set up Chongqing GOOGOL Engine-Tech Co., Ltd based in China.    Our Product Range is 230 KW to 2722 KW Diesel Engines, 160 KW to 1800 KW Gas Engines, 200 KW to 2400 KW Dual Fuel Engines with middle speed at 1000rpm, 1200rpm, and high speed at 1500rpm, 1800rpm            Welcome to Our Website: www.googolengine.com
