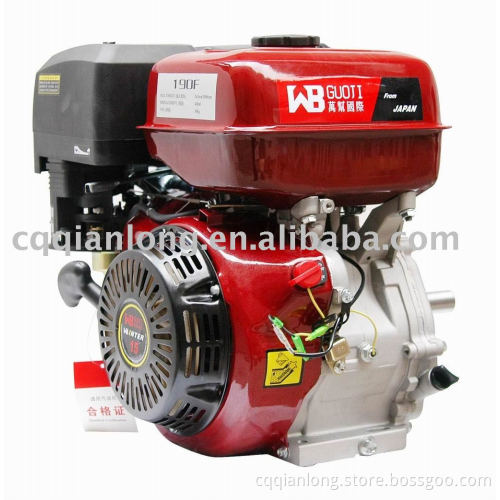

188F one cylinder gasoline engine



Model	QLR188/190F(E)
Engine Type	OHV25°Tilt Single Cylinder ,Forced Air Cooling,4-Stroke
Bore×Stroke  mm×mm	88×64
Displacement  ml	389
Compression Ratio	8:00:01
Max power <HP(kw) / rpm	13.0-16HP/3600
Max torque (N.m/rpm)	2.7/2500
Ignition System	T.C.I
Staring System	Recoil, Recoil+self
Fuel Tank Capacity  L	6.5
Fuel Consumption	230g/HP.h
Oil Capacity  L	1.1
Net Dimension  L×W×H  mm	410×405×443
Overall Dimension  L×W×H  mm	495×425×505
Net Weight  kg	31
Gross Weight  kg	33
20FT  unit	240
40FT  unit	480
40HQ Container  unit	600

Features: For years, the Overhead Valve general-purpose engine has been an industry standard for reliability and durability to thousands of people, on thousands of applications. QIANLONG engines start easily, so you get to work quickly. They are also fuel-efficient. Meets EPA and CARB emission levels standards. Common applications: Pressure washers, compressors, go-karts, generators, water pumps, cement mixers, concrete saws, and chipper/shredders. Gurantee:1-year limited warranty.
