Large LCD auto report three channel ecg machine

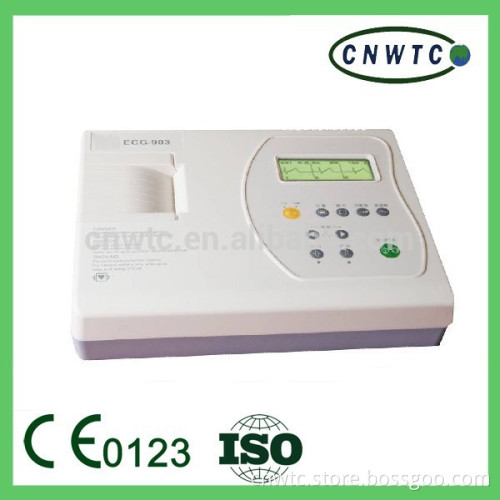

Product Description   What is Details of Our  Large LCD auto report  three channel ecg machine?   Large LCD auto report  three channel ecg machine   Specification:   ECG-903 1. Three channel with interpretive
2. Build in rechargeable Li battery
3. Chinese/English language
4. Simultaneous 12 leads
5. 192X64 graphic LCD
6. Paper size: 63mmX20/30m
7. Built in RS232 interface (USB is optional) What is Specification of Our  Large LCD auto report  three channel ecg machine?

Items	specification
Lead	standard 12 leads
lead acquisition	synchronously 12 leads
Data acquisition	18bit/1000Hz
Record mode	Manual mode;  AUTO1;  AUTO2;  AUTO3
Filter	AC, EMG,Drift Fliter
CMRR	≥100dB(with AC filter)
Input circuit	Floating; Protection circuit against Defibrillator effect
Input circuit current	≤0.1μA
Input Impedance	≥2.5MΩ
Patient current leakage	<10μA
Calibrating voltage	1mV±2%
Voltage tolerance	±500mV
Time constant	>3.2s
Frequency response	0.05 ~150Hz
Noise level	≤15μVp-p
Sensitivity valve	≤20μV
Inter-Channel Interference	≤0.5mm
Paper speed	25,50mm/s(±3%)
Sensitivity	AUTO,2.5,5,10,20mm/mV
Recording mode	Thermal Array printing
Paper specification	63mmx30m,roll
LCD display	192x64 graphic LCD,display status&waveform.
Safety classification	IEC60601-1 class I, type CF
Power supply	AC : 110V/220V/110~230V,50/60Hz±1Hz;30VA
	DC : 14.4V(2000mAh) rechargeable Li-ion battery
Fuse	AC extend T500mA/125V     5x20mm AC extend T400mA/250V     5x20mm AC extend T2.0A/250V         5x20mm

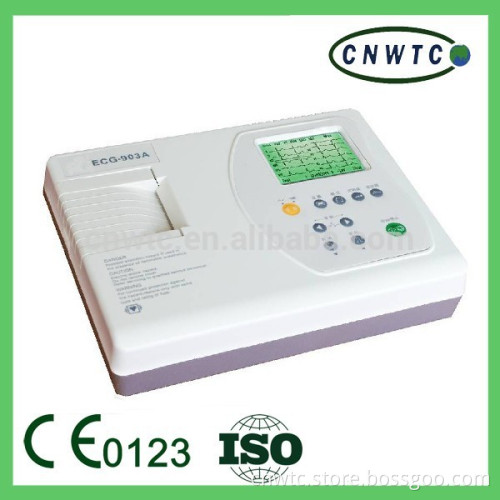

  Products Photos     ECG-903A  1. Three channel with interpretive
2. Build in rechargeable Li battery
3. Chinese/English language
4. Simultaneous 12 leads
5. 320X240 graphic LCD, 3.8 inch screen
6. Paper size: 63mmX20/30m
7. Built in RS232 interface (USB is optional)
8. 128 patients save/copy/communication Specification

Items	specification
Lead	standard 12 leads
lead acquisition	synchronously 12 leads
Data acquisition	18bit/1000Hz
Record mode	Manual mode;  AUTO1;  AUTO2;  AUTO3
Filter	AC, EMG,Drift Fliter
CMRR	≥100dB(with AC filter)
Input circuit	Floating; Protection circuit against Defibrillator effect
Input circuit current	≤0.1μA
Input Impedance	≥2.5MΩ
Patient current leakage	<10μA
Calibrating voltage	1mV±2%
Voltage tolerance	±500mV
Time constant	>3.2s
Frequency response	0.05 ~150Hz
Noise level	≤15μVp-p
Sensitivity valve	≤20μV
Inter-Channel Interference	≤0.5mm
Paper speed	25,50mm/s(±3%)
Sensitivity	AUTO,2.5,5,10,20mm/mV
Recording mode	Thermal Array printing
Paper specification	63mmx30m,roll
LCD display	.320x240 graphic LCD,display status&waveform.
Safety classification	IEC60601-1 class I, type CF
Power supply	AC : 110V/220V/110~230V,50/60Hz±1Hz; 30VA
	DC: 14.4V(2000mAh) rechargeable Li-ion battery
Fuse	AC extend T500mA/125V     5x20mm AC extend T400mA/250V     5x20mm AC extend T2.0A/250V         5x20mm

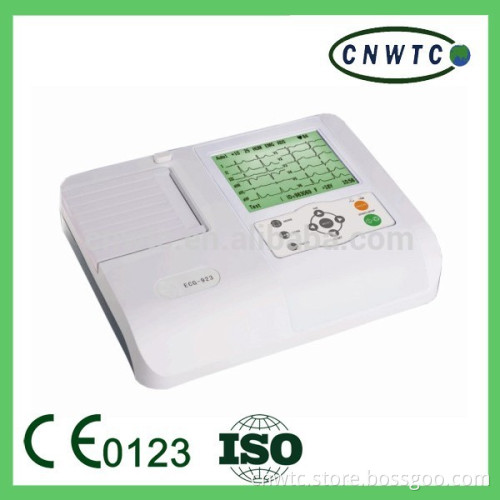

    ECG-923 1. Three channel ecg  with interpretive 2. Build in rechargeable Li battery 3. Chinese/English language 4. Simultaneous 12 leads 5. 320X240 graphic LCD, 5.7 inch screen 6. Paper size: 80mmX20/30m 7. Built in RS232 interface (USB is optional) 8. 128 patients save/copy/communication   Specification

Items	specification
Lead	standard 12 leads
lead acquisition	synchronously 12 leads
Data acquisition	18bit/1000Hz
Record mode	Manual mode;  AUTO1;  AUTO2;  AUTO3
Filter	AC, EMG,Drift Fliter
CMRR	≥100dB(with AC filter)
Input circuit	Floating; Protection circuit against Defibrillator effect
Input circuit current	≤0.1μA
Input Impedance	≥2.5MΩ
Patient current leakage	<10μA
Calibrating voltage	1mV±2%
Voltage tolerance	±500mV
Time constant	>3.2s
Frequency response	0.05 ~150Hz
Noise level	≤15μVp-p
Sensitivity valve	≤20μV
Inter-Channel Interference	≤0.5mm
Paper speed	25,50mm/s(±3%)
Sensitivity	AUTO,2.5,5,10,20mm/mV
Recording mode	Thermal Array printing
Paper specification	80mmx30m,roll
LCD display	.320x240 graphic LCD,display status&waveform.
Safety classification	IEC60601-1 class I, type CF
Power supply	AC :110V/220V/110~230V,50/60Hz±1Hz;40VA
	DC :14.4V(2000mAh) rechargeable Li-ion battery
Fuse	AC extend T500mA/125V     5x20mm AC extend T400mA/250V     5x20mm AC extend T2.0A/250V         5x20mm

          Packaging & Shipping       Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-30 days for batch goods.

Payment Terms
1. Payment: Trade Insurance, T/T, Western Union, 30% deposits; 70% balance before delivery.
2. MOQ: 1set     Company Information   Our Company        Our Services   Why Choose Us? 1.We are Alibaba Assessed 6 years Gold Supplier. 2.We are a factory manufacturing plastic labwares, glass labwares, medical disposables, best production capability, best quality control, Best Service. 3.Inspected by the Inspection Institution of Bureau Veritas Certification. 4.100% QC inspection Before Shippment. 5. CE/UL/FCC listed,competitve price. Our Customers and Exhitbions?         FAQ   FAQ 1. Does this ECG can connect with PC?      yes, it have two interface, one is RS232, one is USB 2. Is it can be auto reported?     Yes, it have auto report after testing 3. What's warranty time for products?     Whole machine is 1 year. 1. Does this ECG can connect with PC?      yes, it have two interface, one is RS232, one is USB 2. Is it can be auto reported?     Yes, it have auto report after testing 3. What's warranty time for products?     Whole machine is 1 year.   Contact Us
