Ce approved Digital Single channel ECG Machine

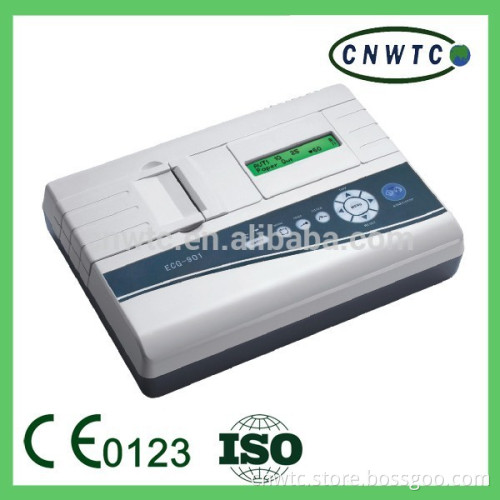

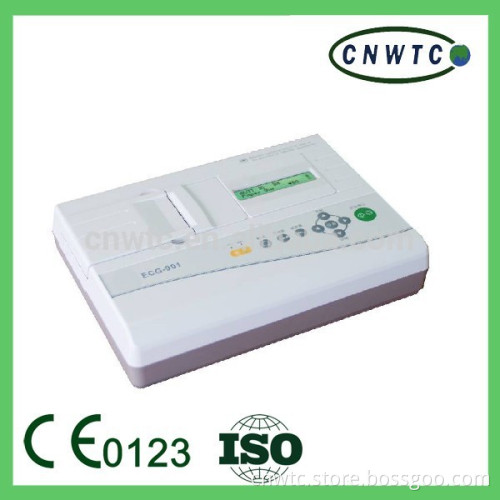

  Product Description   What is Details of Our Cheap Single channel ECG Machine ?   Singel Channel ECG machine   Specification:  ECG-901 is single channel ecg with measurement report Build in rechargeable Ni-MH battery Chinese/English language Simultaneous 12 leads 20X2 character LCD Paper size: 50mmX20/30m Built in RS232 interface (USB is optional)   What is Specification of Our Cheap Single channel ECG Machine ?   ECG-901 Specification

Items	specification
Lead	standard 12 leads
lead acquisition	synchronously 12 leads
Data acquisition	18bit/1000Hz
Record mode	Manual mode; Auto 1; Auto 2; Auto 3
Filter	AC, EMG,Drift Filter
CMRR	100dB(with AC filter)
Input circuit	Floating; Protection circuit against Defibrillator effect
Input circuit current	≤0.1μA
Input Impedance	≥2.5MΩ
Patient current leakage	10μA
Calibrating voltage	1mV±2%
Voltage Tolerance	±500mV
Time constant	3.2s
Frequency response	0.05 ~150Hz
Noisy level	≤ 15μVp-p
Sensitivity valve	≤20μV
Inter-Channel Interference	≤0.5mm
Paper speed	25,50mm/s(±3%)
Sensitivity	AUTO,2.5,5,10,20mm/mV
Recording mode	Thermal Array printing
Paper specification	50mmx20m,roll
LCD display	20x2 character LCD,display status.
Safety classification	IEC60601-1 class I, type CF
Power supply	AC  110V/220V/85~265V,50/60Hz±1Hz;30VA
	DC 12V(1500mAh) rechargeable Ni-MH battery
Fuse	AC extend T500mA/125V     5x20mm AC extend T250mA/250V     5x20mm AC extend T2.0A/250V         5x20mm

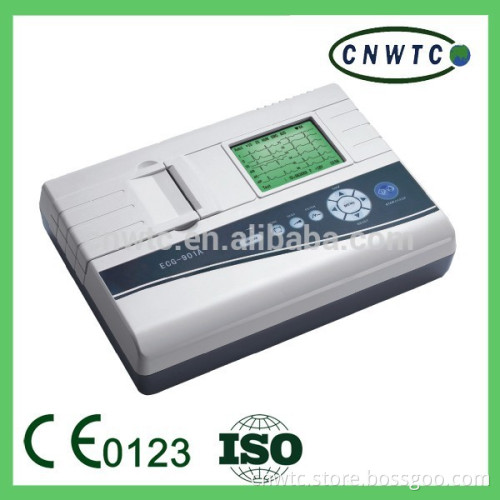

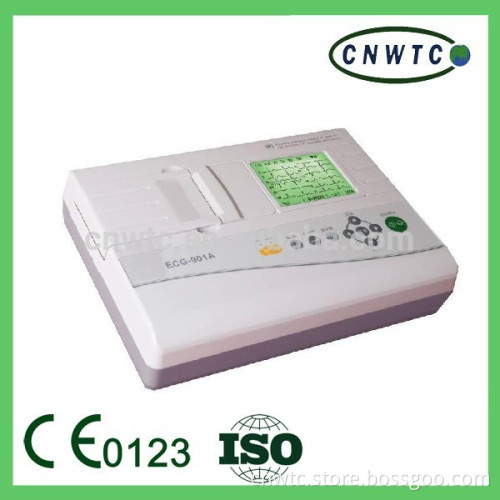

  ECG-901A is single channel ecg with measurement report Build in rechargeable Ni-MH battery Chinese/English language Simultaneous 12 leads 320X240 graphic LCD, 3.8 inch screen Paper size: 50mmX20/30m Built in RS232 interface (USB is optional) 8 Patients save/copy/communication   Products Photos        Specification

Items	specification
Lead	standard 12 leads
lead acquisition	synchronously 12 leads
Data acquisition	18bit/1000Hz
Record mode	Manual mode; Auto 1; Auto 2; Auto 3
Filter	AC, EMG,Drift Filter
CMRR	100dB(with AC filter)
Input circuit	Floating; Protection circuit against Defibrillator effect
Input circuit current	≤0.1μA
Input Impedance	≥2.5MΩ
Patient current leakage	10μA
Calibrating voltage	1mV±2%
Voltage Tolerance	±500mV
Time constant	3.2s
Frequency response	0.05 ~150Hz
Noisy level	≤15μVp-p
Sensitivity valve	≤20μV
Inter-Channel Interference	≤0.5mm
Paper speed	25,50mm/s(±3%)
Sensitivity	AUTO,2.5,5,10,20mm/mV
Recording mode	Thermal Array printing
Paper specification	50mmx20m,roll
LCD display	320x240 graphic LCD,display status&waveform.
Safety classification	IEC60601-1 class I, type CF
Power supply	AC  110V/220V/85~265V,50/60Hz±1Hz;30VA
	DC 12V(1500mAh) rechargeable Ni-MH battery
Fuse	AC extend T500mA/125V     5x20mm AC extend T250mA/250V     5x20mm AC extend T2.0A/250V         5x20mm

                  Packaging & Shipping     Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-30 days for batch goods.

Payment Terms
1. Payment: Trade Insurance, T/T, Western Union, 30% deposits; 70% balance before delivery.
2. MOQ: 1set     Company Information   Our Company        Our Services Why Choose Us? 1.We are Alibaba Assessed 6 years Gold Supplier. 2.We are a factory manufacturing plastic labwares, glass labwares, medical disposables, best production capability, best quality control, Best Service. 3.Inspected by the Inspection Institution of Bureau Veritas Certification. 4.100% QC inspection Before Shippment. 5. CE/UL/FCC listed,competitve price. Our Customers and Exhitbions?         FAQ   FAQ FAQ 1. Does this ECG can connect with PC?      yes, it have two interface, one is RS232, one is USB 2. Is it can be auto reported?     Yes, it have auto report after testing 3. What's warranty time for products?     Whole machine is 1 year. 1. Does this ECG can connect with PC?      yes, it have two interface, one is RS232, one is USB 2. Is it can be auto reported?     Yes, it have auto report after testing 3. What's warranty time for products?     Whole machine is 1 year.   Contact Us
