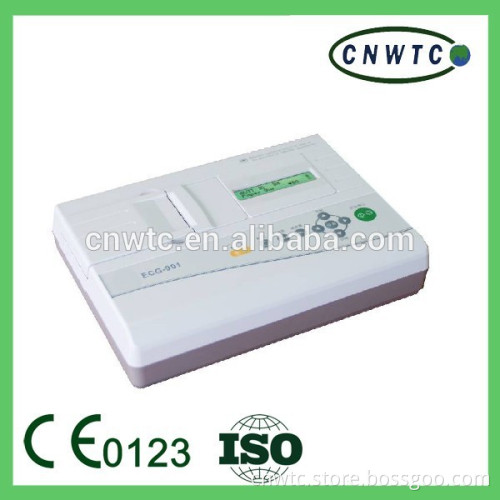

ECG-901 single Channel machine

ECG-901 single Channel machine   What is Details of our ECG-901 single Channel machine?   Single channel with measurement report
Build in rechargeable Ni-MH battery
Chinese/English language
Simultaneous 12 leads
20X2 character LCD
Paper size: 50mmX20/30m
Built in RS232 interface (USB is optional) Product Description What is the Specifications of our ECG-901 single Channel machine? EKG-901 Specification

Items	specification
Lead	standard 12 leads
lead acquisition	synchronously 12 leads
Data acquisition	18bit/1000Hz
Record mode	Manual mode; Auto 1; Auto 2; Auto 3
Filter	AC, EMG,Drift Filter
CMRR	100dB(with AC filter)
Input circuit	Floating; Protection circuit against Defibrillator effect
Input circuit current	≤0.1μA
Input Impedance	≥2.5MΩ
Patient current leakage	10μA
Calibrating voltage	1mV±2%
Voltage Tolerance	±500mV
Time constant	3.2s
Frequency response	0.05 ~150Hz
Noisy level	≤ 15μVp-p
Sensitivity valve	≤20μV
Inter-Channel Interference	≤0.5mm
Paper speed	25,50mm/s(±3%)
Sensitivity	AUTO,2.5,5,10,20mm/mV
Recording mode	Thermal Array printing
Paper specification	50mmx20m,roll
LCD display	20x2 character LCD,display status.
Safety classification	IEC60601-1 class I, type CF
Power supply	AC  110V/220V/85~265V,50/60Hz±1Hz;30VA
	DC 12V(1500mAh) rechargeable Ni-MH battery
Fuse	AC extend T500mA/125V     5x20mm AC extend T250mA/250V     5x20mm AC extend T2.0A/250V         5x20mm

  Product Detail Photos       Packaging & Shipping Packaging and Shipping Packaging:  1 unit per packing,4 units per big carton                       380mmX300mmX210mm
                        Weight:4.3kg(gross); 3.27kg(net) Shipping:   1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;   2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;   3. Customers specifying freight forwarders or negotiable shipping methods.   4. Delivery Time: 7 days for samples; 15-20 days for batch goods.   Our Services Why Choose Us? 1, We are Alibaba Assessed 7 years Gold Supplier.   2.We have best production capability ,best quality control, Best Service .   3. CE certificate and competitve price. Company Products List Company Information Company  View Our Certifications     Company  Exhibitions   CNWTC won CHAMPION in Alibaba Competition   FAQ   FAQ Q1.: What is your MOQ for ECG-901 single Channel machine ? A: 2sets for MOQ Q2: What is your delivery date?
A: Normally, the delivery date is 10-15 days .
Q3: What is your payment term?
A: payment term is 30%T/T deposit in advance, 70% balance before shipment.
