three channel ekg

Get Latest Price

Delivery Time:: 5 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing, China (Mainland)

Product Description

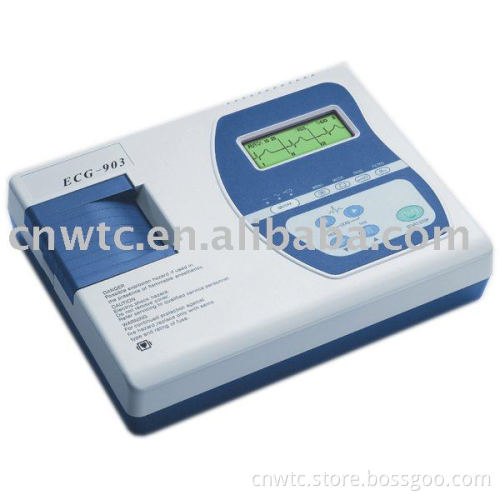

Single/Three Channel Digital ECG Machine
EKG-903(Without interpretative/With Interpretative):

1. Features

Single/Three channel digital ECG machine with measurement Simultaneous 12 leads acquisition Multiple operation mode(Manual/Anto/Ref.Lead) LCD to display operation status and ECG waveform Built in RS232 interface AC/DC power, Built in rechargable Lithium battery 2. Specifications Lead Standard 12 leads Acquisition Simultaneous 12 leads Resolution 12bit/1000Hz Operation mode Manual Mode, 3 Auto Modes(with measurement report) Filter AC, EMG filter Drift filter Anti-Drift System CMMR >60dB >100dB(with AC filter) Input circuit Floating, Protection circuit against Defibrillator effect Input circuit current ≤0.1μA Input Impedance >50MΩ Patient Current leakage <10μA Calibrating voltage 1mV+3% Time constant >3.2s Frequency response 0.05Hz-150Hz Noise level ≤15μVp-p Threshold ≤20μV Paper speed 25,50mm/s(+3%) Sensitivity Auto, 2.5,10,20mm/mV Recorder High resolution thermal printer Paper specification 63mm×30m, roll LCD display Display menu, operation status and ECG waveform Safety level IEC60601-1classI, type CF Power supply AC220V/110V+10%50/60Hz+1Hz30VA DC14.4V-1200mAh rechargeable lithium battery
