EPA ATV QUAD
- Delivery Time:
- 35 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Chongqing, China (Mainland) |
|---|
Product Description
Product Description
Specifications Good Quality with Safety Equipment,Competitive Price.
Service Parts are Available in the Lifetime
Service Parts are Available in the Lifetime

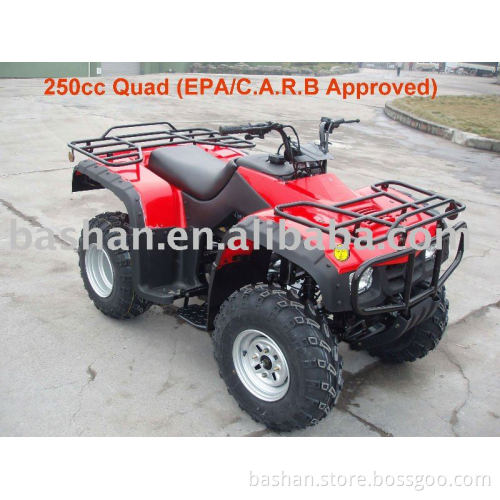

| MODEL No: CK250S-29 | |
| 2012 EPA/C.A.R.B &ANSI/SVIA-1-2007 SAFETY STANDERD | |
| Engine | |
| Type: | single cylinder, water-cooling, four-stroke |
| Ignition mode: | CDI |
| Compression proportion: | 10.5:1 |
| Start mode: | electric |
| Fuel tank capacity: | 11L |
| Transmission mode: | shaft drive |
| Power: | 10.5kW/7,500rpm |
| Max. torque | 15Nm/5,500rpm |
| Min. ground clearance: | 155mm |
| Max. speed | ≥55km/h |
| Power source: | 12V, 14Ah |
| Transmission: | 4 gears with reverse gear, manual clutch |
| Cylinder size: | 63.5 x 62.2mm |
| Engine oil: | 1.3L |
| Gear oil: | 0.25L |
| Lubrication: | press splash |
| Displacement: | 246.9ml |
| Parking trig: | mechanical lock |
| Chassis | |
| Front wheels: | 23 x 7 - 10 |
| Rear wheels: | 22 x 10 - 10 |
| Break type (F/R): | drum/drum optional: disc/disc |
| Front hanging: | single arm-swing |
| Rear hanging: | integral |
| Dimensions | |
| Product dimensions : | 1,850 x 1,030 x 1,130mm |
| Carton dimensions: | 1,970 x 1,110 x 880mm |
| Wheelbase: | 1,160mm |
| Height of seats: | 820mm |
| Dry weight: | 230kg |
| Load capacity: | 165kg |
| Climbing degree: | ≥25° |
| Min. turning radius: | 2,900mm |
| Max. number of riders: | 1 |
| Others | |
| Conveyance: | Qty/20' GP: 12 units |
| Qty/40' GP: 24 units | |
| Qty/40' HQ: 36 units | |
| color: | red/yellow/blue/green/camouflage |
| Payment Terms: | L/C at sight or T/T |
| Delivery Time: | 35 days upon your advance payment or L/C |
