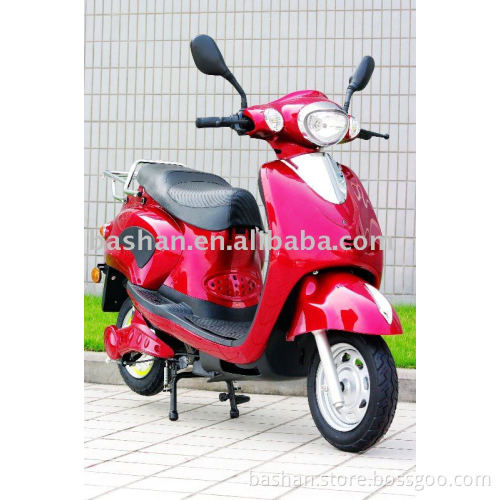

EEC Electric Motorcycle

Specifications EEC Electric Motorcycle

Item No. BS-NYM1

Motor: 500W 48V DC brushless

Speed:40KM/H

Mileage: 60KM

Item name: EEC Electric Motorcycle Item NO. BS-NYM1   PARAMETER

Model	BS-NYM	Rated output power (W)	500w
Motor Type	Brushless DC motor	Rated voltage (V)	48v
Dimension(length x width x high) mm	1800 x 680 x 1110	Rated capacity of the lead acid cell (Ah)	20Ah
Weight of the bicycle(Kg)	100Kg	Charging time of the cell (h)	6~8Hrs
Load (Kg)	120-150Kg	Under-voltage protection for the controller (V)	42±1.5V
Max speed (Km)	40Km/h	Current limiting protection (A)	28±1A
Distance per charge (Km)	60Kms	Rated rotation speed (r/min)	580±10
Wheel  base(mm)±20	1250	Rated torque (N.m)	17N.m
Tire specification (inches)	front 3.0''*10  rear3.0''*10	Climbing ability (°)	10-18° Degrees
Energy consumption per hundred kilometers (Kw/h)	< 0.5	Max noise (dB)	< 60dB
		Rated voltage of the motor (V)	48v
40HQ(CKD)	140PIC	FOB SHANGHAI PRICE(USD)	415 USD

    SIR/MADAM,     please allow me to introduce my company to you.          Bashan Group  is a multi-regional and the ownership of shareholding corporation dealing with the designing and production of motorcycles, electric bikes ,ATV, tricycles.        Bashan has passed ISO9001:2000 certification, the brand motorcycle have got E-mark, EPA ,DOT and ADR certification and has made over 100 inventions and patents.      The motorcycle production quantity is 500,000-600,000 pieces per year, and exported to more than 30 countries over the world.
