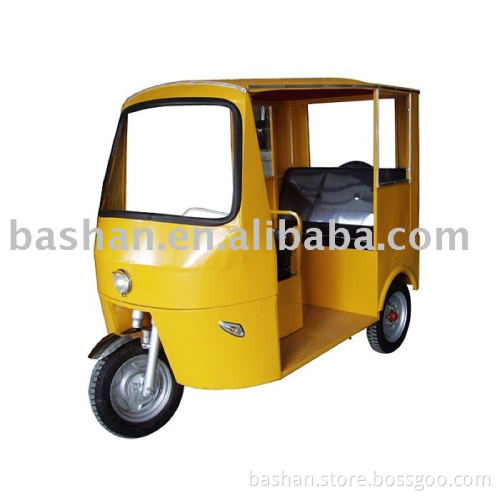

Electric Three Wheeler

Specifications Electric Three Wheeler

Model: BS-GG3XF

Moter:800W 48V Speed: 40-45 KM/H

All those parameter can be change as you meets

Item Name:Electric Three Wheeler Item NO. BS-GG3XF   PARAMETER:

Model	JK-GG3XF	Rated voltage (V)	48v
Motor Type	Series excitation	Charging time  (h)	4-8Hrs
brake mode	drum brake	charging voltage	AC 110V-230V
transmission	chain drive	Climbing ability (°)	9 degree
Dimension(length x width x high) mm	2450×1100×1730mm	Rated voltage of the motor (V)	48v
Weight of the bicycle(Kg)	215kg（without battery）	passenger quantity	3 passengers
Load (Kg)	300KG	Tire specification (inches)	front 4.0-12、rear4.0-12
Max speed (Km)	≤35km/h	battery type	48v120ah
Distance per charge (Km)	110KM	FOB SHANGHAI(without battery)
40HQ container LOADING QTY(CKD)	40 sets by CKD condition	battery 12V120AH(normal brand)
		36V 100AH(Normal brand)
		48V 120AH(Normal brand)







SIR/MADAM, please allow to introduce our company to kyou,

Bashan Group  is a multi-regional and the ownership of shareholding corporation dealing with the designing and production of motorcycles, electric bikes ,ATV, tricycles.



     Bashan has passed ISO9001:2000 certification, the brand motorcycle have got E-mark, EPA ,DOT and ADR certification and has made over 100 inventions and patents.

     The motorcycle production quantity is 500,000-600,000 pieces per year, and exported to more than 30 countries over the world.







Model	BS-HBTX	Rated output power (W)	60V/1000W
Motor Type	DC series excitation	Rated voltage (V)	AC90-120V,50/60HZ,AC210-240V,50/60HZ
brake mode	drum brake	Charging time  (h)	8-12Hrs
transmission	chain drive	charging voltage	220V-240V
Dimension (length x width x high) mm	2900*1060*1850	shocker	NORMAL SHOCK
Weight of the bicycle(Kg)	394KG	Climbing ability (°)	20 degree
Load (Kg)	≤450kg	Rated voltage of the motor (V)	48v
Max speed (Km)	≤40-45km	passenger quantity	2-3 passengers
Distance per charge (Km)	≤130km	Tire specification (inches)	3.25-16   4.00-12
		battery type	5pcs of lead acid battery 12V/120AH
40HQ container LOADING QTY	22pcs/20"GP,46pcs/40"HQ	FOB SHANGHAI (without battery)
		battery 12V120AH(normal brand)
		Total (Normal brand)
		Leike battery
		Total (Leike A+B  battery)
		36V 100AH(Normal brand)
