TCP/IP USB Card Reader Fingerprint Access Control

Introduction

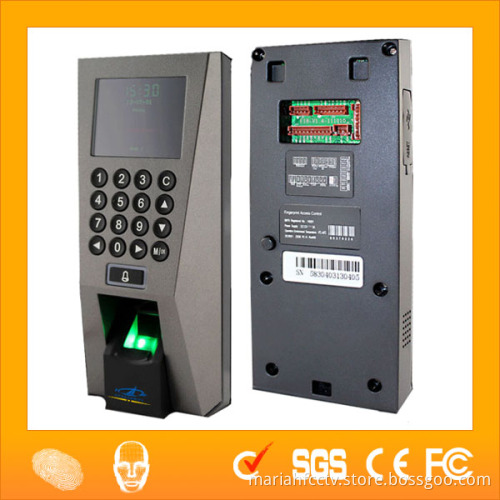

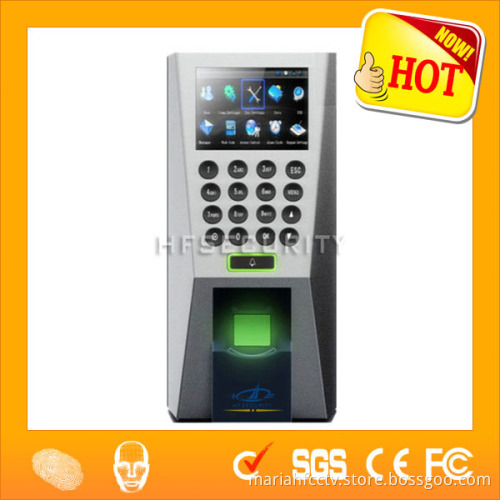

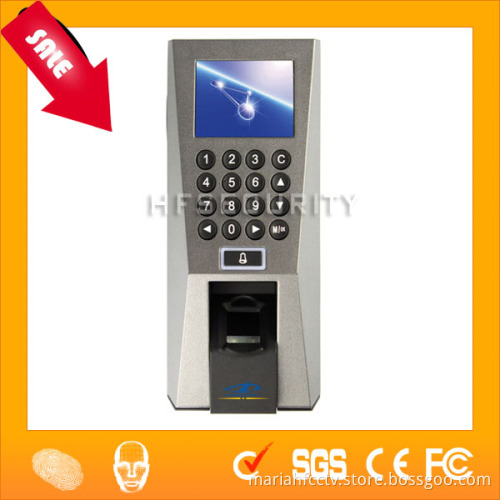

F18 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The F18 features the fastest commercial-based fingerprint matching algorithm and HF high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. All the operation can be done on the TFT-LCD. The fingerprint image will display on the screen . That will guide the user to put the finger on to proper position and increase the recognition rate.

TCP/IP and RS485 are available that the device can be used in different network.

Descritption

．Fingerprint reader with durable and highly accurate HF optical sensor

．1 touch a-second user recognition

．Stores 1,500 templates, 30,000 transactions

．Reads Fingerprint and/or Card

．Optional integrated smart card reader

．Built-in Serial and Ethernet ports

．Tamper-proofs switch and alarm outputs

．Request-to-exit and alarm contacts

．Audio-Visual indications for acceptance and rejection of valid/invalid fingers

Specification

Fingerprint Capacity 1500 templates

Transaction Capacity 30,000

Sensor HF Optical Sensor

Algorithm Version HF Finger v10.0

Communication RS232/485, TCP/IP, USB-host

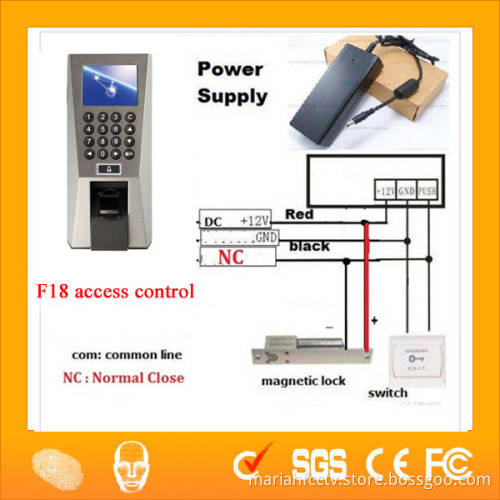

Access Control Interface for 3rd party electric lock, door sensor, exit button, alarm, Door Bell

Wiegand Signal Output and Input

Display TFT LCD Screen

Standard function Webserver, DLST

Optional function ID card, IC card

Power Supply 12V DC

Operating Temperature 0 ℃- 45 ℃

Operating Humidity 20%-80%
