Lower Price Optical Sensor Fingerprint Scanner Module

Introduction

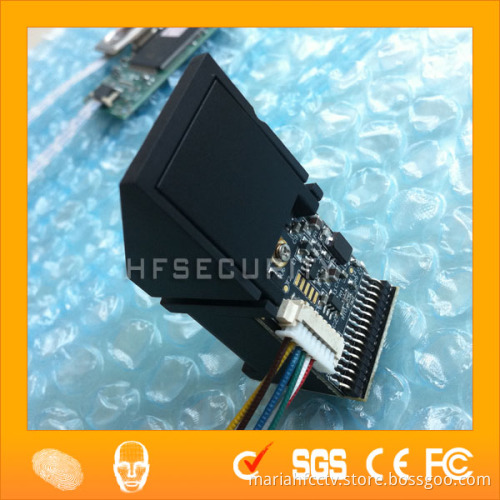

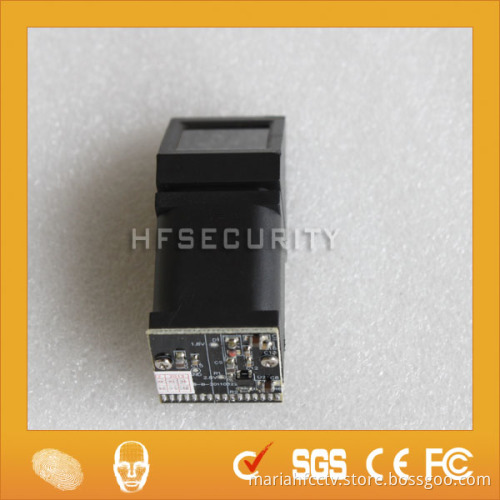

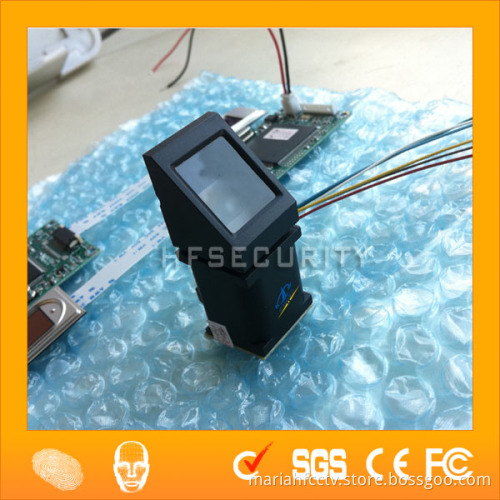

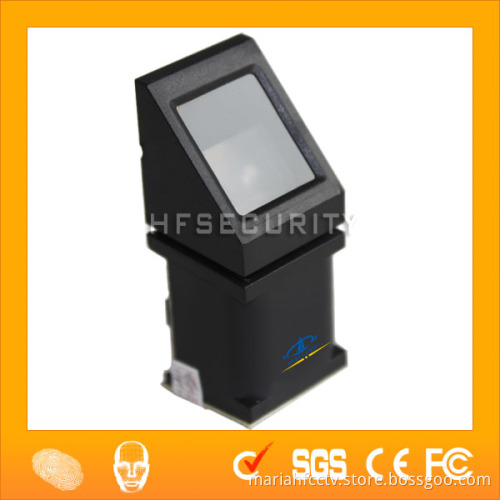

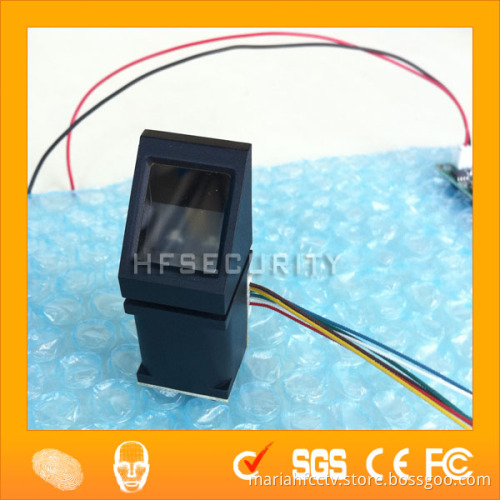

EM405 integrated fingerprint verification module is the latest release of Huifan Technology Co.,Ltd. It consists of optical fingerprint sensor, high performance DSP processor and Flash. It boasts of functions such as fingerprint enrollment, fingerprint deletion, fingerprint verification, fingerprint upload, fingerprint download.

Features

Strong Functions

Independently conduct the functions of fingerprint enrollment, image processing, minutiae extraction, templates storage, fingerprint verification (1:1) or fingerprint searching (1:N) under the command of HOST( PC or MCU).

Self-proprietary Intellectual Property

Optical fingerprint collection device, module hardware and fingerprint algorithm are all self developed by Miaxis.

High Adaptation to Fingerprints

When reading fingerprint images, it has self-adaptive parameter adjustment mechanism, which improves imaging quality for both dry and wet fingers. It can be applied to wider public.

Low Cost

Module adopts Miaxis` optic fingerprint collection device, which dramatically lowers the overall cost.

Algorithm with Excellent Performance

EM405 module algorithm is specially designed according to the image generation theory of the optic fingerprint collection device. It has excellent correction & tolerance to deformed and poor-quality fingerprint.

Easy to Use and Expand

User does not have to have professional know-how in fingerprint verification. User can easily develop powerful fingerprint verification application systems based on the rich collection of controlling command provided by SM630 module. All the commands are simple, practical and easy for development.

Low Power Consumption

Operation current <80mA, especially good for battery power occasions.

Integrated Design

Fingerprint processing components and fingerprint collection components are integrated in the same module. The size is small. And there are only 4 cables connecting with HOST, much easier for installation and use.

Perfect Technical Support

HF&CCTV is the leading company in the fingerprint verification industry. It has an excellent customer service team ready to offer powerful technical support in user development.

Specification

Item Parameter

Sensor Optical fingerprint sensor

Identification Time ＜250ms

Resolution 5000DPI

Fingerprint Capacity 768 templates

FRR 0.001%

FAR 0.00001%

Working Current <80mA

Standard Port TTL

Power 4.3V~6V

Temperature/Humidity -10℃~50℃/45%RH~85%RH (no dew)

Size 60.0×21×25mm (L*W*H)
